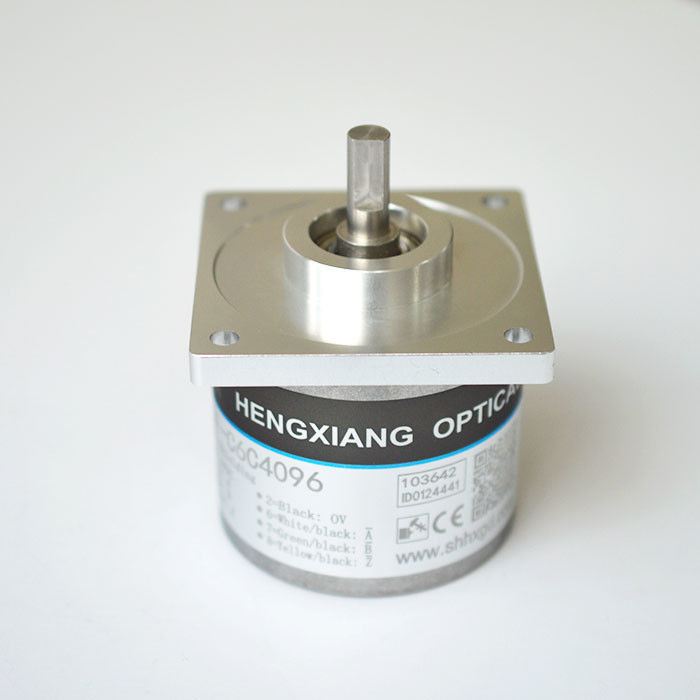

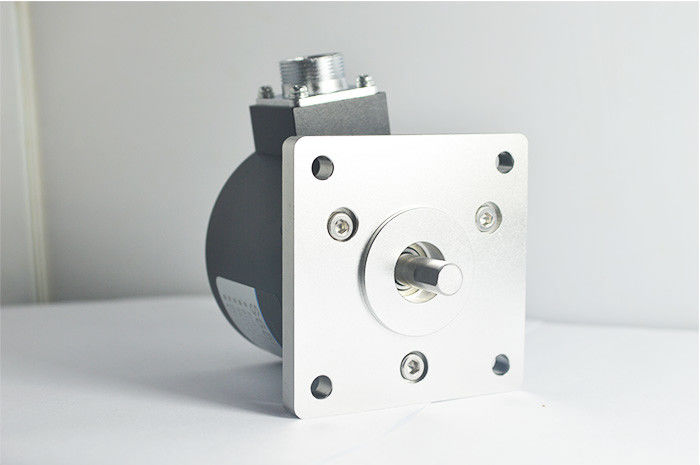

ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket

ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket

  • ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket
  • ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket
ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket
Product Details:
Place of Origin: Shanghai, China
Certification: CE,ISO9001
Model Number: S65F
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Protection: IP50; IP65 Cable Outlet: Radial Cable/ Radial Socket
Output Phase: A, B, Z Revolution: Up To 23040
Model Selection: Solid Shaft Sensing Basic: Photoeletric
High Light:

Solid Shaft Optical Rotary Encoders


IP65 Optical Rotary Encoders


Radial socket waterproof rotary encoder

S65F ABZ 3Phase Solid Shaft Encoder Incremental Encoder for Office for Automation

ItemsBasic parameters
External dimensionsExternal diameter: 65mm,Thickness: 56mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phasePhase A,B,Z or A- B- Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side with metal sleeve
Socket out from side
 NPN/PNP(Open Collector Output)
 Voltage output
Output modePush-pull output
 line drive (26LS31) TTL
 line drive(DC8-30V) HTL
Environmental temperatureOperating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanityOperating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
require, but it need payment individually)
packageCarton box
Net weightAbout 370g (with package)

ABZ 3 Phase Solid Shaft Waterproof Optical Rotary Encoders Radial Socket 0

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
