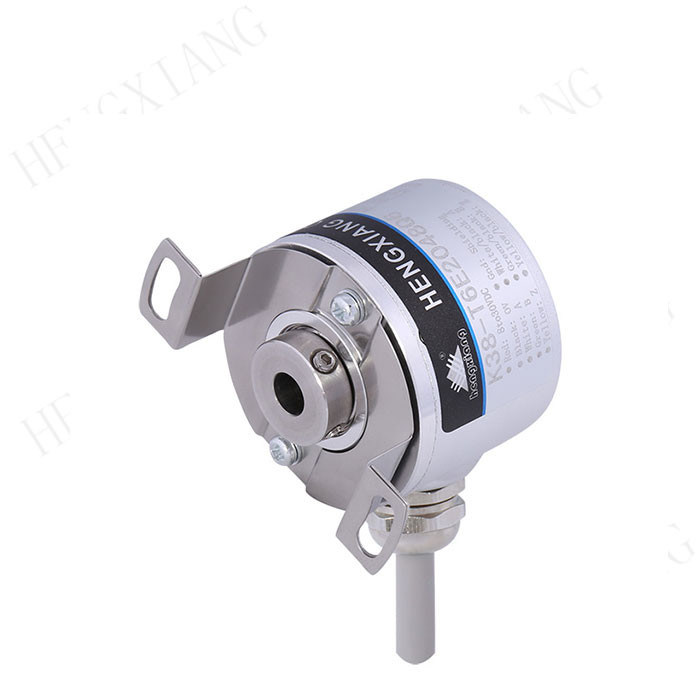

E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder

E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder

  • E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder
  • E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder
  • E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder
  • E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder
E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: 1024 Ppr Encoder E40h8-1024-3-t-24 opt ical Rotary Encoder high quality incremetal encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
External diameter: 38mm Thickness: 38mm
Installation Dimension: R23.5mm(spring Plate 38T45) Hollow Shaft Type: Blind Hole ; Through Hole
Hollow Shaft Diameter: 5mm,6mm,6.35mm;8mm Consumption Current: 100mA Max
Shaft Load: Radiel: 40N; Axial:20N Insulation Resistance: Insulation Resistance
Mark To Space Ratio : 45% To 55% Top Response Frequency: 300kHz Max
Shell Material: Die Cast Aluminum Bearing Life: 1.5x109 Revs At Rated Load(100000hrs At 2500RPM)
High Light:

Thick 38mm 1024 Pulse Encoder

,

R23.5mm 1024 Pulse Encoder

,

Incremental 1024 Pulse Encoder

1024 Ppr Encoder E40h8-1024-3-t-24 opt ical Rotary Encoder high quality incremetal encoder



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



K38 part number for ordering

K38-T6C1000

K38-T3N1024B6.35

K38-T3F300Q6.35

K38-Q6C250

K38-Q6E360

K38-T3PH512

K38-T2F50B6

K38-Q1V360B8

K38-T2F1200

K38-Q6E2048



Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 38mm
Installation dimension R23.5mm(spring plate 38T45)
Hollow shaft type blind hole ; through hole
Hollow shaft diameter 5mm,6mm,6.35mm;8mm
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radiel: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000r rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top response Frequency 300kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
GND not connect to encoder
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65

E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder 0E40h8-1024-3-T-24 Optical Rotary Encoder Incremental 1024 Pulse Encoder 1

About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001:2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



More information

If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
