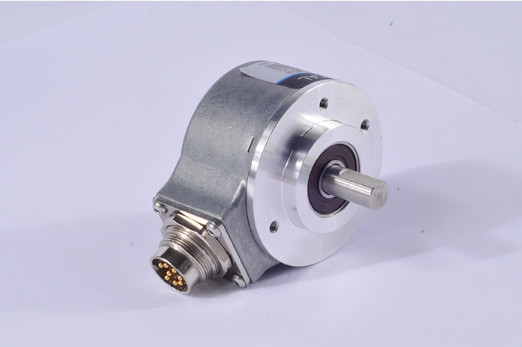

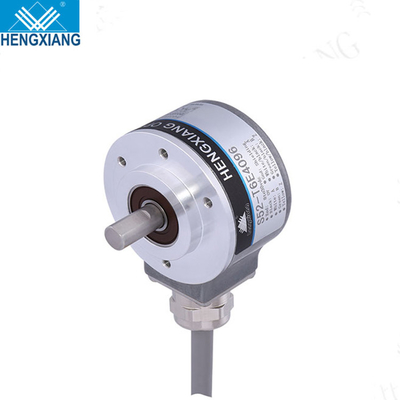

S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution

S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution

S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution
S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution
S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S52
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Encoder Type: Incremental Encoder
External diameter: 51mm Thickness: 29mm
Installation Dimension: Diameter 40mm Diameter 40mm: 8mm(D Shape)
Resolution : 100-23040;1000-8192/4/6/8 Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Outlettype: Cable/socket Out From Back ;Cable Out From Back With Socket Output mode: NPN&PNP/Voltage/Push-pull/Difference Output(TTL,HTL,RS422)
Protection grade: IP50 ; IP65 Net weight : About 300g (with Package)
High Light:

51mm Incremental Optical Encoder

,

External Digital Shaft Encoder

,

Incremental Dual Shaft Encoder

S52 Sturdy durable solid shaft 8mm seiko high precision encoder external 51mm resolution up to 23040ppr





Product Description






一,Characteristics of S52



Product Name S52 heavy duty encoder external diameter 51mm solid shaft 8mm HTL output customizable
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 29mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution

1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;

4096;5000;5760;8192;10000;11520;16384;20000;23040

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;

2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8

Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
  Socket out from back
  Cable out from back with socket
Output mode

NPN&PNP

Voltage output

Push-pull output

Difference output(TTL,HTL,RS422)

Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder



S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution 0

S52 Heavy Duty Solid Shaft Encoder External 51mm 23040ppr Resolution 1







二,FAQ



Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements.



三,Why choose us?



HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



四,Production date



1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



五,Payment terms:



1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready
