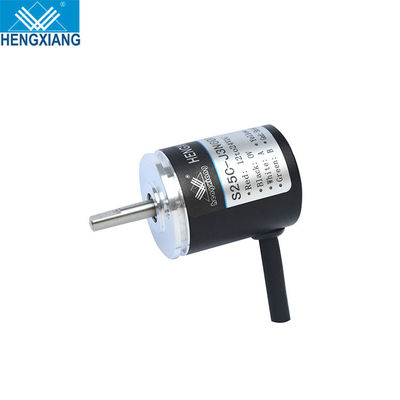

S25C 36ppr Solid Shaft Encoder Incremental Side Cable

  • S25C 36ppr Solid Shaft Encoder Incremental Side Cable
  • S25C 36ppr Solid Shaft Encoder Incremental Side Cable
  • S25C 36ppr Solid Shaft Encoder Incremental Side Cable
  • S25C 36ppr Solid Shaft Encoder Incremental Side Cable
  • S25C 36ppr Solid Shaft Encoder Incremental Side Cable
Get Price Contact Now

S25C 36ppr small encoder incremental encoder supplier resolution up to 2500p/r encoder





Quick Details
Model Number:
Incremental type
Type:
ROTARY ENCODER
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Usage:
Optical encoder
Theory:
Optical encoder
Output:
Other
Description:
S25C encoder
Brand:
HENGXIANG
Encoder type:
Incremental encoder
External diameter:
25mm
Solid shaft diameter:
4mm(D shape)
Resolution:
36-2500 ppr
Output phase:
Phase A,B,Z,A-,B-,Z-
Outlettype:
Cable out from side;back
Output mode:
NPN&PNP;Voltage;Push-pull;Difference output(TTL,HTL,RS422)
Protection grade:
IP50
Net weight:
60g (with package)
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package for S25C
Port
SHANGHAI
Video Description
00:00

00:45

Product Description
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 0

  • Diameter 25mm shaft 4mm type incremental rotary encoder
    Why choose "HENGXIANG" encpder?1.HENGXIANG brand--The trustworthy partner
    2.CE approved--advantaged product quality;
    3.Fast delivery--strong stock product ability;
    4.Factory directly provide a competitive price;
    5.One-stop service--for your efficient purchasing experience;
    6.OEM design accepted--customized design, your own brand accepted.


S25C 36ppr Solid Shaft Encoder Incremental Side Cable 1
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 2
Items
Basic parameters
External dimensions
External diameter: 25mm
Thickness: 32mm
Solid shaft diameter: 4mm(D shape)
Encoder type
Incremental encoder
Resolution
36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase
Phase A,B,Z,A-,B-,Z-
Supply voltage
DC5V; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL)
Environmental temperature
Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity
Operating and storage: 35~85%RH (non-condensing)
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
100mA Max
Allowable ripple
≤3%rms
Shaft Load
Radial: 10N; Axial:5N
GND
not connect to encoder
Slew Speed
≤5000rpm
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
Mark to Space ratio
45% to 55%
Top Resonse Frequency
100kHz(OC);200KHz(TTL);300KHzHTL)
Shell Material
Alumlnlum alloy
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material
Stainless steel
Vibration(endure)
Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure)
49/m/s2,11ms three times for X,Y,Z direction individually
package
Carton box
Net weight
About 60g
Certification
CE
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 3
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 4
Product Usage
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 5
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 6
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 7
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 8
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 9
S25C 36ppr Solid Shaft Encoder Incremental Side Cable 10
