36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S25
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
External diameter 25mm Solid Shaft diameter 4mm(D Shape)
Resolution  36;50;60;100;200;250;300;360; 36-2500 Ppr Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V & 8-30V Outlet Type Cable Out From Side/back
Output mode NPN&PNP/Voltage/Push-pull/TTL,HTL,RS422 Protection grade IP50
High Light

ABZ Mini Rotary Encoder

,

Solid Mini Rotary Encoder

,

Mini Incremental Rotary Encoder

Leave a Message
Product Description

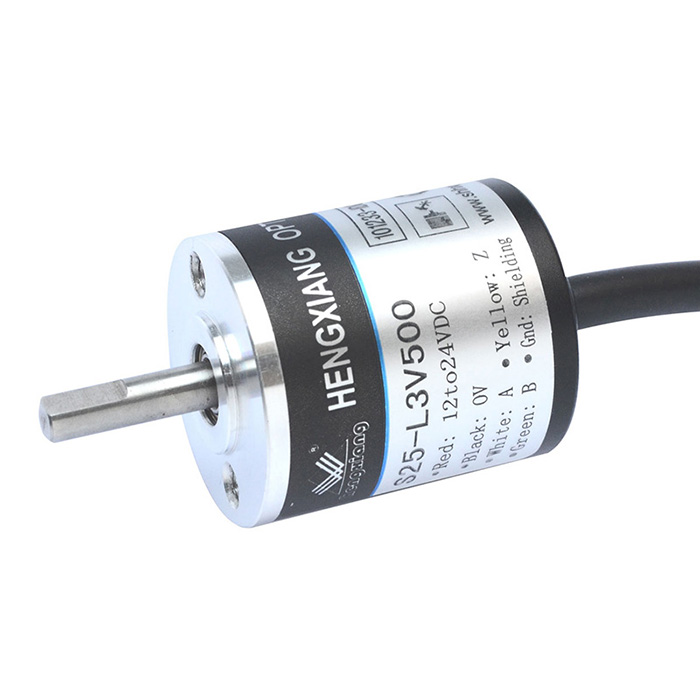

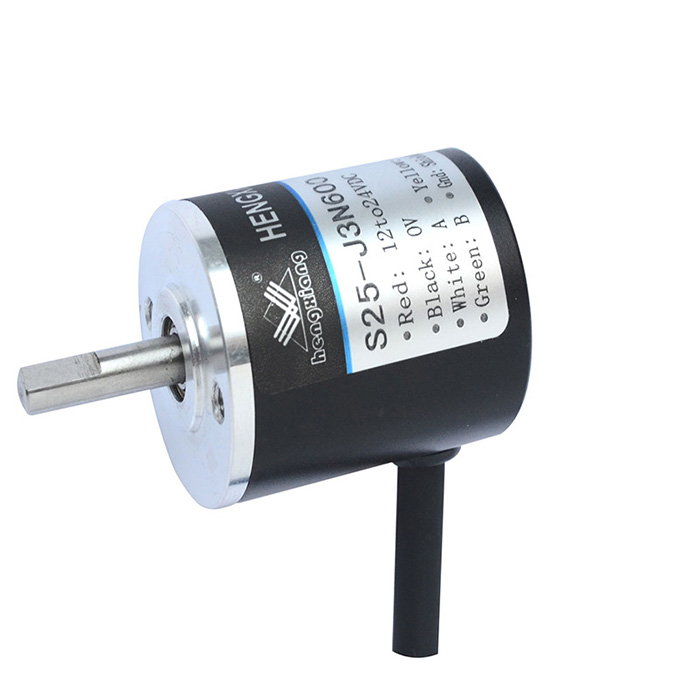

36-2500 Ppr Mini rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V



A rotary encoder, also called a optical encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.

There are two main types: absolute and incremental (relative).

The output of absolute encoders indicates the current position of the shaft, making them angle transducers.

The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance and position.



Application

Rotary encoders are used in many applications that require precise shaft unlimited rotation—including industrial controls, robotics, special purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs).



Basic Parameters

Items Basic parameters

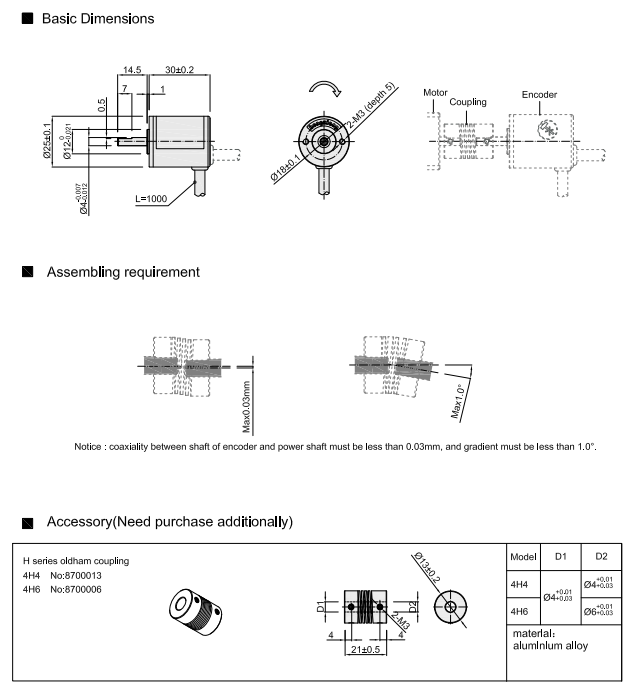

External dimensions External diameter: 25mm
Thickness: 30mm
Solid shaft diameter: 4mm(D shape)
Encoder type Incremental encoder
Resolution 36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by require, but it need payment individually)
Consumption current 100mA Max
Allowable ripple ≤3%rms
Shaft Load Radial: 10N; Axial:5N
GND not connect to encoder
Slew Speed 5000rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top Resonse Frequency 100kHz Max
Shell Material Dia cast aluminium
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 49/m/s2,11ms three times for X,Y,Z direction individually
package Carton box
Net weight 50g (with package)
Certification CE



36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 0
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 1

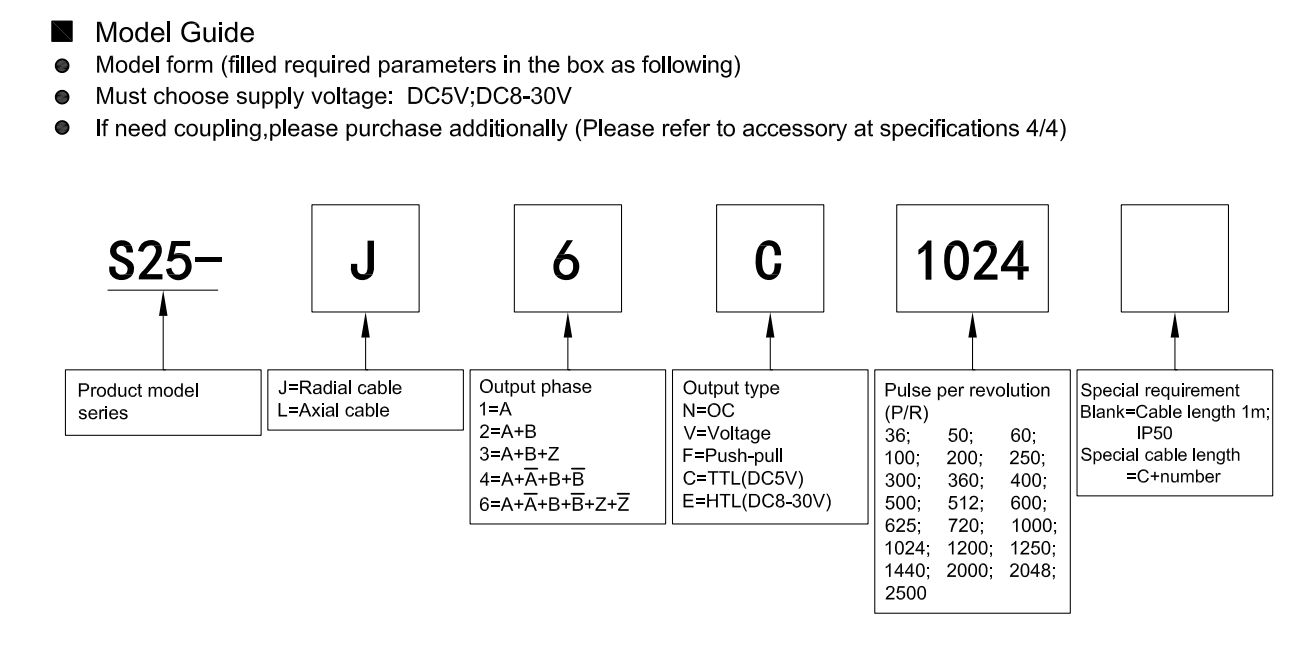

Model selection:
