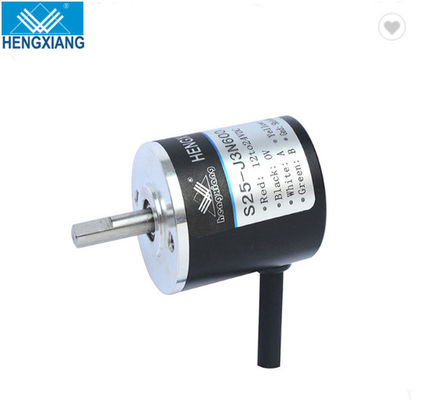

36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V

36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V

Products - Solid Shaft Encoder
  • High Light

    ABZ Mini Rotary Encoder

    ,

    Solid Mini Rotary Encoder

    ,

    Mini Incremental Rotary Encoder

  • External diameter
    25mm
  • Solid Shaft diameter
    4mm(D Shape)
  • Resolution
    36;50;60;100;200;250;300;360; 36-2500 Ppr
  • Output phase
    Phase A,B,Z,A-,B-,Z-
  • Supply voltage
    DC5V & 8-30V
  • Outlet Type
    Cable Out From Side/back
  • Output mode
    NPN&PNP/Voltage/Push-pull/TTL,HTL,RS422
  • Protection grade
    IP50
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S25
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V

  • 36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V
  • 36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V
  • 36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V
Get Price Contact Now

36-2500 Ppr Mini rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V



A rotary encoder, also called a optical encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.

There are two main types: absolute and incremental (relative).

The output of absolute encoders indicates the current position of the shaft, making them angle transducers.

The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance and position.



Application

Rotary encoders are used in many applications that require precise shaft unlimited rotation—including industrial controls, robotics, special purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs).



Basic Parameters

Items Basic parameters
External dimensions External diameter: 25mm
Thickness: 30mm
Solid shaft diameter: 4mm(D shape)
Encoder type Incremental encoder
Resolution 36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by require, but it need payment individually)
Consumption current 100mA Max
Allowable ripple ≤3%rms
Shaft Load Radial: 10N; Axial:5N
GND not connect to encoder
Slew Speed 5000rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top Resonse Frequency 100kHz Max
Shell Material Dia cast aluminium
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 49/m/s2,11ms three times for X,Y,Z direction individually
package Carton box
Net weight 50g (with package)
Certification CE



36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 0
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 1

Model selection:

36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 2
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 3
Product Usage
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 4
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 5
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a
professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and
electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary
encoders now have 10 series and over 100 sorts, both popularly sale around the world.

Our rotary encoders are widely used for
automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile
machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing
machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 6
"HengXia
Our Certifications
36 - 2500 Ppr Mini Rotary Encoder 50 Pulse ABZ Phases Solid Shaft Encoder IP50 DC5V 7
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
