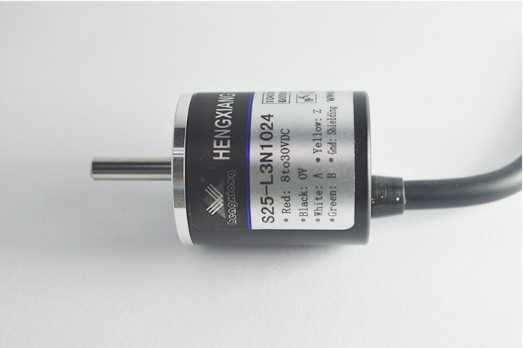

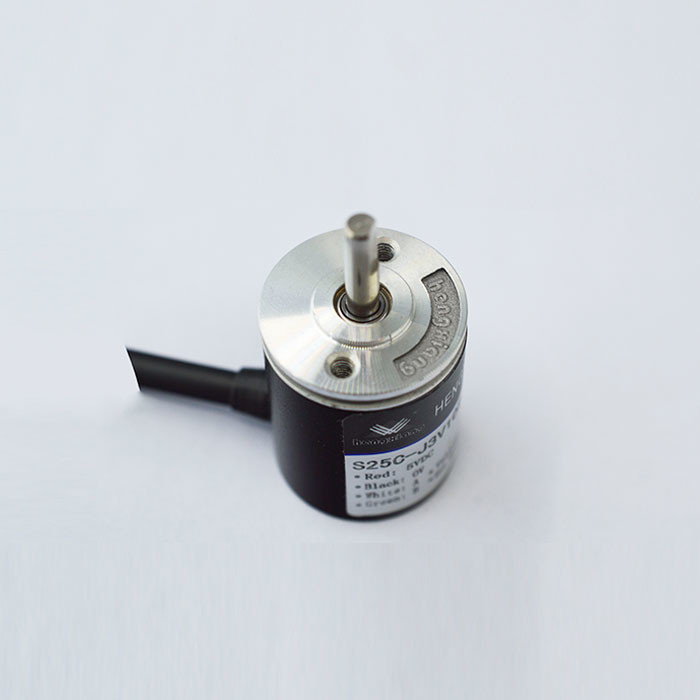

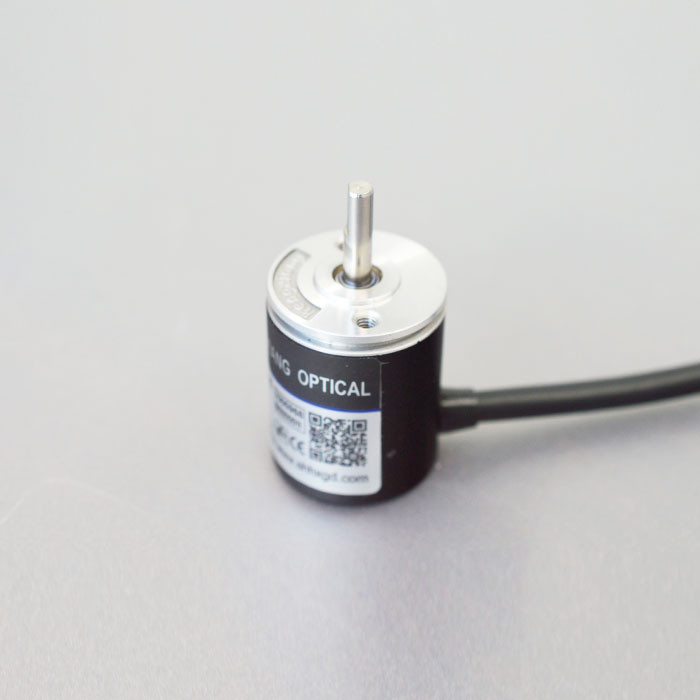

2500 Ppr Small Incremental Encoder 50 Pulse ABZ Phases Solid Shaft Encoder

2500 Ppr Small Incremental Encoder 50 Pulse ABZ Phases Solid Shaft Encoder

A  Solid Shaft Encoder , also called a rotary encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.

There are two main types: absolute and incremental (relative).

The output of absolute encoders indicates the current position of the shaft, making them angle transducers.

The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance and position.

Output mode

NPN&PNP;Voltage output;Push-pull output;Difference output(TTL,HTL,RS422)

Application

Rotary encoders are used in many applications that require precise shaft unlimited rotation—including industrial controls, robotics, special purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs),controlled stress rheometers, and rotating radar platforms.

Basic Parameters



Items	Basic parameters
External dimensions	External diameter: 25mm
	Thickness: 30mm
	Solid shaft diameter: 4mm(D shape)
Encoder type	Incremental encoder
Resolution	36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase	Phase A,B,Z,A-,B-,Z-
Supply voltage	DC5V; DC8-30V
Outlet type	Cable out from side
	Cable out from back
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output(TTL,HTL,RS422)
Environmental temperature	Operating temperature: -20~+80° (Non icing)
	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by require, but it need payment individually)
Consumption current	100mA Max
Allowable ripple	≤3%rms
Shaft Load	Radial: 10N; Axial:5N
GND	not connect to encoder
Slew Speed	5000rpm
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
Mark to Space ratio	45% to 55%
Top Resonse Frequency	100kHz Max
Shell Material	Dia cast aluminium
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material	Stainless steel
Vibration(endure)	Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure)	49/m/s2,11ms three times for X,Y,Z direction individually
package	Carton box
Net weight	50g (with package)
Certification	CE



Why choose "HENGXIANG" encoder?



1. HENGXIANG brand--The trustworthy partner
2. CE approved--advantaged product quality;
3. Fast delivery--strong stock product ability;
4. Factory directly provide a competitive price;
5. One-stop service--for your efficient purchasing experience;
6. OEM design accepted--customized design, your own brand accepted.

•

Model selection:

Product Usage

Packing&Shipping

Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.

Company Introduction

ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a
professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and
electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary
encoders now have 10 series and over 100 sorts, both popularly sale around the world.



Our rotary encoders are widely used for
automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile
machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing
machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
