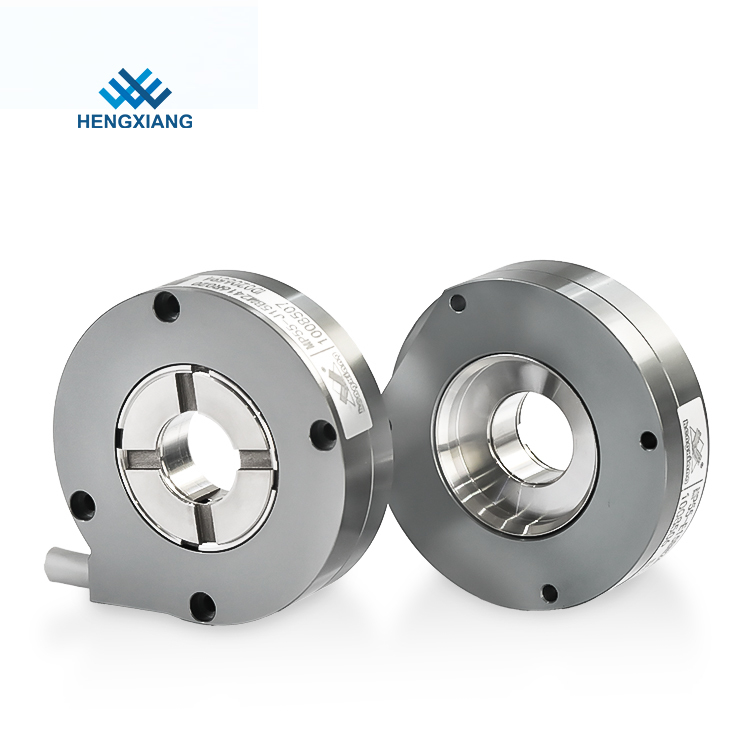

Though Hole Multi Turn Absolute Encoder MP55 24 16bits Servo Motor Robot

Though Hole Multi Turn Absolute Encoder MP55 24 16bits Servo Motor Robot

  • High Light

    Multi Turn Absolute Encoder


    Absolute Through Hole Encoder


    Robot Hollow Shaft Absolute Encoder

  • External diameter
  • Thickness
  • Installation Dimension
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14mm; 15mm; 19mm; 20mm; 24mm
  • Resolution
    Multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
  • Communication
  • Electrical Connection
    Radial Socket
  • Output mode
  • Protection
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Though Hole Multi Turn Absolute Encoder MP55 24 16bits Servo Motor Robot

Though hole multi turn absolute encoder MP55 24+16bits servo motor robot



  • Application

    Servo motor, robot and other industrial automations.



    MP55 has mechanical soft connection design for external diameter, high precision photoelectric absolute encoder, which can solve the installation problem in limited space with low requirement for mounting shaft.

    The mounting size of MP55 is 49.2mm, and both are mounted with 4pcs of M2.5*12 bolts. You can choose the right product according to your installation needs.


☆ The parameters of MP55

Items Basic parameters
Brand Hengxiang
Encoder type Absolute encoder
External diameter 55mm
Thickness 14.5mm
Installation dimension 49.2mm
Hollow shaft type Through hole
Hollow shaft diameter 14mm; 15mm; 19mm; 20mm; 24mm
Resolution single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface E=SM08B-GHS-TB
Communication B=BISS-C; S=SSI
Electrical connection Radial socket
Output mode M=multi-turn
Scanning principle Reflective grating code
Accuracy ±40"
Response speed Normal action: 6000min
RMS position signal noise ±2@18 bits/r
Communication clock frequency ≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time typical value: 13ms
Absolute position sampling period ≤75 ns
Allowable speed ≤32200 r/min (restricted by mechanical speed limit)
Cable Differential twisted-paired cable
Cable length 200mm-10000mm
Mechanical Connection With bearing& encircled locking shaft
Starting Torque less than 9.8×10-3 N.m
Inertial moment less than 6.5×10-6 kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed ≤6000rpm
Shell Material Aluminum
Weight about 90g
Environmental temperature Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity Operating and storage: 35~85%RH(Noncondensing)
Vibration Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock 980m/s2 11ms, three times for X,Y,Z direction individually
Protection IP50


Though Hole Multi Turn Absolute Encoder MP55 24 16bits Servo Motor Robot 0
☆ The dimensions of MP55
Though Hole Multi Turn Absolute Encoder MP55 24 16bits Servo Motor Robot 1
