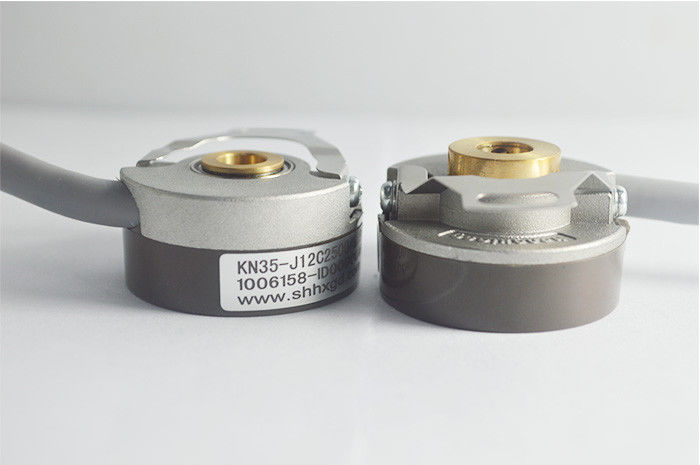

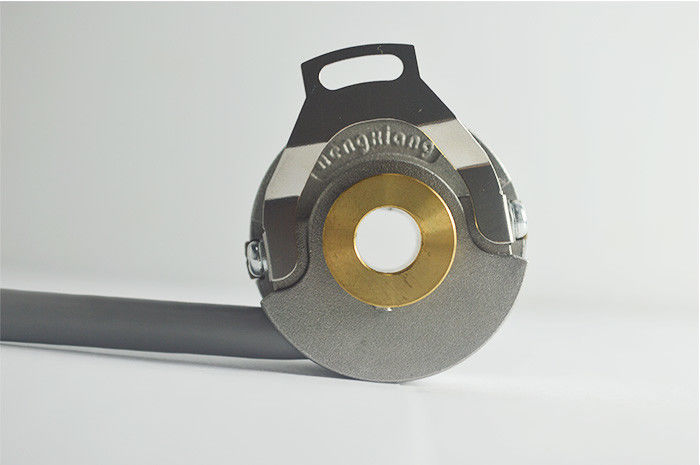

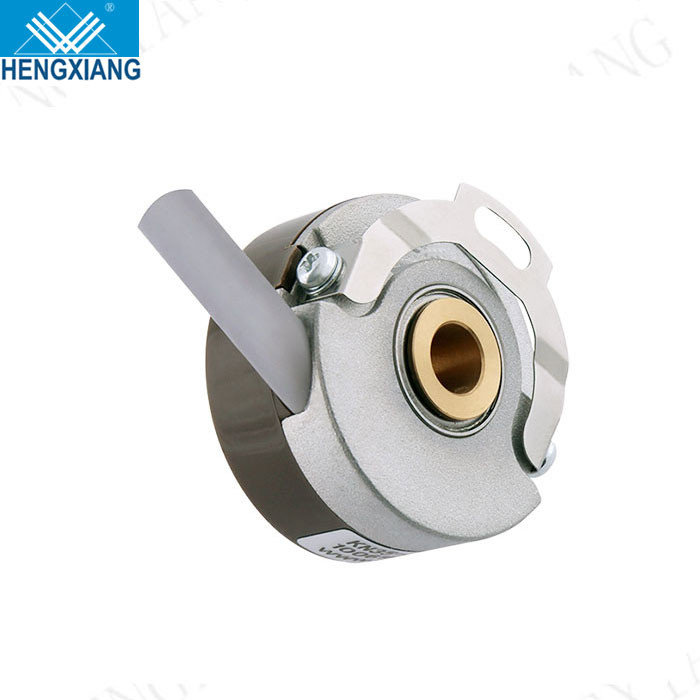

KN35 Robotic Part Ultra Thin Incremental Encoder Cnc Automation UVW Signal
-
High Light
Ultra Thin Incremental Encoder
,Robotic Part Incremental Encoder
,UVW Signal Optical Incremental Encoder
-
Encoder TypeUltra-thin Incremental Encoder
-
Shaft Type6/7/8mm (Blind Hole/Through Hole/Taper Hole)
-
ResolutionUp To 14400ppr
-
ApplicationServo Motor, Robotic Part Cnc 2022 Automation And Control Services
-
Protection GradeIP40
-
External Diameter35mm
-
Supply VoltageDC5V; DC8-30V
-
Output PhaseAB/ABZ/±AB/±ABZ/±ABZUVW
-
Output TypeOC/Voltage/Push-pull/TTL/HTL
-
Outlet TypeRadial Cable
-
Place of OriginShanghai, China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberKN35
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
KN35 Robotic Part Ultra Thin Incremental Encoder Cnc Automation UVW Signal
KN35 robotic part cnc 2022 automation and control services ultra-thin encoder decoder
1. Feature: KN35 Through/Blind/Taper shaft incremental encoder.
2. Application: Servo Motor, CNC and other industrial automation field.
3. Important parameter: UVW signal encoder, Ultra-thin, pole encoder.
Basic Paramenters
| Items | Basic parameters | |
| Encoder type | Incremental encoder | |
| Brand | HENGXIANG | |
| External diameter | 35mm | |
| Thickness | 18mm | |
| Installation dimension | R13.5mm, R14.5mm, R20mm | |
| Hollow shaft type | blind hole; through hole, taper hole | |
| Hollow shaft diameter | 6mm,7mm;8mm;10mm | |
| Resolution | 1024;2048;2500;3600;5000;7200;10000;14400 | |
| 1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6； 2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8 |
||
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- | |
| Supply voltage | DC5V ; DC8--30V | |
| Outlettype | Cable out from side | |
| Output mode | NPN/PNP(Open Collector Output) | |
| Voltage output | ||
| Push-pull output | ||
| line drive (26LS31) TTL | ||
| line drive(DC8-30V) HTL | ||
| TTL(DC5V) phase ABZ are back of phase UVW | ||
| Protection grade | IP40 | |
| Cable length | 500mm | |
| Consumption current | 100mA MAX | |
| Top response frenquency | 300KHZ | |
| Allowable ripple | ≤3%rms | |
| Load Voltage | ≤DC30V | |
| Insulation strength | AC500V 60s | |
| Insulation resistance | 10MΩ | |
| GND | not connect to encoder | |
| Mark to Space ratio | 45% to 55% | |
| starting torque | less than 5.9x 10-3 N.m | |
| Intertia moment | less than 1.5x 10-6kg.m2 | |
| Shaft load | Radial 30N; Axial 20N | |
| Slew speed | 5000RPM | |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) | |
| Environmental temperature | Operating:-20 ～+100°C；storage:-25 ～+100°C | |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually | |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually | |
| Shell Material | Dia cast aluminium | |
| Certification | CE | |
| package | Carton box | |
| Net weight | About 80g (with package) | |
We mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
