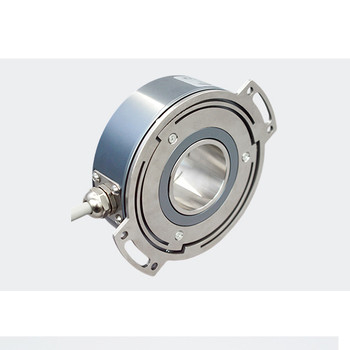

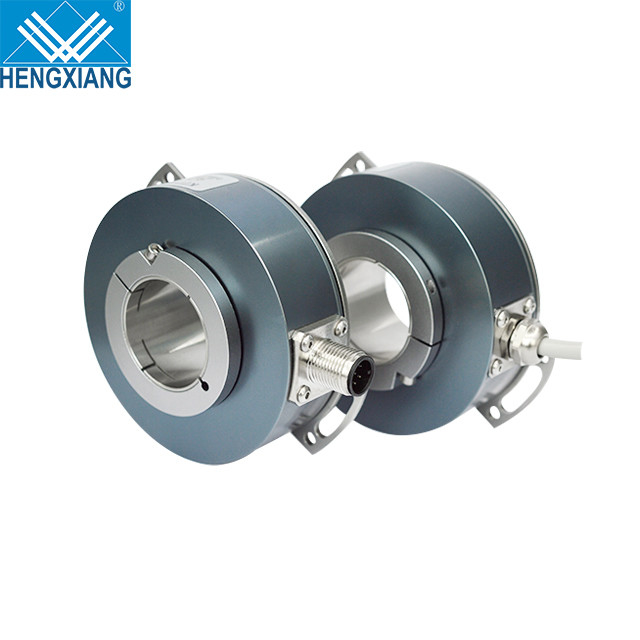

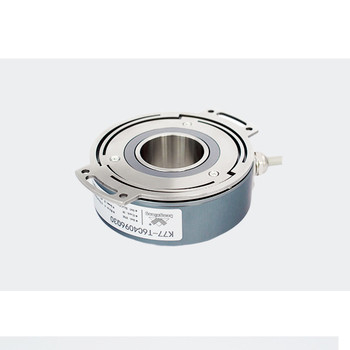

Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm

Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm

Products - Optical Rotary Encoders
  • High Light

    Hole Optical Photoelectric Rotary Encoder

    ,

    25mm Photoelectric Rotary Encoder

    ,

    Photoelectric Optical Rotary Encoders

  • Pulse
    500-10000ppr (Up To 65536ppr)
  • Protection Grade
    IP65
  • External Diameter
    77mm
  • Connection
    Radail Socket; Radial Cable
  • Shaft Diameter
    25mm; 30mm(Up To 30mm)
  • Phase
    ±ABZ
  • Output Type
    OC(NPN); Push-pull; HTL; TTL
  • Installation Size
    85mm (Spring Plate Customization Avalible)
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K77
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm

  • Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm
  • Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm
  • Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm
  • Hole Optical Photoelectric Rotary Encoder Outer Diameter 77mm Shaft 25mm
Get Price Contact Now

Hole optical photoelectric rotary encoder outer diameter shaft 77mm shaft 25mm



1. Important parameter: Resolution up to 65536ppr, high protection grade IP65, max 30mm shaft.



2. Application: Motor, CNC and other industrial automation field.



Main parameters
Items
Basic parameters
Encoder type
Incremental encoder
Brand
HENGXIANG
External diameter
77mm
Thickness
31mm
Installation dimension
R85mm(spring plate 77B85)
Hollow shaft type
through hole
Hollow shaft diameter
25mm,30mm
Resolution
500; 512; 1000; 1024; 2000; 2048; 2500;
4000; 4096; 5000; 8000; 8192; 10000ppr
Output phase
Phase A+,B+,Z+,A-,B-,Z-
Supply voltage
DC5V ; DC8-30V
Outlet type
Radial socket (M12, 8pin male connector); Radial cable
Output mode
NPN(Open Collector Output)
Push-pull output
line drive (26LS31, DC5V) TTL
line drive (26C31, DC5V) TTL
line drive (DC8-30V) HTL
Consumption current
100mA MAX
Top response frenquency
100KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 80x 10-3 N.m
Intertia moment
less than 100x 10-6kg.m2
Shaft load
Radial 70N; Axial 50N
Top REV
3000RPM ; IP65
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)
1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm
Protection grade
IP65
Cable length
1M (cable length could be added appropriately by

require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 500g (with package)
