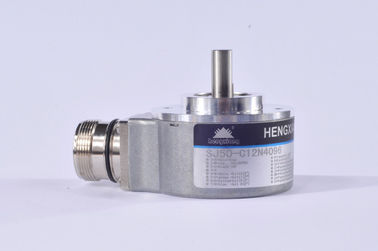

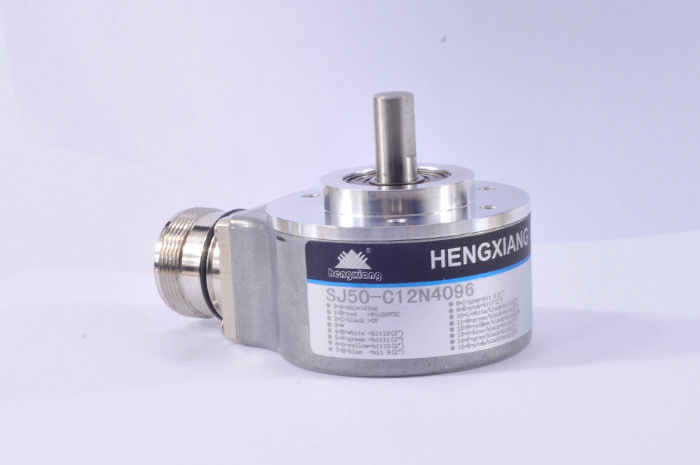

EP50S8 Solid Shaft Encoder , SJ50 Absolute Rotary Encoder Single Turn Gray Code Output

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number SJ50 position encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Encoder Type Single Turn Absolute Encoder Precision 360/(resolution X 4)
External diameter 51mm Thickness 29mm
Output Code Gray Code Top REV 3000RPM ;IP65≤2000r Rpm
Shaft Load Radial 50N; Axial 30N Cable Length 1000mm(cable With Shielding)
High Light

absolute position encoder

,

gray code encoder

Leave a Message
Product Description

EP50S8 Solid shaft SJ50 absolute rotary encoder single turn gray code output shaft 8mm



Production video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



EP50S8 Solid Shaft Encoder , SJ50 Absolute Rotary Encoder Single Turn Gray Code Output 0



Feather of SJ50 encoder

Bit(steps): 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit

Supply voltage: DC5V ; DC8-30V

Encoder type: absolute encoder

Brand: HENGXIANG

Output code: gray code

GND: not connect to encoder

Top REV: 3000RPM ;IP65≤2000 RPM



Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Product introduction for SJ50 absolute encoder

Items Basic parameters
Brand HENGXIANG
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
starting torque less than 5x 10-3N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 3000RPM ;IP65≤2000 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°C;storage:-25 ~+90°C
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Encoder type absolute encoder
External diameter 51mm



FAQ

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.
