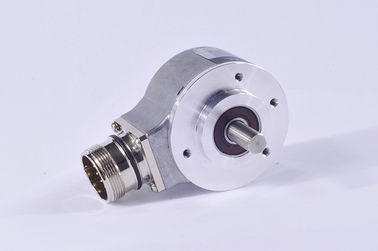

Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V

Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V

  • Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V
  • Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V
Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: SJ50 single turn encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Single Turn Absolute Encoder Precision: 360/(resolution X 4)
External diameter: 51mm Thickness: 29mm
Top Response Frequency: 100KHZ Top REV: 3000RPM ;IP65≤2000r Rpm
Shaft Load: Radial 50N; Axial 30N Shaft Material: Stainless Steel
High Light:

absolute rotary encoder

,

absolute position encoder

Solid shaft single turn SJ50 absolute encoder gray code angle output CW direction DC5V



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



Solid Shaft Single Turn Absolute Encoder SJ50 Agray Code Angle Output CW Direction DC 5V 0



Feather of SJ50 encoder

External diameter: 51mm

Consumption current: 100mA MAX

Bit(steps): 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit

Supply voltage: DC5V ; DC8-30V

Installation dimension: 40mm diameter

Top response frequency: 100KHZ

Allowable ripple: ≤3%rms

Encoder type: absolute encoder

Brand: HENGXIANG



Detail Specifications

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 51mm
Supply voltage DC5V ; DC8-30V
Outlet type Radial cable
  Radial socket
  Radial cable with plug
Count direction counterclockwise
  outside control direction
  clockwise
Interface NPN low level effective
  NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Environmental temperature Operating:-20 ~+85°C;storage:-25 ~+90°C
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Certification CE
