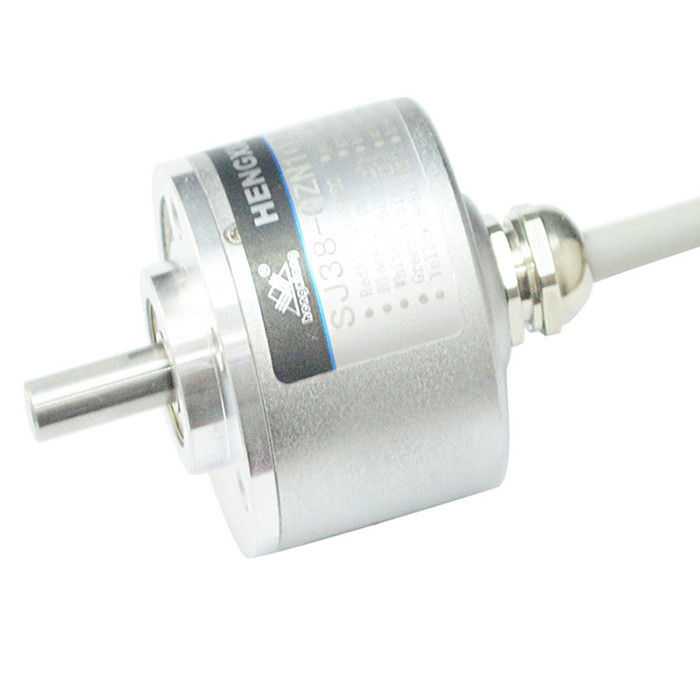

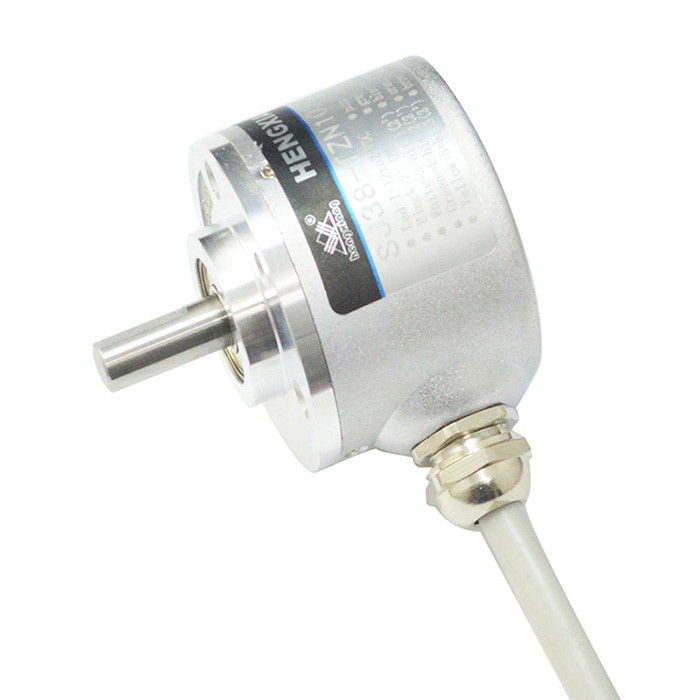

Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm

Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm

  • Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm
  • Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm
Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: SJ38 single turn encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Absolute Encoder Precision: 360/(resolution X 4)
External diameter: 38mm Thickness: 28mm
Solid Shaft diameter: 6mm D Shape Supply voltage: DC5V ; DC8-30V
Bit(steps): 5 Bit;6 Bit;7 Bit;8bit;9bit;10 Bit;11 Bit;12bit Net weight : About 130g (with Package)
High Light:

absolute rotary encoder

,

gray code encoder

Mini size SJ38 absolute rotary encoder external diameter 38mm solid shaft 6mm IP65



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



SJ38 Encoder Key Features:

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 38mm
Thickness 28mm
Installation dimension 30mm diameter
Shaft length 13mm
Solid Shaft diameter 6mm D shape
Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage DC5V ; DC8-30V
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
starting torque less than 4.4x 10-3N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 3000RPM ;IP65≤2000 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)



Mini Size Single Turn Absolute Encoder IP65 External Diameter 38mm Solid Shaft 6mm 0



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



FAQ

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
