22mm Optical Rotary Encoders

Products - Optical Rotary Encoders

High Light

22mm Optical Rotary Encoders
,
22mm incremental rotary encoder
,
58mm Optical Rotary Encoders
Name

K58 Optical Rotary Encoders
External diameter

58mm
Thickness

24mm
Output phase

Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage

DC5V ; DC8-30V
Outlet Type

Cable Out From Side
Shaft Material

Stainless Steel
Shell Material

Die Cast Aluminum
Cable Length

1000mm(cable With Shielding)
Protection grade

IP50
Place of Origin

Shanghai
Brand Name

HENGXIANG OPTICAL ENCODER
Certification

CE,ISO9001
Model Number

K58
Minimum Order Quantity

1pcs encoder to start order
Price

negotiable
Packaging Details

each 1 piece was packed into single carton box
Delivery Time

3-5 working days for sample order, 7-15 working days for mass order
Payment Terms

D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability

100K pieces per year

22mm Optical Rotary Encoders

button button

Get Price Contact Now

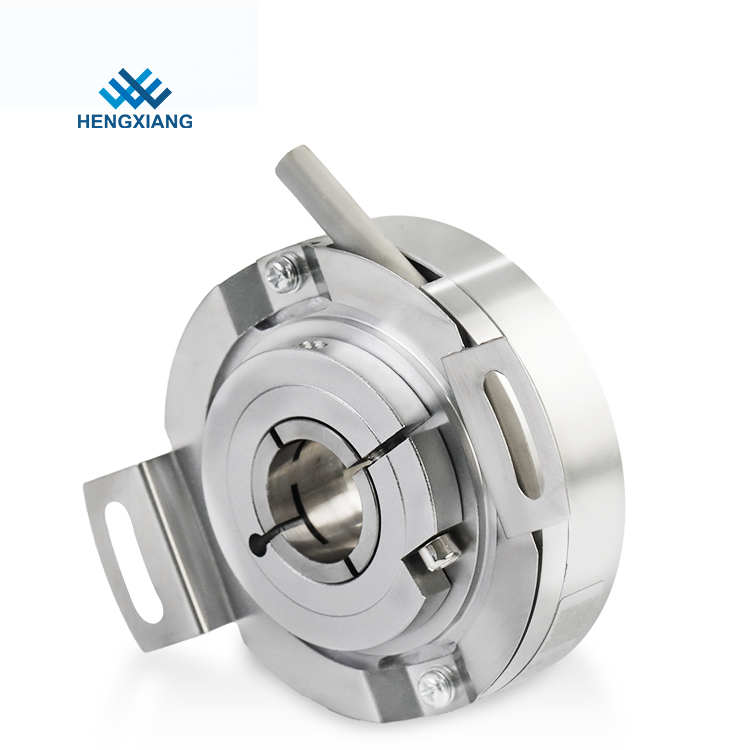

Incremental rotary encoder K58 through hole encoder diameter of shaft 22mm for motor

Some Related K58 encoder model number

K58-J6C1024BQ16 DC5V

K58-J6E2048BQ15 DC8-30V

K58-J12C2500/8BQ18 DC5V

K58-J12C2048/4BQ20 DC5V

K58-J6C4096B16 DC4.5V

K58-J3F1000B22 DC8-30V

K58-J3N2000B18 DC5-12V

K58-J6C28800B22 DC5V

K58-J6E14400BQ20 DC12-24V

K58-J12C2000/4BQ18 DC5V

K58-J12E1000/4BQ16 DC8-30V

K58-J12C2500/6BQ22 DC5V

Encoder Parameter table

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	58mm
Thickness	24mm
Resolution	1000;1024;1200;1250;1440;2000;2048;2500;4096;5000;
	7200;14400；28800
	1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
	2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;
	5000/4;5000/6;/5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8-30V
Outlet type	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Sock(endure)	980m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	die cast aluminum
Cable length	1000mm(cable with shielding)
Protection grade	IP50


22mm Optical Rotary Encoders 0

Dimension

22mm Optical Rotary Encoders 1

Application

Packing machinery

Capsule filling machine

Pharmaceutical machine

VVVF motor

DC garage door motor

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine

VFD

Textile dyeing

Leather machine

Our Service

1. Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Strictly inspection before shipment

4. Various encoder models to be selected

5. Short lead time

6. High quality standard

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

Shipment

1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

2. You could select the express according to your requirements if freight collector

3. If you do not have any courier account, we will check and find a cheapest and safety express for you.

4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.

Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.

Production video

There are various of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.
