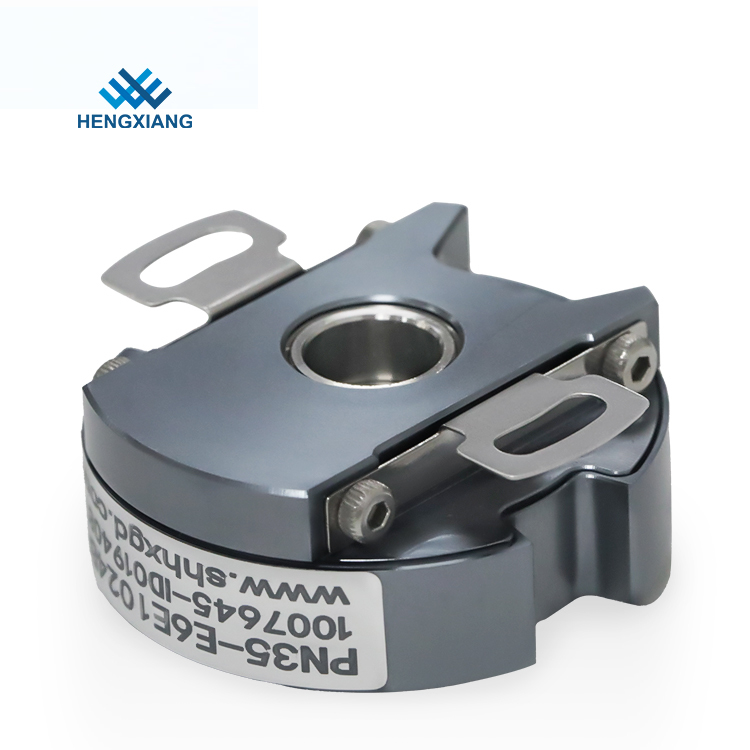

PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm

PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm

Products - Optical Rotary Encoders
  • High Light

    Outer Diameter 35mm Motor Rotary Encoder

    ,

    Ultra Thin Motor Rotary Encoder

    ,

    PN35 Incremental Optical Rotary Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Incremental Type
  • External diameter
    35mm
  • Thickness
    15mm
  • Hollow Shaft Type
    Through Shaft
  • Hollow Shaft Diameter
    6mm;8mm
  • Resolution
    1024-5000/6/8
  • Output phase
    Phase ±ABZUVW
  • Supply voltage
    DC5V; DC8-30V
  • Outlet Type
    Radial Connector; Radial Cable
  • Output Mode
    N=OC(DC5V&8-30V); C=TTL(DC5V)；E=HTL(DC8-30V); S=TTL(DC5V)(Less Wiring Type)
  • Protection
    IP50
  • Net weight
    About 70g
  • Certification
    CE
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Universal rotary encoder PN35 diameter
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm

  • PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm
  • PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm
Get Price Contact Now

PN35 super ultra thin outer diameter 35mm through china encoder supplier motor rotary



Adventage of PN35 Series Encoder

Encoder type: Incremental encoder

External diameter : 35mm

Thickness: 15mm



PN35 rotary encoder Description

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental Type
External diameter 35mm
Thickness 15mm
Hollow shaft type Through shaft
Hollow shaft diameter 6mm;8mm
Resolution 1024/6;/8;2048/6;/8;2500/6;/8;4096/6;/8;5000/6;/8
Output phase 3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less wiring type A+B+Z Delay U+V+W; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage DC5V; DC8-30V
Outlet type Radial connector; Radial cable
Output mode N=OC(DC5V&8-30V); C=TTL(DC5V)
E=HTL(DC8-30V); S=TTL(DC5V)(Less wiring type)
Consumption current 120mA Max
Top response frenquency 100kHZ; 500kHZ; 800kHZ
GND not connected to the encoder, must be effectively connected to GND
Starting torque less than 5x10-³N.m
Inertia moment less than 1.5x 10-6kg.m2
Environmental temperature Operating:-20 ～+95°C；
storage:-25 ～+100°C
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Protection IP50
Material Aluminium alloy
Certification CE
package Carton box
Net weight About 70g



Associated model number of PN35 series

PN35-E3O1024/6Q6

PN35-J12E2500/8Q6

PN35-J6N4096/6Q5

PN35-E12E5000/6Q6

PN35-J6C2500/6Q8

PN35-E3N1024/8Q8

....





PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm 0





PN35 Ultra Thin Motor Rotary Encoder Outer Diameter 35mm 1



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



The reason to choose us

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



FAQ

Q1: What are our strengths?

A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing 　　 institutions.

※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.
