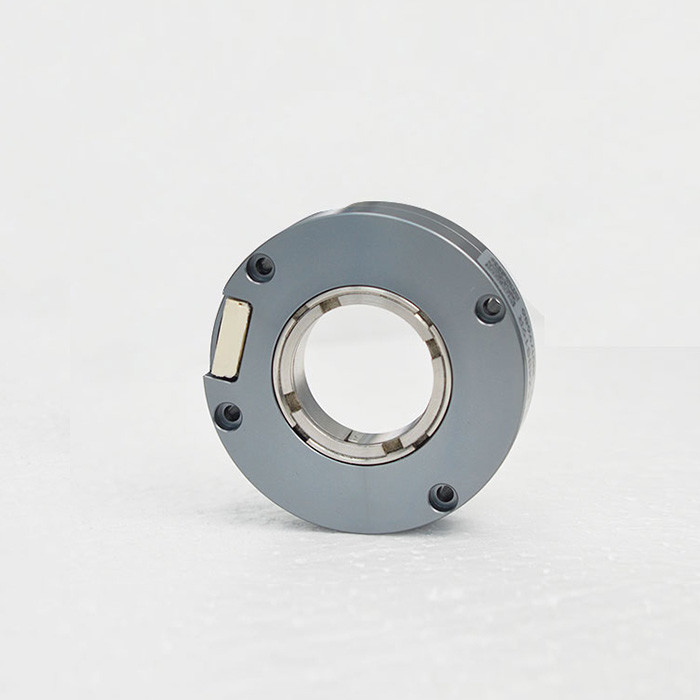

IP50 Industrial Absolute Encoder MP55 20mm Hollow Shaft 17-24 Bit Single Turn SSI

IP50 Industrial Absolute Encoder MP55 20mm hollow shaft 17-24 bit single turn SSI



Feature:

MP55 has mechanical soft connection design for external diameter, high precision photoelectric absolute encoder, which can solve the installation problem in limited space with low requirement for mounting shaft.

The mounting size of MP55 is 49.2mm, and both are mounted with 4pcs of M2.5*12 bolts. You can choose the right product according to your installation needs.



Application:

Servo motor, robot and other industrial automations.



Basic parameters:

Items Basic parameters
Brand Hengxiang
Encoder type Absolute encoder
External diameter 55mm
Thickness 14.5mm
Installation dimension 49.2mm
Hollow shaft type Through hole
Hollow shaft diameter 14mm; 15mm; 19mm; 20mm; 24mm
Resolution single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface E=SM08B-GHS-TB
Communication B=BISS-C; S=SSI
Electrical connection Radial socket
Output mode M=multi-turn
S=single-turn
Scanning principle Reflective grating code
Accuracy ±40"
Response speed Normal action: 6000min
RMS position signal noise ±2@18 bits/r
Communication clock frequency ≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time typical value: 13ms
Absolute position sampling period ≤75 ns
Allowable speed ≤32200 r/min (restricted by mechanical speed limit)
Cable Differential twisted-paired cable
Cable length 200mm-10000mm
Mechanical Connection With bearing& encircled locking shaft
Starting Torque less than 9.8×10-3 N.m
Inertial moment less than 6.5×10-6 kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed ≤6000rpm
Shell Material Aluminum
Weight about 90g
Environmental temperature Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity Operating and storage: 35~85%RH(Noncondensing)
Vibration Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock 980m/s2 11ms, three times for X,Y,Z direction individually
Protection IP50
