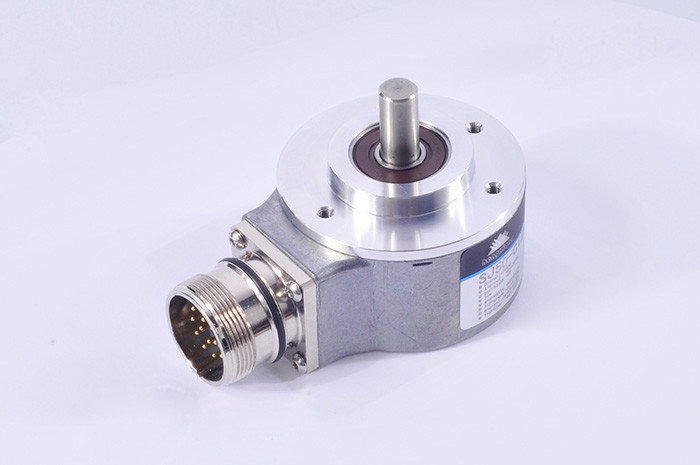

Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm

Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm

  • Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm
  • Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm
  • Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm
  • Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm
Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: SJ50 single turn absolute encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Absolute Encoder External diameter: 51mm
Bit(steps): 5 Bit;6 Bit;7 Bit;8bit;9bit;10 Bit;11 Bit;12bit Supply voltage: DC5V ; DC8-30V
Outlet Type: Radial Cable/Radial Socket/Radial Cable With Plug Count Direction: Counterclockwise /outside Control Direction /clockwise
Interface: NPN Low Level Effective/ NPN High Level Effetive Cable Length: 1000mm(cable With Shielding)
High Light:

10 Bit Single Turn Absolute Encoder Solid

,

Gray Code Single Turn Absolute Encoder Solid

,

shaft 8mm gray code rotary encoder

SJ50 single turn absolute encoder gray code output 10 bit solid shaft 8mm



Quick review for SJ50 absolute encoder

Encoder type: absolute encoder

External diameter: 51mm

Solid Shaft diameter: 8mm D shape

Shaft length: 16mm

Protection grade: IP50 ; IP65

Consumption current: 100mA MAX

Top response frequency: 100KHZ

Shell Material: die cast aluminum

Package: Carton box



SJ50 Product Information

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 51mm
Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage DC5V ; DC8-30V
Outlet type Radial cable
  Radial socket
  Radial cable with plug
Count direction counterclockwise
  outside control direction
  clockwise
Interface NPN low level effective
  NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box

Gray Code 10 Bit Single Turn Absolute Encoder Solid Shaft 8mm 0

Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Connecting Coupling Part Number:

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

6M6

6M8

8M8

8M10

6W6

6W8

8W8

8W10



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
