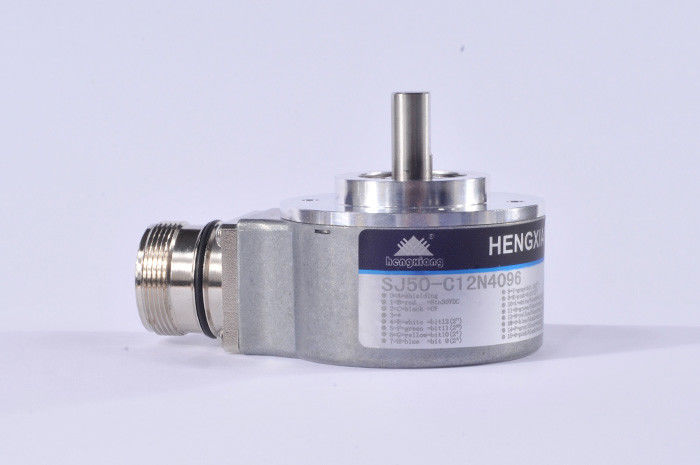

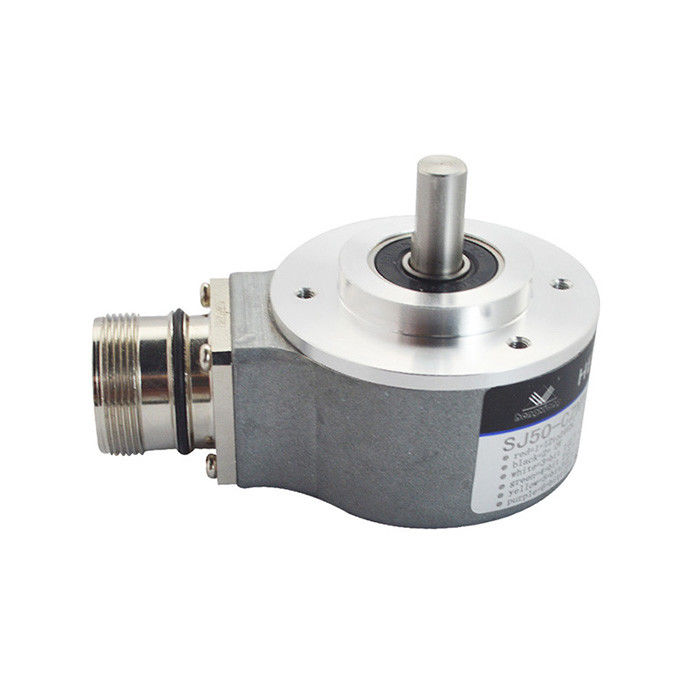

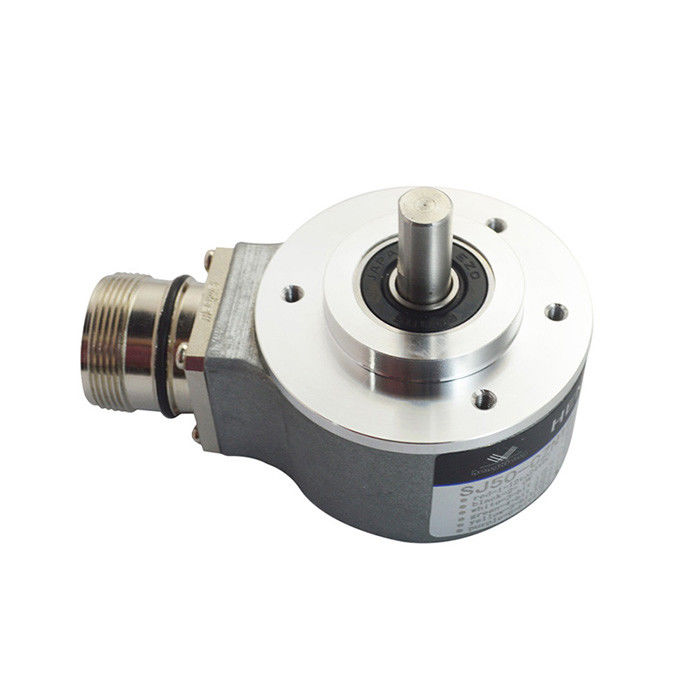

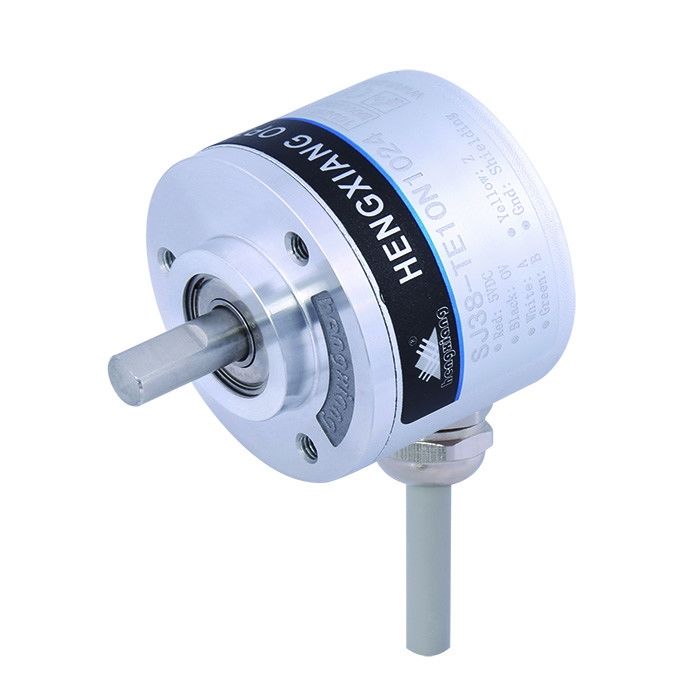

11 Bits Single Turn Absolute Encoder with OC Parallel Output

11 Bits Single Turn Absolute Encoder with OC Parallel Output

  • 11 Bits Single Turn Absolute Encoder with OC Parallel Output
  • 11 Bits Single Turn Absolute Encoder with OC Parallel Output
  • 11 Bits Single Turn Absolute Encoder with OC Parallel Output
  • 11 Bits Single Turn Absolute Encoder with OC Parallel Output
11 Bits Single Turn Absolute Encoder with OC Parallel Output
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Single turn absolute encoder SJ50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Intertia Moment: Less Than 3x 10-6kg.m2 Shaft Load: Radial 50N; Axial 30N
Interface: NPN Low Level Effective/NPN High Level Effetive Count Direction: Counterclockwise /outside Control Direction /clockwise
Starting Torque: Less Than 5x 10-3N.m Insulation Strength: AC500V 60s
Precision: 360/(resolution X 4) Bearing Life: 1.5x109 Revs At Rated Load(100000hrs At 2500RPM)
Top Response Frequency: 100KHZ
High Light:

11 Bits Single Turn Absolute Encoder

,

Parallel Output Single Turn Absolute Encoder

,

OC Output Absolute Rotary Encoder

Single turn absolute encoder SJ50 rotary encoder OC output 11 bits parallel output



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



Product Basis information

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
Count direction counterclockwise
  outside control direction
  clockwise
Interface NPN low level effective
  NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
GND not connect to encoder
starting torque less than 5x 10-3N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 3000RPM ;IP65≤2000 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage DC5V ; DC8-30V

11 Bits Single Turn Absolute Encoder with OC Parallel Output 0

Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment



Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· VFFS machine

· Paper cutter

· CNC machine tool

· Automatic measurement

· Remote control





Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



About Absolute encoder

Absolute encoders have an encoder disc (sporting marks or slots) on a power-transmission shaft and a stationary pickup, but the disc marks output a unique code for each shaft position. Absolute encoders are either single-turn or multi turn encoders. Single turn absolute encoders can verify position within a single turn of the encoder shaft. This makes them useful for short travel situations. In contrast, multiple-turn absolute encoders are better for more complex or longer positioning situations.

Engineers generally classify absolute encoders by the number of their output bits, which correlates to the number of the disc’s tracks—and the maximum rotary angle the encoder registers. More after the jump.

Absolute rotary encoders have the advantage of non-volatile memory. That is, they do not lose track of positioning even when power fails. So even if something moves the machine shaft when power is off, an absolute encoder keeps track of the rotary-position change when the machine powers on again. Usually, electronics store this information as binary code, ideally Gray binary code. Absolute rotary encoders can operate point-to-point as well. They are useful in situations where safety is a concern, because they position whenever machines power on. Immunity to electoral noise is another benefit. One caveat: absolute rotary encoders are generally more expensive than incremental encoders. However, the cost of absolute encoders has steadily decreased over the last decade, and that’s driven steady increase of their use.
