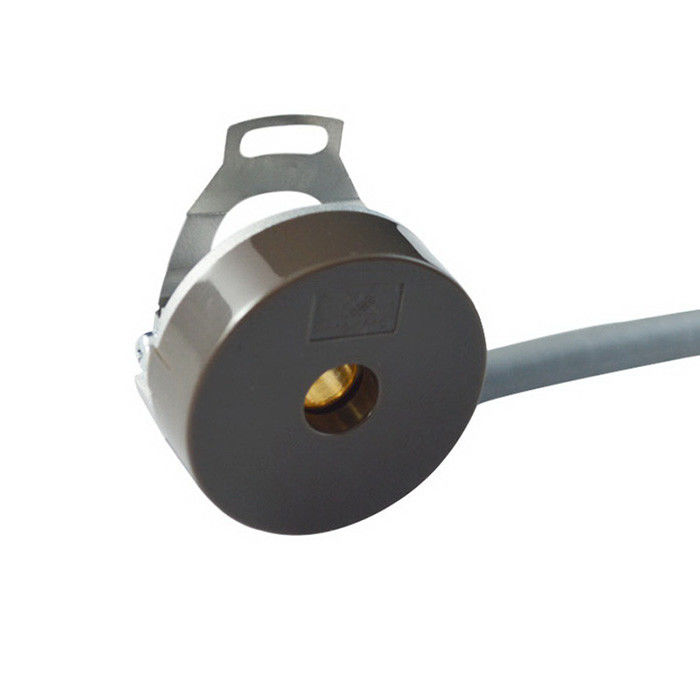

CW Direction DC5V Single Turn Absolute Encoder SJ50

CW Direction DC5V Single Turn Absolute Encoder SJ50

Products - Single Turn Absolute Encoder
  • High Light

    DC5V Single Turn Absolute Encoder

    ,

    CW Single Turn Absolute Encoder

    ,

    gray code shaft encoder SJ50

  • Vibration(endure)
    Amplitude 0.75mm,5-55Hz,2 Hours For Three Axis Individually
  • Shell Material
    Die Cast Aluminum
  • Intertia Moment
    Less Than 3x 10-6kg.m2
  • Protection grade
    IP50 ; IP65
  • Count Direction
    Counterclockwise /outside Control Direction /clockwise
  • Sock(endure)
    490m/s2 ,11 Ms Three Times For X,Y,Z Direction Individually
  • Shaft Material
    Stainless Steel
  • Insulation Strength
    AC500V 60s
  • Cable length
    1M (cable Length Could Be Added Appropriately By / Require, But It Need Payment Individually)
  • Environmental Humidity
    Operating And Storage: 35-85%RH(noncondensing)
  • Shaft Load
    Radial 50N; Axial 30N
  • Top Response Frequency
    100KHZ
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Solid shaft single turn SJ50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

CW Direction DC5V Single Turn Absolute Encoder SJ50

  • CW Direction DC5V Single Turn Absolute Encoder SJ50
  • CW Direction DC5V Single Turn Absolute Encoder SJ50
  • CW Direction DC5V Single Turn Absolute Encoder SJ50
  • CW Direction DC5V Single Turn Absolute Encoder SJ50
Get Price Contact Now

Solid shaft single turn SJ50 absolute encoder gray code angle output CW direction DC5V



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



Feather of SJ50 encoder

External diameter: 51mm

Consumption current: 100mA MAX

Bit(steps): 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit

Supply voltage: DC5V ； DC8-30V

Installation dimension: 40mm diameter

Top response frequency: 100KHZ

Allowable ripple: ≤3%rms

Encoder type: absolute encoder

Brand: HENGXIANG



Detail Specifications

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 51mm
Supply voltage DC5V ； DC8-30V
Outlet type Radial cable
  Radial socket
  Radial cable with plug
Count direction counterclockwise
  outside control direction
  clockwise
Interface NPN low level effective
  NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Environmental temperature Operating:-20 ～+85°C；storage:-25 ～+90°C
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Certification CE

CW Direction DC5V Single Turn Absolute Encoder SJ50 0

Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)





Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· VFFS machine

· Packing machinery

· Capsule filling machine

· Pharmaceutical machine

· VVVF motor

· DC motor

· Stepper motor

· Servo motion controller

· Gearbox
