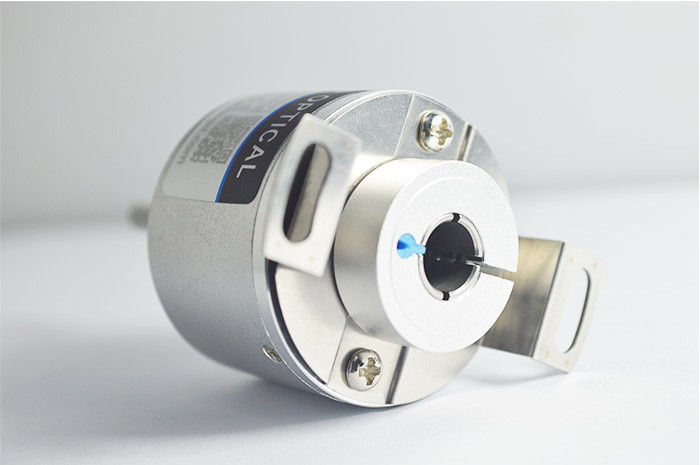

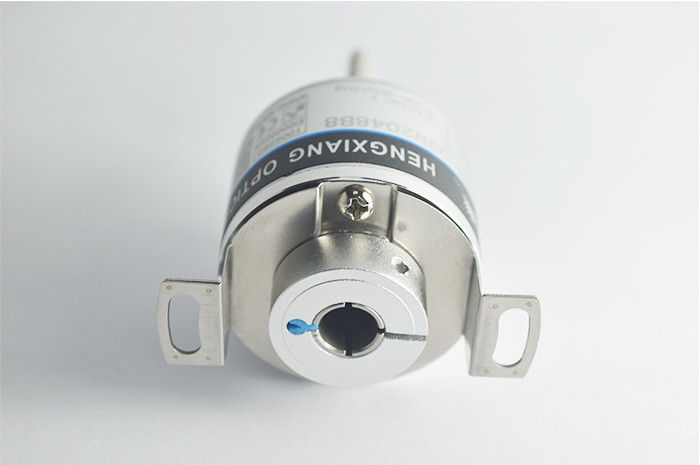

Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output

Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output

  • Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output
  • Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output
Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K38 incremental quadrature encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Universal Rotary Encoder External diameter: 38mm
Hollow Shaft Diameter: 5mm,6mm,6.35mm;8mm Resolution: 50ppr - 16384ppr
Environmental humanity : 35~85%RH (non-condensing) Output phase: Phase A,B,Z A- B- Z-
Shaft Load: Radiel: 40N; Axial:20N Shell : Die Cast Aluminum
High Light:

incremental type encoder

,

hollow shaft rotary encoder

Optical rotary encoder K38 hollow shaft incremental encoder hole 6.35mm PNP output



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Universal K38 Optical Shaft Encoder Incremental Hole 6.35mm PNP Output 0



Quick Instructions for Encoder

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Output Phase: A,A+B, or ABZ or A+B+Z+A-B-Z-

Gross weight 140 grams

Slew speed 5000 round per minute



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid


K38 Parameter table

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
Hollow shaft diameter 5mm,6mm,6.35mm;8mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384
Output phase Phase A,B,Z A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Compatible RS422
  Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
package Carton box
Net weight About 140g (with package)



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



FAQ

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)
