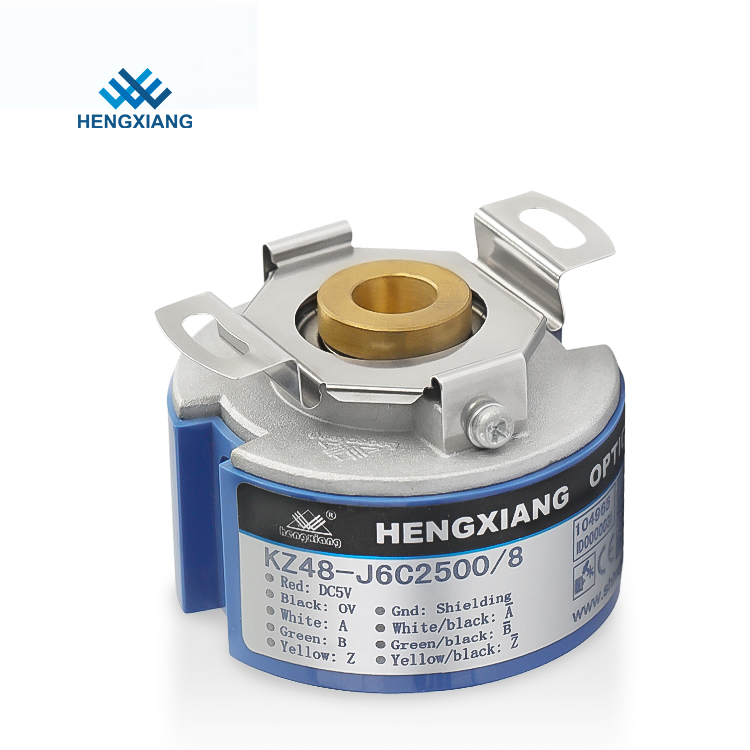

HENGXIANG-K48 Hollow Shaft Incremental Rotary Encoders Series SEB 50-10000P/R
1). Matters needing attention
Must choose the power supply voltage: DC5V or DC8-30V
Must choose leaf spring plate model number if you select hollow shaft encoder
Please advise the motor speed (RPM) that you actually use
If you have any other requirements, please provide detail parameters
2). Related part number of K48 Series
3). Specification details
|Encoder type||Incremental encoder|
|Installation dimension||40mm(spring plate 48T40)|
|Hollow shaft type||through straight hole|
|Hollow shaft diameter||6mm;8mm;10mm;12mm|
|Output phase||Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-|
|Supply voltage||DC5V ; DC8--30V|
|Outlettype||Cable out from side|
|Output mode||NPN/PNP(Open Collector Output)|
|line drive (26LS31) TTL|
|line drive(DC8-30V) HTL|
|TTL(DC5V) phase ABZ are back of phase UVW|
|Consumption current||100mA MAX|
|Top response frenquency||100KHZ|
|Insulation strength||AC500V 60s|
|GND||not connect to encoder|
|Mark to Space ratio||45% to 55%|
|starting torque||less than 9.8x 10-3 N.m|
|Intertia moment||less than 6.5x 10-6kg.m2|
|Shaft load||Radial 50N; Axial 30N|
|Bearing life||1.5x109 revs at rated load(100000hrs at 2500RPM)|
|Environmental temperature||Operating:-20 ～+85°；storage:-25 ～+90°|
|Enviromental humidity||Operating and storage: 35-85%RH(noncondensing)|
|Vibration(endure)||Amplitude 0.75mm,5-55Hz,2 hours for three axis individually|
|Sock(endure)||490m/s2 ,11 ms three times for X,Y,Z direction individually|
|Material||Dia cast aluminium|
|Net weight||About 140g (with package)|
Q1: What are our strengths?
※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing institutions.
※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.
※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.
※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.
Q2:What can we do for you?
A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.
Q3: How to select a right encoder model?
A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q4: Do you offer technical support?
A4: Yes, we have professional technician who can solve all your doubts.
5). Signal Circuit of encoder
1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.
An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.
2. PNP output
The PNP output is an interface based on an output circuit with a PNP transistor.
3. Push-Pull output(HTL)
High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.
“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.
4. TTL RS-422 output
In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.
The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
