High Light
DC30V Hollow Shaft Encoders
,K50 Incremental Shaft Encoder
,Hollow Incremental Shaft Encoder
-
External diameter50mm
-
Thickness30mm
-
Installation DimensionR27.5mm,R30mm, R34.5mm
-
Hollow Shaft TypeBlind Hole ; Through Hole
-
Hollow Shaft Diameter8mm,10mm,12mm;14mm;15mm
-
Resolution50;60;66;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000；11520；16384；20000；23040
-
Output phasePhase A,B,Z A- B- Z-
-
Supply voltageDC5V ; DC8--30V
-
Outlet TypeCable Out From Side/ Cable Out From Back
-
Output modeNPN/PNP(Open Collector Output) Voltage Output Push-pull Output Long Line Drive (26LS31) Compatible RS422 Long Line Drive (RT7272)
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model Numberincremental encoders K50
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year

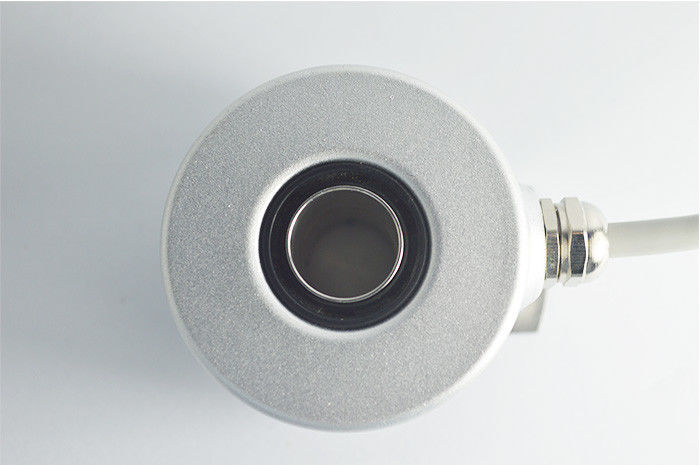

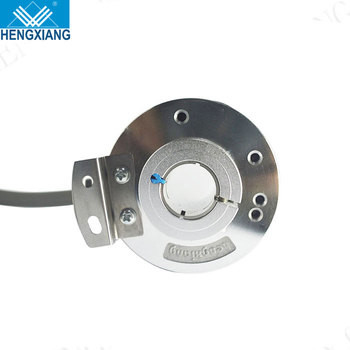

DC30V K50 10mm Hollow Shaft Incremental Encoders
10mm hollow shaft incremental encoders K50 3000 lines line driver 7272 output DC8-30V
Production Catalogue
If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.
But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.

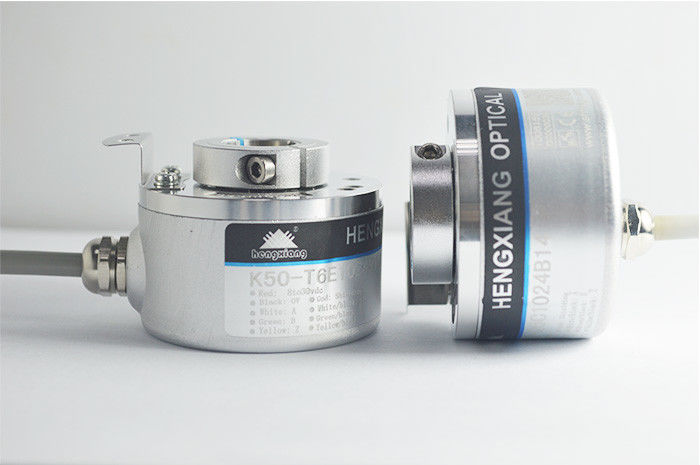

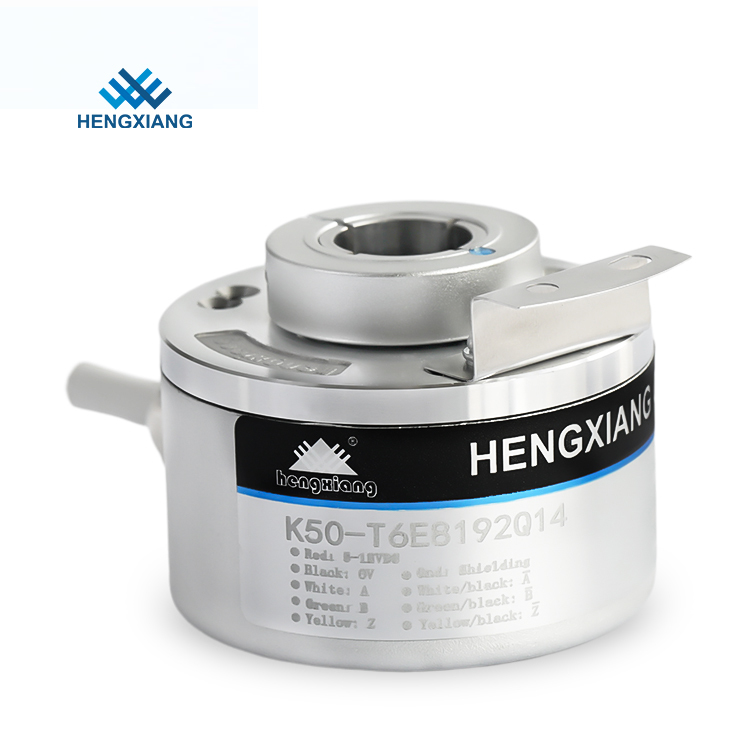

Quick Review of K50 rotary encoder
Encoder type: Incremental encoder
External diameter: 50mm
Protection grade: IP50 ; IP65
Cable length:1000mm
starting torque:less than 9.8X10-3 N.m
Intertia moment:less than 6.5x 10-6kg.m2
Package:Carton box
Net weight :About 140g (with package)
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Product Basis information
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 50mm |
| Thickness | 30mm |
| Installation dimension | R27.5mm,R30mm, R34.5mm |
| Hollow shaft type | blind hole ; through hole |
| Hollow shaft diameter | 8mm,10mm,12mm;14mm;15mm |
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512;600; |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; | |
| 8192;10000；11520；16384；20000；23040 | |
| Output phase | Phase A,B,Z A- B- Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Cable out from back | |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| Long line drive (26LS31) | |
| Compatible RS422 | |
| Long line drive (RT7272) | |
| Environmental temperature | Operating temperature: -20~+90° |
| Storage temperature: -25~+100° | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Mark to Space ratio | 45% to 55% |
| Top response Frequency | 300kHz Max |
| Shell Material | die cast aluminum |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| GND | not connect to encoder |
| Shaft Material | Stainless steel |
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
About Our Factory
o Own brand of "HENGXIANG" encoder
o Has ISO9001:2000 Quality Management System Certificate and CE Certification
o Invention patents five and utility model patents five
o Passed Shanghai New and High-tech Achievements Transformation Project.
o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
o Located in Shanghai city
o 20-30 experienced workers
More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
Our products are sold all over the world, you can rest assured.
