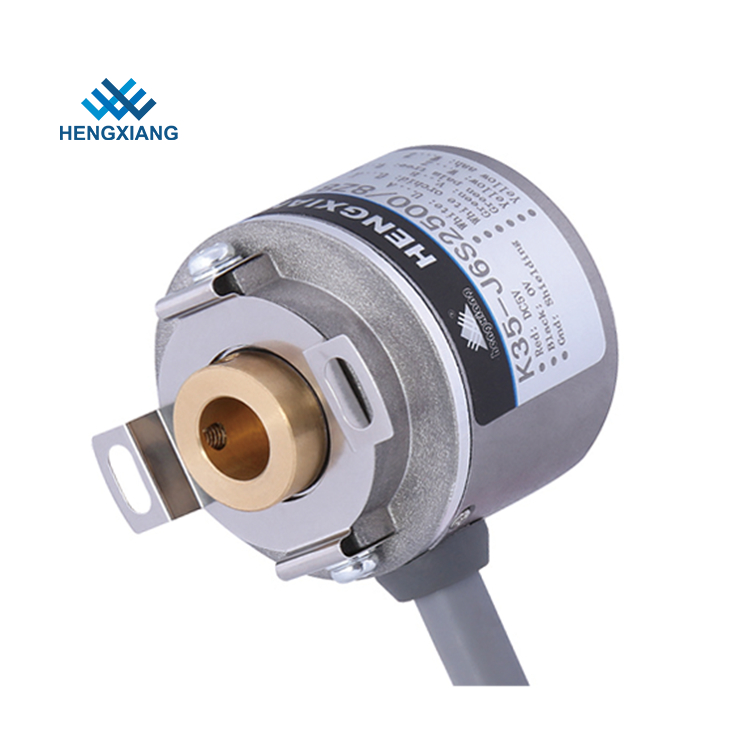

1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile

1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile

Products - Hollow Shaft Incremental Encoders
  • High Light

    Incremental Hollow Shaft Encoder 8mm

    ,

    Incremental Optical Encoder UVW

    ,

    Hollow Shaft Textile Servo Motor Encoder

  • Encoder Type
    Incremental Encoder
  • External diameter
    35mm
  • Thickness
    35mm
  • Installation Dimension
    58mm/80mm
  • Hollow Shaft Type
    Blind Hole
  • Hollow Shaft Diameter
    Hollow Shaft Diameter
  • Resolution
    30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Some K35 encoder part number
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile

  • 1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile
  • 1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile
  • 1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile
  • 1024ppr Optical Hollow Shaft Incremental Encoders UVW 8mm Servo Motor Textile
Get Price Contact Now
Incremental hollow shaft 8mm servo motor textile 1024ppr optical encoder UVW

1. Feature: Through shaft incremental encoder.



2. Application: Servo motor, textile industry, packing machinery, small instrument and other industrial automations.



3. Important parameters: IP50, Esay installation, Various output mode, UVW signal, pole encoder.


Basic parameters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
35mm
Thickness
35mm
Installation dimension
40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type
blind hole
Hollow shaft diameter
6mm,8mm;10mm
Resolution
30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；
2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage
DC5V & DC8--30V
Outlettype
Cable out from side
Output mode
NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade
IP50
Cable length
500mm
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 5.9x 10-3 N.m
Intertia moment
less than 1x 10-6kg.m2
Shaft load
Radial 30N; Axial 20N
Top REV
5000RPM
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material
Dia cast aluminium
Certification
CE
package
Carton box
Net weight
About 100g (with package)
