K50 Series Rotary Incremental Encoder 2500 Ppr ABZA - B - Z - Phase For Industry

K50 Series Rotary Incremental Encoder 2500 Ppr ABZA - B - Z - Phase For Industry

  • High Light

    incremental type encoder

    ,

    incremental position encoder

  • Brand
    HENGXIANG
  • Shaft Diameter
    8mm/10mm/12mm/14mm/15mm
  • Thickness
    30mm
  • Resolution
    50ppr(Min) To 23040ppr(Max)
  • Grade Of Protection
    IP50/ IP65
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Output Mode
    Open Collector, Voltage Output, Push-pull, TTL,HTL
  • Outlet Type
    Wire Out From Side & Wire Out From Back
  • Wire Length
    1M (it Can Be Added As Requirement)
  • Weight
    About 200g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K50-T Series
  • Minimum Order Quantity
    1 piece
  • Price
    negotiable
  • Packaging Details
    each piece will be packed by one single carton box, safety package before shipment
  • Delivery Time
    1-3 working days for sample, 7 -10 days for mass production
  • Payment Terms
    Western Union, MoneyGram, T/T, D/P, D/A, L/C
  • Supply Ability
    100K pieces per month

K50 Series Rotary Incremental Encoder 2500 Ppr ABZA - B - Z - Phase For Industry

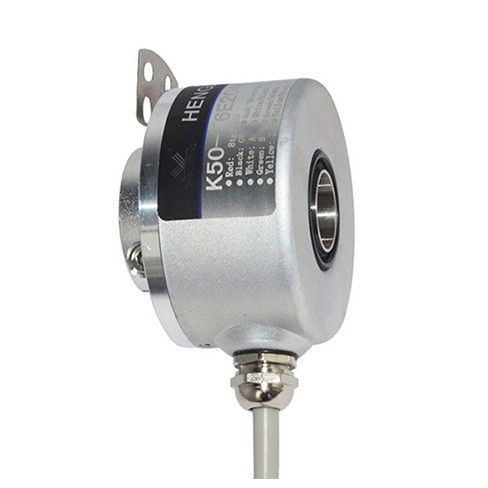

K50 series hollow shaft incremental encoder 2500ppr good quality encoder for industry ABZA-B-Z- phase Voltage output



Specifications:



ITEM PARAMTERS
External dimensions External diameter: 50mm ;Thickness: 30mm ;Shaft diameter: 8mm/10mm/12mm/14mm/15mm
Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200;2000;

2048;2500;5000;8192;10000;11520;16384;20000;23040

Output phase Phase A,B,Z,A-,B-,Z-
Outlettype Cable out from side & back
Protection grade IP50 & IP65
Cable length 1000MM
package Carton box
Weight About 200g (with package)
Certification CE/ ISO9001
Output mode N -pen Collector(NPN) V-Voltage output F-Push-pull output C- Line driver (26LS31) & RS422 E- Line driver(7272)
Supply voltage DC+5V±5% & DC8-30V±5% DC+5V±5% DC8-30V±5%
Consumption current 100mA MAX 200mA MAX
Top response frenquency 100KHZ 200KHZ
Output volume output current Input ≤30mA Load resistance 2.2K ≤30mA ≤±20mA
output - ≤10mA
output voltage "H" - - ≥(supply voltage-2.5V) ≥2.5v
"L" ≤0.4V ≤0.7V(Less than 20mA) ≥0.4V(when≤30) ≤0.5V
Load Voltage ≤DC30V -
Rise & Fall time less than 2us(load resistance 1KΩ,cable length:2M less than 1us(cable length:2m)
Origin motion low lelvel available high level available low level available high level available
starting torque less than 10mN.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV constant 3000min; moment 5000min(mechanical)
Environmental temperature Operating:-20 ~+90°;storage:-25 ~+90°
Enviromental humidity Operating and storage: 35-90%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hour for three axis individually
Sock(endure) 49m/s2 ,three times for X,Y,Z direction individually
Material Main body: aluminium alloy
Cable length 1000mm(cable with shielding)



More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.



Lead time:

1-3 working days for sample
7-10 working days for mass production



Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
