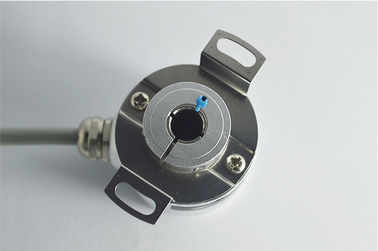

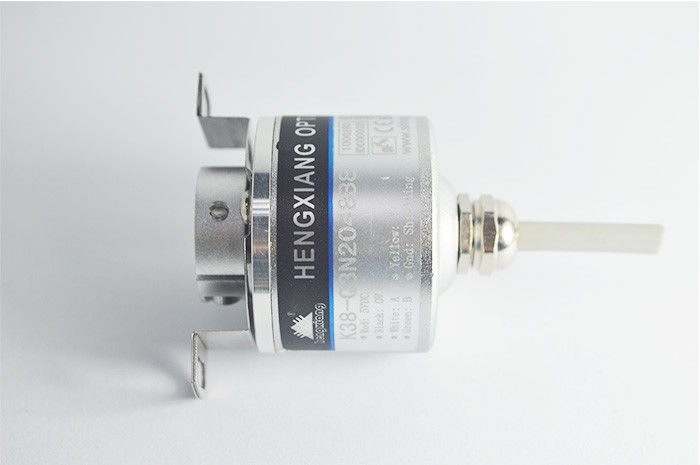

IP65 Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm

IP65 Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm

  • IP65  Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm
  • IP65  Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm
IP65  Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K38 Universal rotary encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Hollow Shaft Encoder External diameter: 38mm
Thickness: 38mm Resolution: 50ppr - 16384ppr
Environmental humanity : 35~85%RH (non-condensing) Output phase: Phase A,B,Z A- B- Z-
Net weight : About 140g (with Package) Top REV: 5000RPM ;IP65≤3000r Rpm
High Light:

incremental type encoder

,

hollow shaft rotary encoder

Universal rotary encoder K38 diameter 38mm totem pole output cable length 1000mm IP65



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



K38 part number for ordering

K38-T6C1000

K38-T3N1024B6.35

K38-T3F300Q6.35

K38-Q6C250

K38-Q6E360

K38-T3PH512

K38-T2F50B6

K38-Q1V360B8

K38-T2F1200

K38-Q6E2048



Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 38mm
Installation dimension R23.5mm(spring plate 38T45)
Hollow shaft type blind hole ; through hole
Hollow shaft diameter 5mm,6mm,6.35mm;8mm
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radiel: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000r rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top response Frequency 300kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
GND not connect to encoder
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65



IP65  Hollow Shaft Incremental Encoders K38 Diameter 38mm Totem Pole Output Cable Length 1000mm 0



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers

About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
