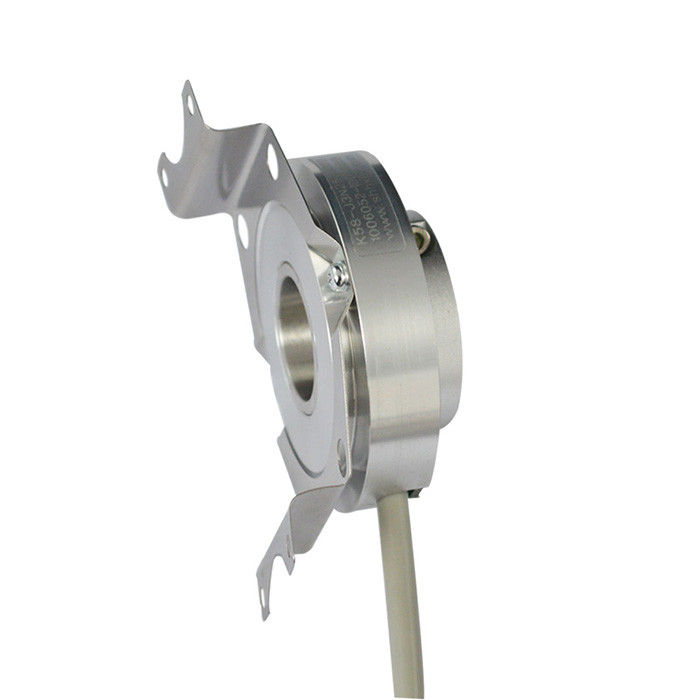

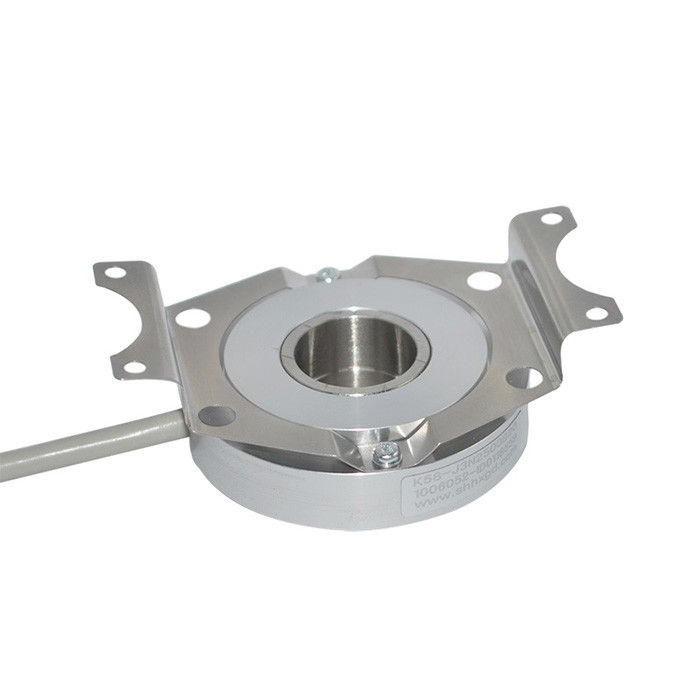

Large Aperture 22mm Hollow Shaft Incremental Encoders K58 Thickness 24mm
-
High Light
hollow shaft rotary encoder
,incremental position encoder
-
KeywardsLarge Aperture Encoder
-
BrandHENGXIANG
-
Installation DimensionR34.1mm(spring Plate 58T64)
-
Hollow Shaft Diameter15mm,16mm,18mm;20mm;22mm
-
Resolution1000ppr(Min) To 28800ppr(Max)
-
Shaft LoadRadial 50N; Axial 30N
-
Top REV3000RPM
-
Net weightAbout 150g (with Package)
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberK58 hollow encoders
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
Large Aperture 22mm Hollow Shaft Incremental Encoders K58 Thickness 24mm
Large aperture 22mm encoder K58 hollow shaft incremental encoder thickness 24mm
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameters
Some K58 encoder model number to choose
K58-J6E2048B22
K58-J2P1000B20
K58-J2N1024B18
K58-J12C1000/4B16
K58-J12E2048/6B15
K58-J3V2500BQ22
K58-J3FH1250BQ20
K58-J6E7200BQ18
K58-J12C2500/4BQ16
K58-J12E1000/6BQ15
K58-J4C5000B15
K58-J6C2000BQ15
K58-J12C2048/4B22
Detail Specifications for K58 series encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 58mm |
| Thickness | 24mm |
| Installation dimension | R34.1mm(spring plate 58T64) |
| Hollow shaft type | clamping ring at prior or clamping ring at rear |
| Hollow shaft diameter | 15mm,16mm,18mm;20mm;22mm |
| Resolution | 1000;1024;1200;1250;1440;2000;2048;2500;4096;5000; |
| 7200;14400；28800 | |
| 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6; | |
| 2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8; | |
| 5000/4;5000/6;/5000/8 | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| TTL(DC5V) phase ABZ are back of phase UVW | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 9.8 x 10-3 N.m |
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Our products are sold all over the world, you can rest assured.
