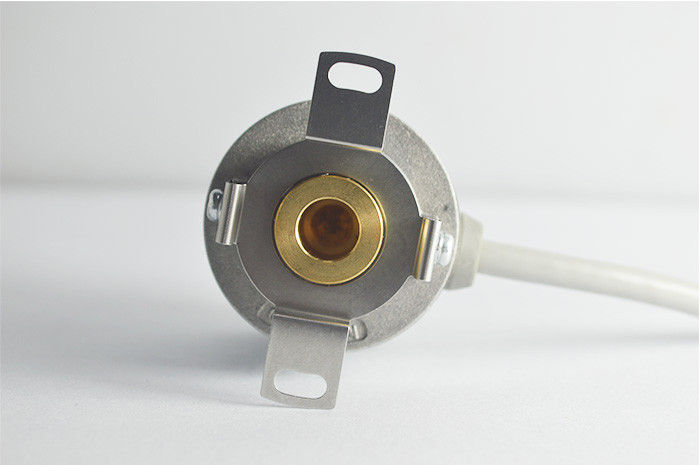

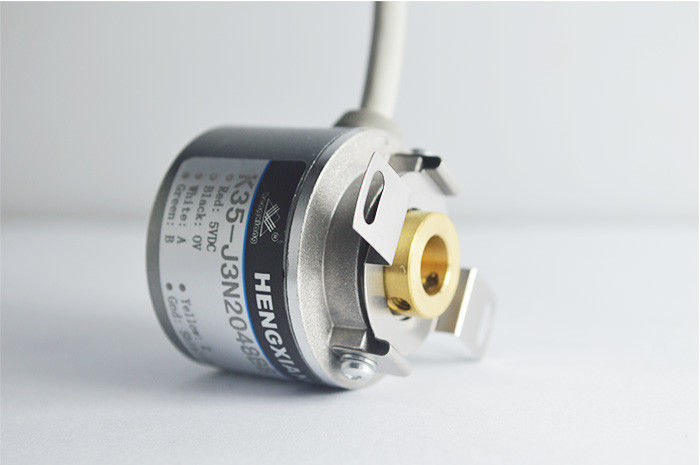

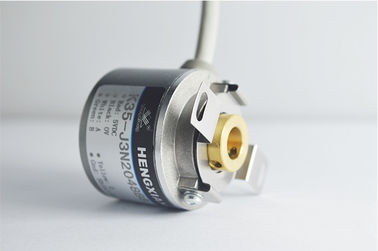

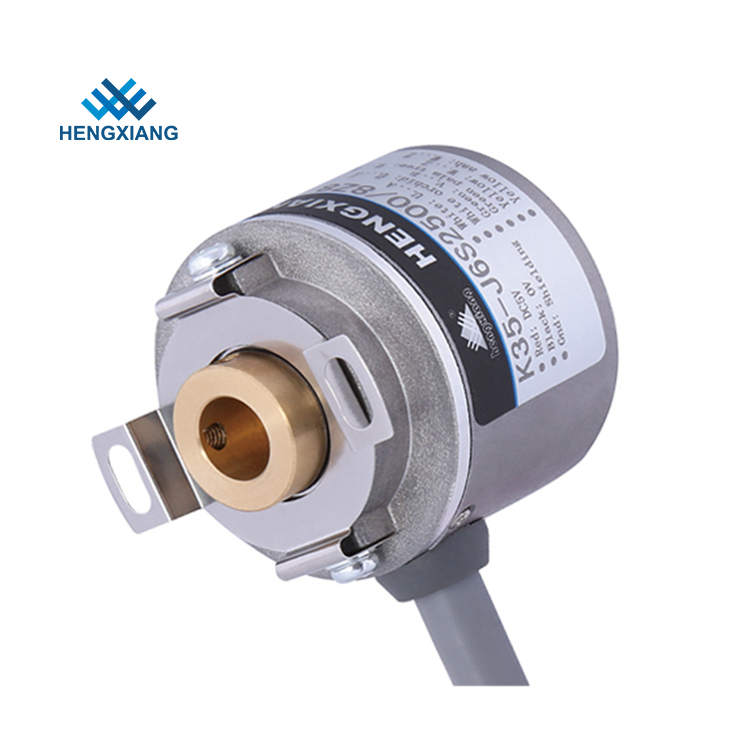

Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC

Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC

  • Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC
  • Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC
Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K35 blind hole encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Servo Motor Rotary Encoder External diameter: 35mm
Installation Dimension: 40mm(spring Plate 35T40); 29mm(35T29) Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Hollow Shaft Diameter: 6mm,8mm;10mm Outlet Type: Cable Out From Side
Net weight : About 100g (with Package) Package: Carton Box
High Light:

optical motor shaft encoders

,

cnc rotary encoder

Outer diameter 35mm servo motor rotary encoder line driver output with delay signal 5VDC



Part Number of K35 Series

K35-J6E1200

K35-J6C2048

K35-J6E2500

K35-J6C1000

K35-J12E1000/4

K35-J12C2000/6

K35-J12E1200/8

K35-J12C2500/8



K35 Encoder Product Information

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 35mm
Thickness 35mm
Installation dimension 40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type blind hole
Hollow shaft diameter 6mm,8mm;10mm
Resolution 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V & DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP50
Cable length 500mm
Shell Material die cast aluminum
Certification CE
package Carton box
Net weight About 100g (with package)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Lead time

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Outer Diameter 35mm Dc Motor Shaft Encoder Line Driver Output With Delay Signal 5V DC 0



Packing Details

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Packing machinery
  • Capsule filling machine
  • Pharmaceutical machine
  • VVVF motor
  • DC motor
  • Stepper motor
  • Servo motion controller
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
