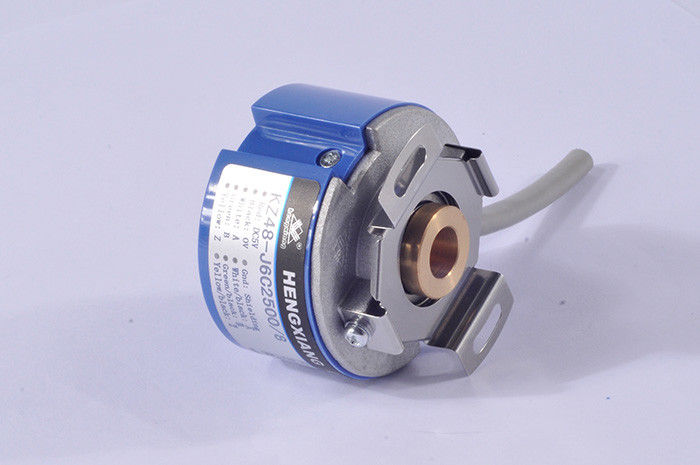

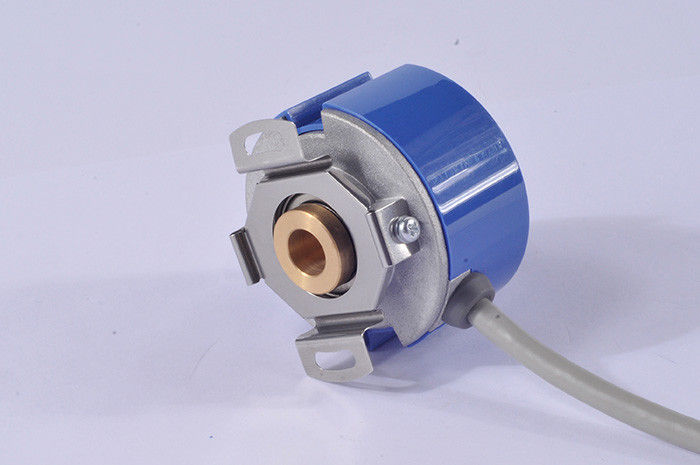

KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C

KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C

  • High Light

    optical motor shaft encoders

    ,

    cnc rotary encoder

  • Encoder Type
    KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C
  • Through Hole Shaft Diameter
    9mm( Taper 1:10)
  • Hollow Shaft Type
    Hollow Conical Shaft
  • Resolution
    50ppr(Min) To 8192ppr(Max)
  • Cable length
    500mm
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Shaft Load
    Radial 50N; Axial 30N
  • Net weight
    About 140g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    KZ48 hall sensor rotary encoder
  • Minimum Order Quantity
    1 piece to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card, Paypal, etc
  • Supply Ability
    100K pieces per year

KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C

KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C



Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Product Basis information of KZ48 Encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
  TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 9.8x 10-3 N.m
Intertia moment less than 6.5x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Material die cast aluminum
Certification CE
package Carton box
Net weight About 140g (with package)



Related Part No. of KZ48 Encoder

KZ48-J3FH1024

KZ48-J4E1200

KZ48-J6C2000

KZ48-J12E1000/4

KZ48-J2C2500

KZ48-J3V3600

KZ48-J4C4096

KZ48-J6E5000

KZ48-J12C1024/4

KZ48-J12E1200/6

KZ48-J12C2048/8



KZ48 Servo Motor Rotary Encoder Taper Shaft 9mm 4096 Resolution 8 Poles Line Driver 26LS31 A-ZKD-12-250BM/2P-G05L-C 0



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
