Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles

Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles

  • Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles
  • Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles
Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K35 electric motor encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Servo Motor Encoder External diameter: 35mm
Thickness: 35mm Supply voltage: DC5V & DC8--30V
Hollow Shaft Diameter: 6mm,8mm;10mm Outlet Type: Cable Out From Side
Net weight : About 100g (with Package) Package: Carton Box
High Light:

dc motor shaft encoder

,

cnc rotary encoder

K35 mini size rotary encoder blind hole 6mm 2500 resolution and 4 poles for servo motor



Our Selling points

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment

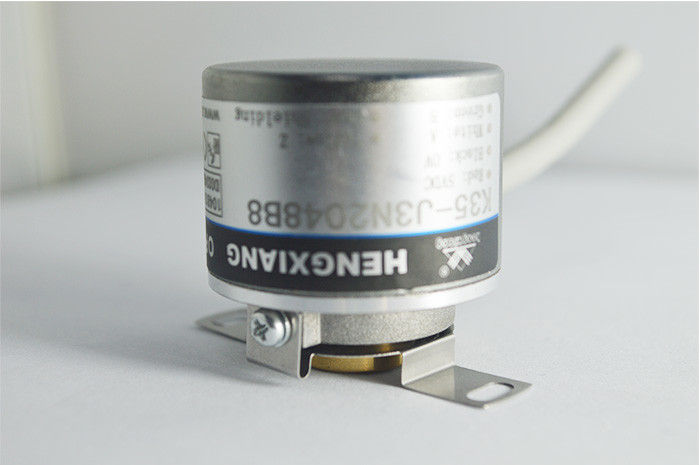

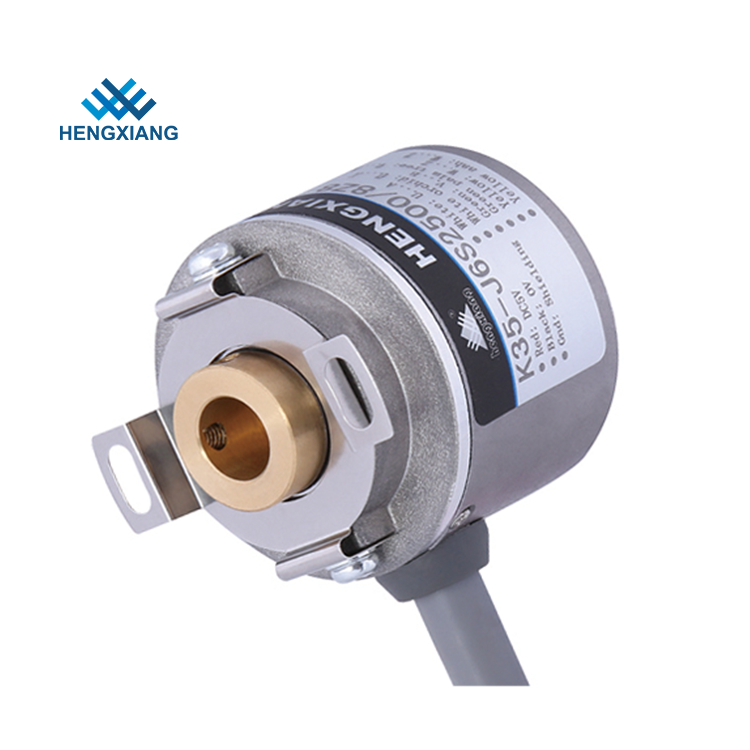

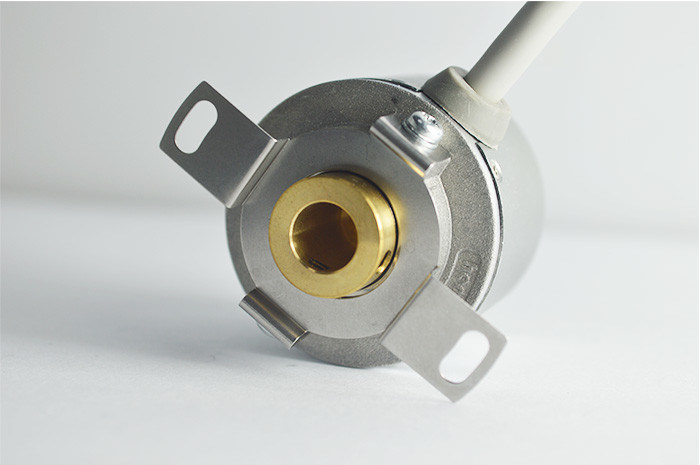

Blind Hole 6mm K35 Miniature Rotary Encoder 2500 Resolution 4 Poles 0



Basic Feather of K35 encoder

Encoder type: Incremental encoder

External diameter: 35mm

Installation dimension: 40mm(spring plate 35T40); 29mm(35T29)

Hollow shaft type: blind hole

Hollow shaft diameter: 6mm,8mm;10mm

Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage: DC5V & DC8--30V



K35 Series encoder Characteristics

Items Basic parameters
Brand HENGXIANG
Supply voltage DC5V & DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
  TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP50
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material die cast aluminum
Certification CE
package Carton box
Net weight About 100g (with package)



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.
