Incremental Signals Servo Motor Rotary Encoder Hollow Shaft TTL Rotary Encoder

  • Incremental Signals Servo Motor Rotary Encoder Hollow Shaft TTL Rotary Encoder
  • Incremental Signals Servo Motor Rotary Encoder Hollow Shaft TTL Rotary Encoder
  • Incremental Signals Servo Motor Rotary Encoder Hollow Shaft TTL Rotary Encoder
  • Incremental Signals Servo Motor Rotary Encoder Hollow Shaft TTL Rotary Encoder
Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number Incremental signals ERN1123 200001L70-FU replacement K35 hollow shaft encoder TTL Rotary Encoder with Integral Bearing
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Encoder Type Incremental Encoder External diameter 35mm
Thickness 35mm Installation Dimension 29mm
Hollow Shaft Type Blind Hole Hollow Shaft Diameter Hollow Shaft Diameter
Resolution 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000 Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
High Light

Incremental Servo Motor Rotary Encoder

,

Hollow Shaft TTL Rotary Encoder

,

Blind Hole TTL Rotary Encoder
Leave a Message
Product Description

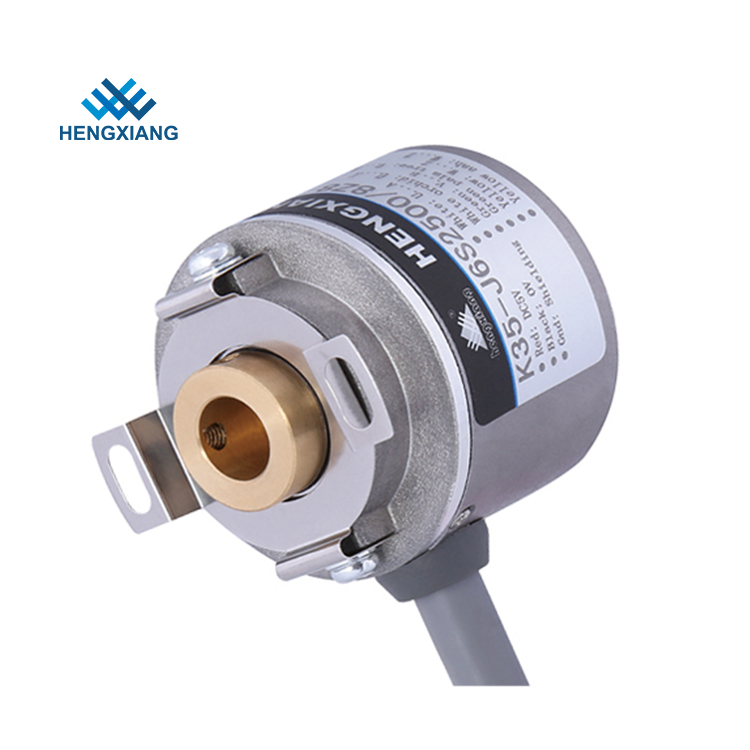

Incremental signals ERN1123 200001L70-FU replacement K35 hollow shaft encoder TTL Rotary Encoder with Integral Bearing





Some K35 encoder part number
K35-J12C1000/4
K35-J3V1024
K35-J2F2048
K35-J6C2500
K35-J12C2500/8
K35-J12E2500/6
K35-J4E1200
K35-J3V720
K35-J12C1024/8 DC5V
K35-J3NH1000

Specification for K35 servo motor encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 35mm
Thickness 35mm
Installation dimension 40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type blind hole
Hollow shaft diameter 6mm,8mm;10mm
Resolution 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V & DC8--30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ～+80°；storage:-25 ～+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material die cast aluminum
Certification CE
package Carton box
Net weight About 100g (with package)
