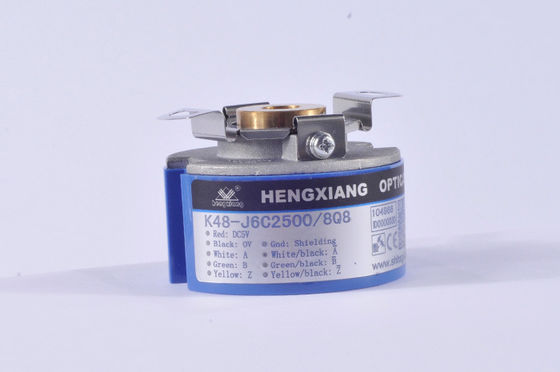

Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48

  • Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48
  • Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48
  • Mini Servo Motor Encoder ABZUVW Phase OIH48 - 1024P6L65v Encoder K48
Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K48-J servo encoder
Minimum Order Quantity 1 piece to start order
Price negotiable
Packaging Details each piece will be packed by one single carton box, safety package before shipment
Delivery Time 1-3 working days for sample, 7 -10 days for mass production
Payment Terms Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability 100K pieces per year
Product Details
Encoder Type Servo Motor Encoder Through Hole Shaft Diameter 8mm/10mm/12mm
Thickness 34mm Resolution 50ppr(Min) To 8192ppr(Max)
Optional Supply Voltage DC5V & DC8-30V Shaft Load Radial 50N; Axial 30N
Outlet Type Wire Out From Side Package Carton Box
High Light

optical motor shaft encoders

,

dc motor shaft encoder
Leave a Message
Product Description

Servo motor special encoder ABZUVW phase OIH48-1024P6L65v encoder K48



Our advantage

  • More than 20 years experienced engineers
  • Professional working team
  • Over 18 years encoder production experience
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Part Number of K48 Incremental Encoder

K48-J12C1000/4Q6

K48-J12E1000/6Q8

K48-J12C2000/4Q10

K48-J12C25000/4Q10

K48-J12C1000/6B6

K48-J12E2000/8B8

K48-J12E4096/8B10

K48-J12E4096/6B12

K48-J12C2500/16Q10



K48 Encoder Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 48mm
Thickness 34mm
Installation dimension 40mm(spring plate 48T40)
Hollow shaft type through hole or blind hole
Hollow shaft diameter 6mm,8mm,10mm,12mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000; 1024;1200;2000;2048;2500; 4096;5000;8192
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4； 2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8;8192/4; 8192/6;8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s



Technical Theory of encoder/

Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.

Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.



With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.



The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.

Replacement of Older Output Drivers
