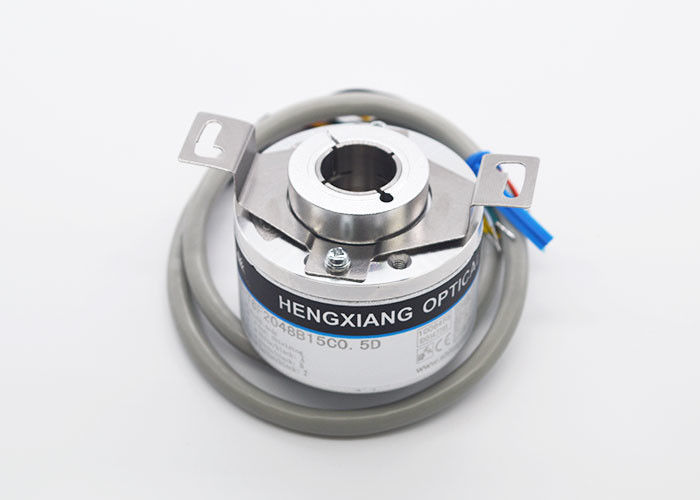

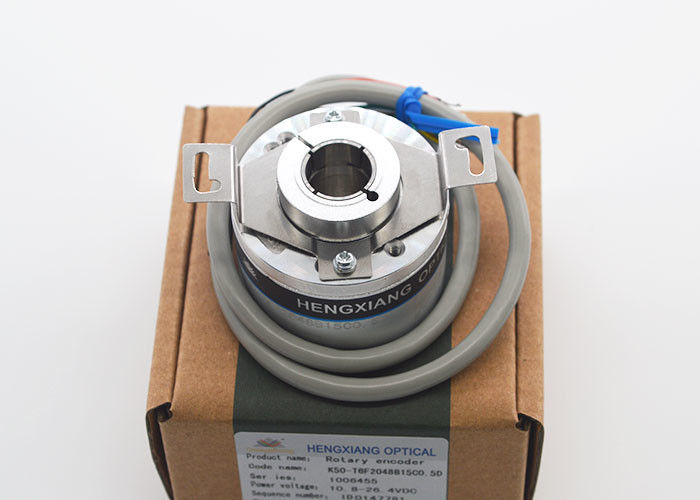

Industrial Sewing Machine Hollow Shaft Incremental Encoders K50 1200 Pulse NPN Output
-
High Light
incremental type encoder
,incremental position encoder
-
Model NumberK50 Series Rotary Encoder
-
Inner Hole8-15mm
-
Thickness30mm
-
Resolution50ppr(Min) To 23040ppr(Max)
-
IP GradeIP50/ IP65
-
Optional Supply VoltageDC5V & DC8-30V
-
Output ModeOpen Collector, Voltage Output, Push-pull, TTL,HTL
-
Outlet TypeWire Out From Side & Wire Out From Back
-
Wire Length1000mm
-
Gross Weight200g
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberK50-T Series
-
Minimum Order Quantity1 piece
-
Pricenegotiable
-
Packaging Detailseach piece will be packed by one single carton box, safety package before shipment
-
Delivery Time1-3 working days for sample, 7 -10 days for mass production
-
Payment TermsWestern Union, MoneyGram, T/T, D/P, D/A, L/C
-
Supply Ability100K pieces per month
Industrial Sewing Machine Hollow Shaft Incremental Encoders K50 1200 Pulse NPN Output
industrial sewing machine servo motor rotary encoder K50 1200 pulse NPN output
K50 detail Specifications:
| ITEM | PARAMTERS | ||||||
| External dimensions | External diameter: 50mm ;Thickness: 30mm ;Shaft diameter: 8mm/10mm/12mm/14mm/15mm | ||||||
| Resolution |
50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200;2000; 2048;2500;5000;8192;10000;11520;16384;20000;23040 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Cable out from side & back | ||||||
| Protection grade | IP50 & IP65 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 200g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | |||||
| Top response frenquency | 100KHZ | 200KHZ | |||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5v | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ,cable length:2M | less than 1us(cable length:2m) | |||||
| Origin motion | low lelvel available | high level available | low level available | high level available | |||
| starting torque | less than 10mN.m | ||||||
| Intertia moment | less than 3x 10-6kg.m2 | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | constant 3000min; moment 5000min(mechanical) | ||||||
| Environmental temperature | Operating:-20 ~+90°;storage:-25 ~+90° | ||||||
| Enviromental humidity | Operating and storage: 35-90%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for three axis individually | ||||||
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | ||||||
| Material | Main body: aluminium alloy | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
