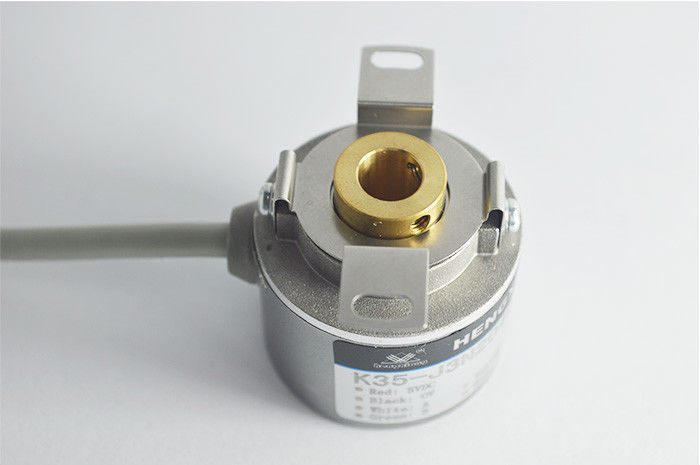

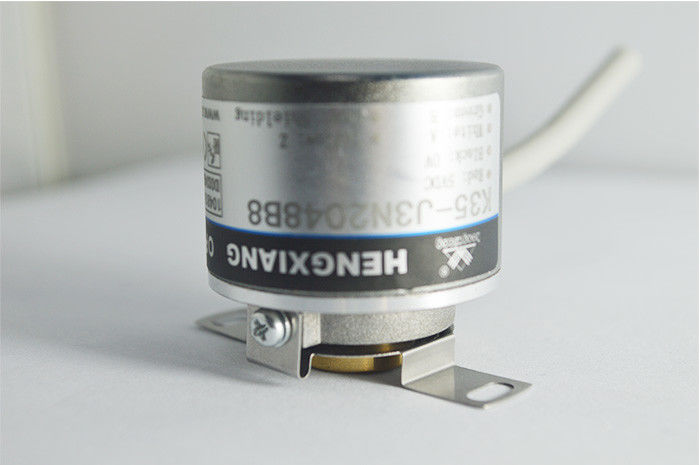

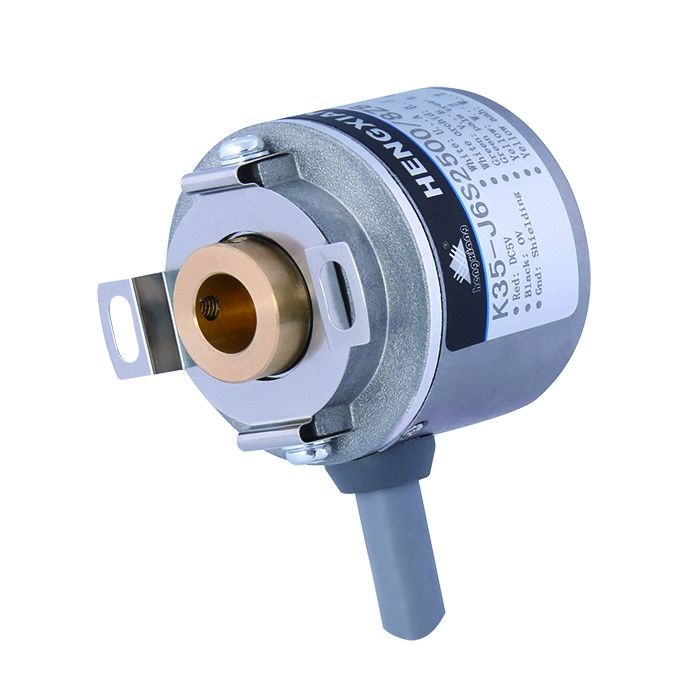

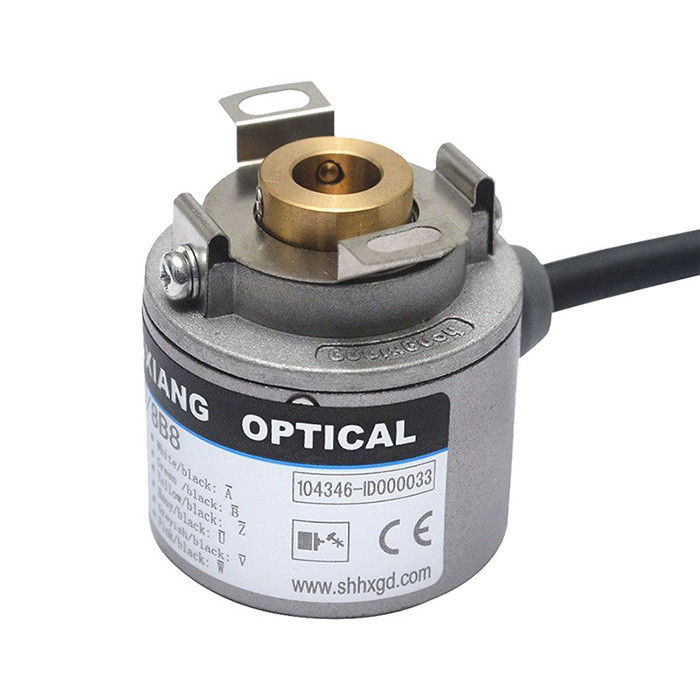

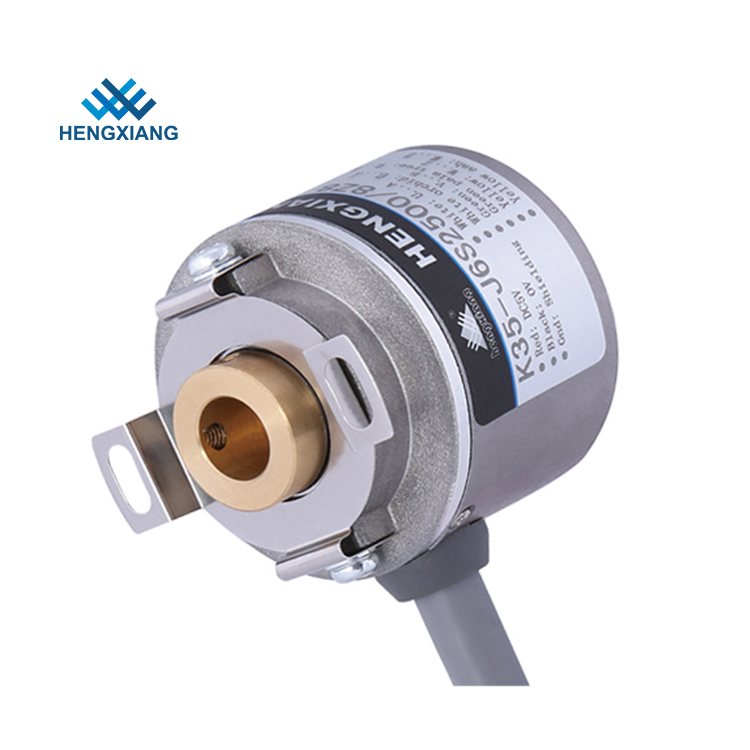

1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders

1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders

  • 1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders
  • 1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders
  • 1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders
  • 1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders
1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Some K35 encoder part number
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Incremental Encoder External diameter: 35mm
Thickness: 35mm Installation Dimension: Installation Dimension
Hollow Shaft Type: Blind Hole Hollow Shaft Diameter: Hollow Shaft Diameter
Resolution: 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000 Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
High Light:

K35 Hollow Shaft Incremental Encoders

,

Blind Hole Incremental Encoders

,

1000ppr Hollow Shaft Incremental Encoders

Hollow shaft incremental encoder K35 blind hole encoder external diameter 35mm 1000ppr



Some K35 encoder part number

K35-J12C1000/4

K35-J3V1024

K35-J2F2048

K35-J6C2500

K35-J12C2500/8

K35-J12E2500/6

K35-J4E1200

K35-J3V720

K35-J12C1024/8 DC5V

K35-J3NH1000



Specification for K35 servo motor encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 35mm
Thickness 35mm
Installation dimension 40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type blind hole
Hollow shaft diameter 6mm,8mm;10mm
Resolution 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V & DC8--30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material die cast aluminum
Certification CE
package Carton box
Net weight About 100g (with package)

1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders 0

1000ppr Blind Hole K35 Hollow Shaft Incremental Encoders 1

Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameter
