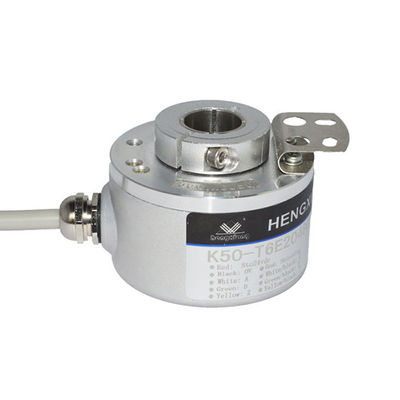

DC30V K50 10mm Hollow Shaft Incremental Encoders

DC30V K50 10mm Hollow Shaft Incremental Encoders

  • DC30V K50 10mm Hollow Shaft Incremental Encoders
  • DC30V K50 10mm Hollow Shaft Incremental Encoders
  • DC30V K50 10mm Hollow Shaft Incremental Encoders
  • DC30V K50 10mm Hollow Shaft Incremental Encoders
DC30V K50 10mm Hollow Shaft Incremental Encoders
Product Details:
Place of Origin: Shanghai,China
Certification: CE,ISO9001
Model Number: incremental encoders K50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
External diameter: 50mm Thickness: 30mm
Installation Dimension: R27.5mm,R30mm, R34.5mm Hollow Shaft Type: Blind Hole ; Through Hole
Hollow Shaft Diameter: 8mm,10mm,12mm;14mm;15mm Resolution: 50;60;66;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;11520;16384;20000;23040
Output phase: Phase A,B,Z A- B- Z- Supply voltage: DC5V ; DC8--30V
Outlet Type: Cable Out From Side/ Cable Out From Back Output mode: NPN/PNP(Open Collector Output) Voltage Output Push-pull Output Long Line Drive (26LS31) Compatible RS422 Long Line Drive (RT7272)
High Light:

10mm Hollow Shaft Incremental Encoders


K50 Hollow Shaft Incremental Encoders


DC30V Hollow Shaft Incremental Encoders

10mm hollow shaft incremental encoders K50 3000 lines line driver 7272 output DC8-30V

Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.


Quick Review of K50 rotary encoder

Encoder type: Incremental encoder

External diameter: 50mm

Protection grade: IP50 ; IP65

Cable length:1000mm

starting torque:less than 9.8X10-3 N.m

Intertia moment:less than 6.5x 10-6kg.m2

Package:Carton box

Net weight :About 140g (with package)

DC30V K50 10mm Hollow Shaft Incremental Encoders 0
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time

Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready


Product Basis information

Items Basic parameters
Encoder typeIncremental encoder
External diameter50mm
Installation dimensionR27.5mm,R30mm, R34.5mm
Hollow shaft typeblind hole ; through hole
Hollow shaft diameter8mm,10mm,12mm;14mm;15mm
Output phasePhase A,B,Z A- B- Z-
Supply voltageDC5V ; DC8-30V
Outlet typeCable out from side
Cable out from back
Output modeNPN/PNP(Open Collector Output)
Voltage output
Push-pull output
Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperatureOperating temperature: -20~+90°
Storage temperature: -25~+100°
Environmental humanityOperating and storage: 35~85%RH (non-condensing)
Insulation strengthAC500V 60s
Insulation resistance10MΩ
Mark to Space ratio45% to 55%
Top response Frequency300kHz Max
Shell Materialdie cast aluminum
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
GNDnot connect to encoder
Shaft MaterialStainless steel


Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.


About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001:2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
