Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor

Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor

  • Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor
  • Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor
  • Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor
  • Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor

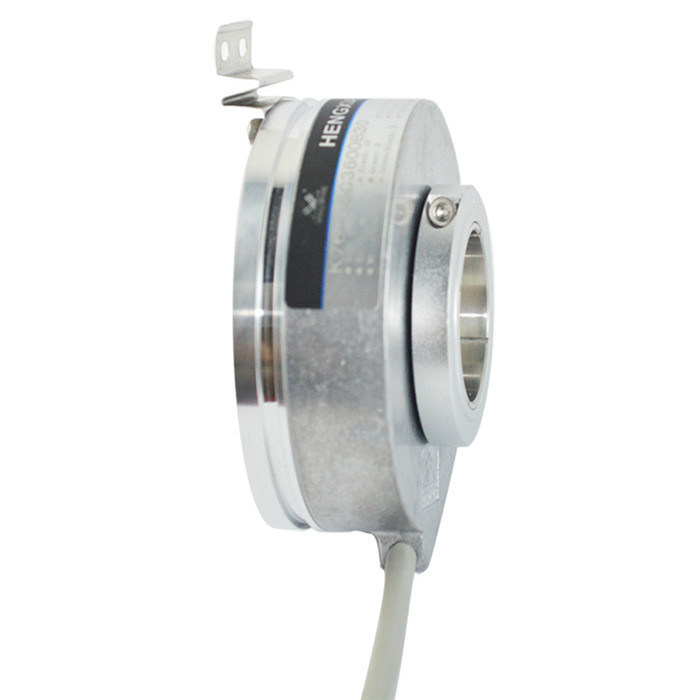

Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K76 encod
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: -5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Incremental Encoder Hollow Shaft Diameter: 18mm,20mm,22mm;25mm;28mm;30mm;
Resolution : 100;200;250;300;360;400;450;500;512;600;720;800;1000; 1024;1200;1800;2000;2048;2500;3000;3600;4096;5000; Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage: DC5V ; DC8-30V Outlet Type: Cable Out From Side
Output mode: NPN/PNP(Open Collector Output) Cable length: 1000MM
High Light:

K76 Quadrature Rotary Encoder

,

Hollow Shaft Quadrature Rotary Encoder

,

motor quadrature incremental encoder

K76 quadrature rotary encoder 3000 resolution hollow shaft 28mm line driver output for motor



Quick description for K76 encoder

Encoder type: Incremental encoder

Brand: HENGXIANG

External diameter: 76.5mm

Thickness: 37mm

Protection grade: IP50

Cable length: 1000MM

Certification: CE

Package: Carton box



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



K76 encoder main Characteristics

Items Basic parameters
Encoder type Incremental encoder
Brand HENGXIANG
Hollow shaft diameter 18mm,20mm,22mm;25mm;28mm;30mm;
Resolution 100;200;250;300;360;400;450;500;512;600;720;800;1000; 1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
  7200;8192;10000;14400;16384;28800;32768
  1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4; 2500/6;2500/8;4096/4;4096/6;4096/16; 5000/6;5000/8;5000/10;5000/12;5000/16;
  8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%

Hollow Shaft K76 Quadrature Rotary Encoder Line Driver Output For Motor 0

Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
