OC Output Shaft 2.5mm Blind Hole Mini Rotary Encoder K18

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number Mini size rotary encoder K18
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Outlet Type Cable Out From Side/ Cable Out From Back Output mode Collector Open Circuit Output(NPN &PNP)
Protection grade IP50 Cable length 1M (cable Length Could Be Added Appropriately By
Consumption Current 50mA MAX Top Response Frequency 100KHZ
Rise/ Fall Time 100nsec Max Starting Torque Less Than 5x 10-4 N.m
High Light

Blind Hole Mini Rotary Encoder

,

Mini Rotary Encoder K18

,

OC Output Hollow Shaft Incremental Encoders

Leave a Message
Product Description

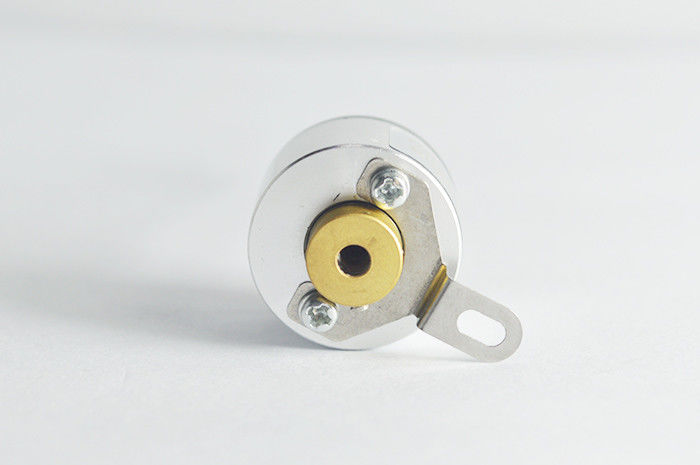

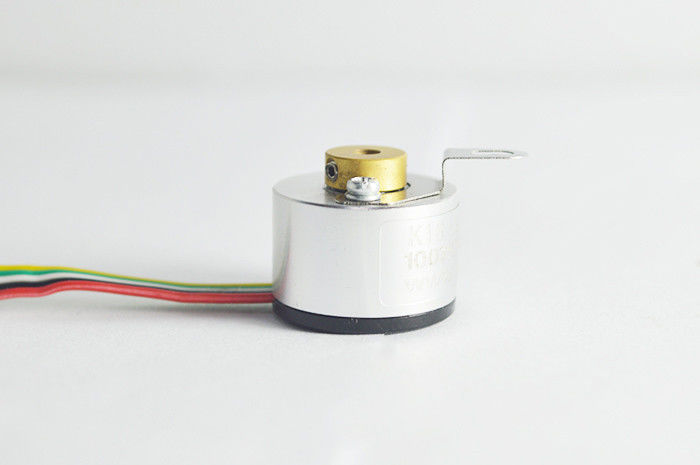

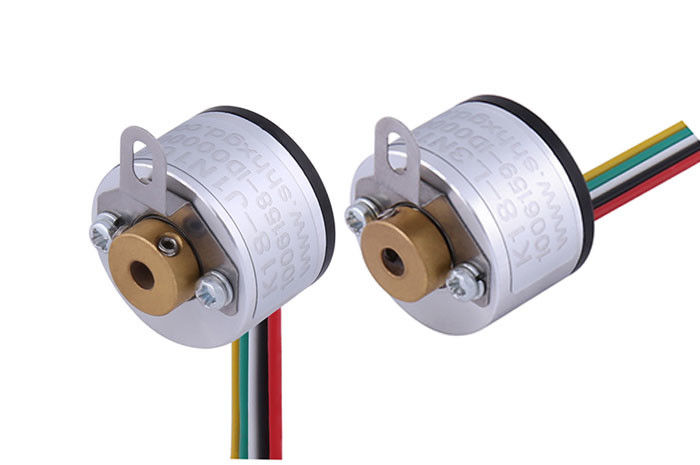

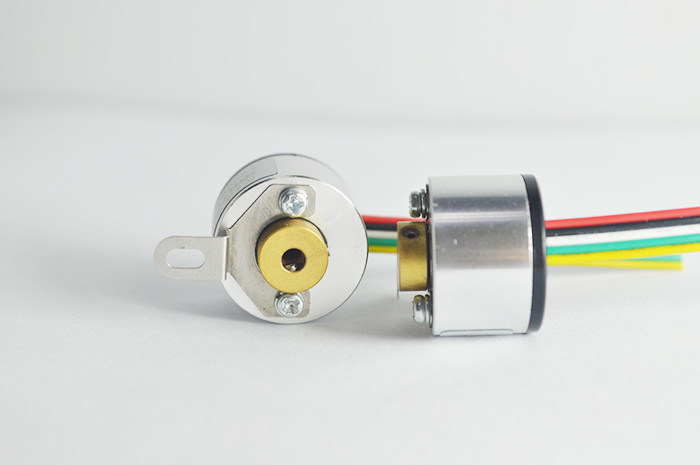

Mini size rotary encoder K18 blind hole encoder external diameter 18mm shaft 2.5mm OC output





Quick introduction for K18 series

Encoder type:Incremental encoder

External diameter:18mm

Thickness:15.3mm

Installation dimension:R11mm, spring plate 18T22

Hollow shaft diameter:2.5mm

Resolution :250;256;360;400;500;512;720;800;1000;1024;1440;1600

Output phase:Phase A,B,Z

Supply voltage:DC5V ; DC8-30V



K18 mini hollow shaft encoder Characteristics

Items Basic parameters
Brand HENGXIANG
Outlet type Cable out from side
  Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 50mA MAX
Top response frequency 100KHZ
Rise/ Fall time 100nsec Max
starting torque less than 5x 10-4 N.m
Intertia moment less than 0.3x 10-6kg.m2
Shaft load Radial 2N; Axial 2N
Top REV 3000r rpm
Environmental temperature Operating:-10 ~+70°;storage:-15 ~+75°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure) 49m/s2 ,three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material aluminum alloy
Cable length 150mm
Certification CE
package Carton box
Net weight About 20g (with package)





SignOC Output Shaft 2.5mm Blind Hole Mini Rotary Encoder K18 0al Circuit of encoder reference to K18 Series encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.



Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· VFFS machine

· Packing machinery

· Capsule filling machine

· Pharmaceutical machine

· VVVF motor

· Drawing machine

· VFD

· Inverter

· Variable frequency driver

· Embroidery machine

· Elevator



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)
