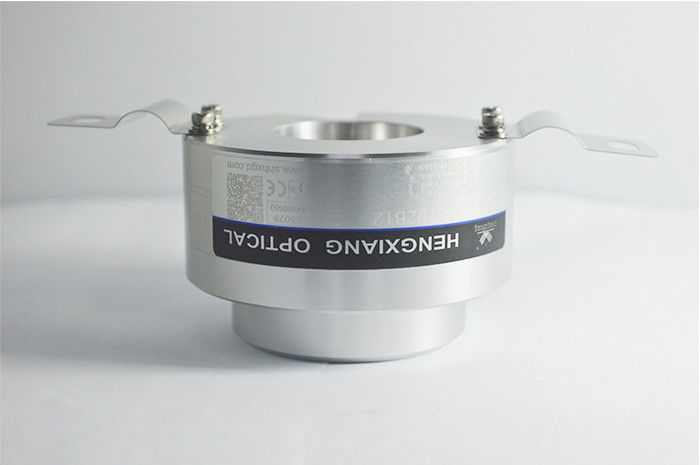

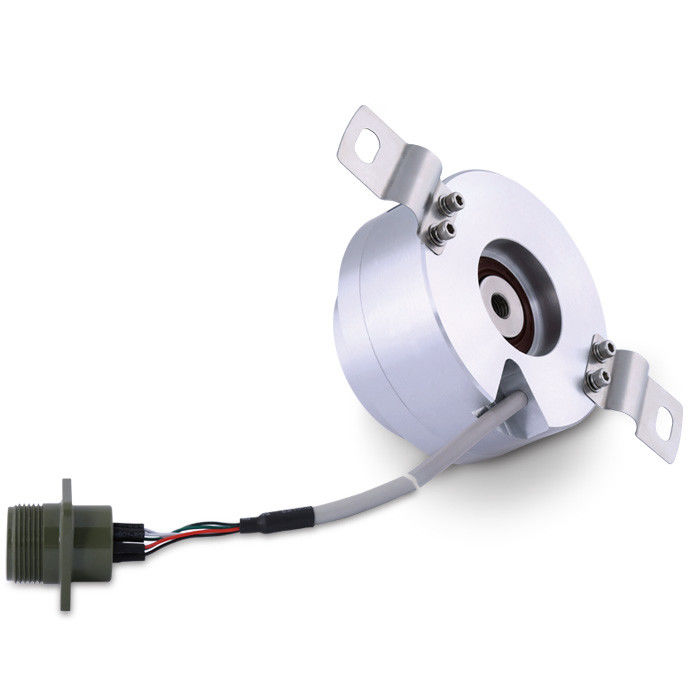

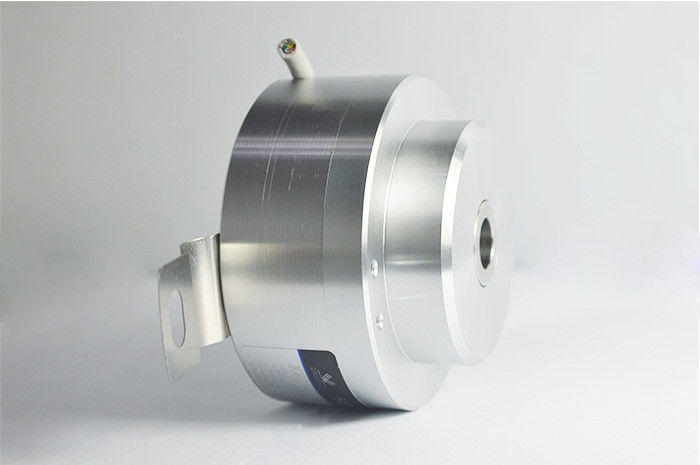

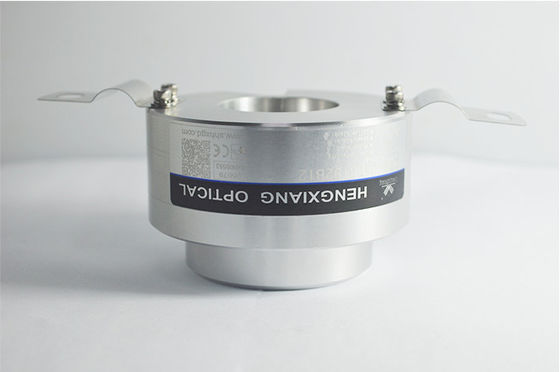

K80 Hollow Shaft Incremental Rotary Encoder For Packing Machinery

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K80
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Supply voltage DC5V ; DC8-30V Cable length 500mm
External diameter 80mm Thickness 50mm
Installation Dimension R60.5mm(spring Plate 76T69) Hollow Shaft Type Through Hole
Hollow Shaft Diameter 105mm; 12mm, Shaft Diameter Can Be Customized. Outlet Type Cable Outlet Only/cable With Socket Outlet
High Light

Hollow Shaft Incremental Rotary Encoder

,

K80 Incremental Rotary Encoder

,

Packing Machinery Hollow Shaft Incremental Encoders

Leave a Message
Product Description

K80 hollow shaft incremental encoder 1800 pulse incremental rotary encoder for packing machinery



K80 series encoder model number to order

( you may choose other model number according to your requirements)

K80-S3F1000B20D

K80-SE3N1024B12

K80-S4E2048B10.5D

K80-S4C2500B12

K80-SE3F3000B12.5

K80-SE3N3600B15D

K80-SE2V4096B20

K80-S2V5000B18D

K80-S6E7200B16

K80-SE6C8192B15

K80-SE3PH1440B18D

K80-S3NH32768B10.5



Product introduction for K80 encoder

Items Basic parameters
Encoder type Incremental encoder
Brand HENGXIANG
External diameter 80mm
Thickness 50mm
Installation dimension R60.5mm(spring plate 76T69)
Hollow shaft type through hole
Hollow shaft diameter 105mm; 12mm, shaft diameter can be customized.
Resolution 1000;1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
7200;8192;10000;14400;16384;28800;32768
Output phase Phase A+,B+,Z+,A-,B-,Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable outlet only
cable with socket outlet
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 20m N.m
Intertia moment less than 25x 10-6kg.m2
Shaft load Radial 50N; Axial 30N

K80 Hollow Shaft Incremental Rotary Encoder For Packing Machinery 0

Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· VFFS machine

· Packing machinery

· Capsule filling machine

· Pharmaceutical machine

· VVVF motor

· VFD

· Inverter

· Variable frequency driver

· Embroidery machine



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.
