Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders

Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders

  • Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders
  • Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders
Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: PGK50
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Incremental Type External Diameter: 50mm
Thickness: 27mm Hollow Shaft Diameter: 10mm;12mm;14mm;15mm(optional)
Resolution: 1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000 Supply Voltage: DC5V; DC8-30V
Consumption Current: 100mA Max; 120mA Max Top Response Frenquency: 100kHZ; 500kHZ; 600kHZ
GND: Not Connected To The Encoder Protection: IP67
High Light:

IP67 Hollow Shaft Incremental Encoders

,

50mm 1024 ppr Encoders

,

servo motor 1024 ppr Encoders

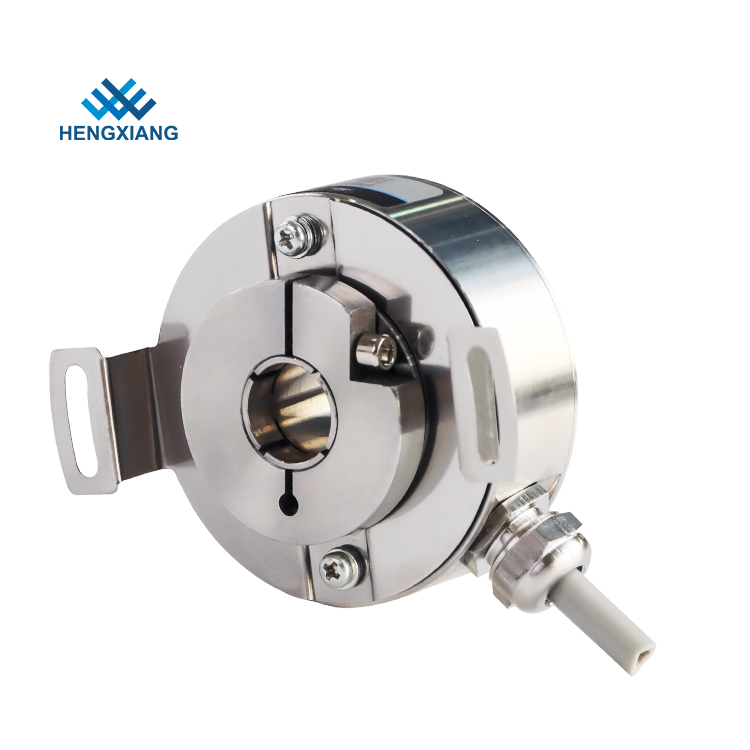

 PGK50 Stainless steel encoder 1024ppr Incremental rotarty encoder protection level IP67 servo motor encoder


Items Basic parameters
Brand HENGXIANG
Encoder type Incremental Type
External diameter 50mm
Thickness 27mm
Hollow shaft type Through shaft
Hollow shaft diameter 10mm;12mm;14mm;15mm(optional)
Resolution 1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase 1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage DC5V; DC8-30V
Outlet type Radial cable
Output mode F=Push-pull; C=TTL(DC5V)
E=HTL(DC8-30V)
Consumption current 100mA Max; 120mA Max
Top response frenquency 100kHZ; 500kHZ; 600kHZ
GND not connected to the encoder
Starting torque Less than 9.8×10-3 N.m
Inertia moment Less than 6.5×10-6 kg.m2
Environmental temperature Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity Operating and storage: 50~85%RH(noncondensing)
Protection IP67
Shell Stainless steel
Certification CE
package Carton box
Net weight About 150g



Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders 0

Stainless Steel Encoder 1024 Ppr IP67 Servo Motor Hollow Shaft Incremental Encoders 1

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
