|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||1Pcs|
|Packaging Details:||each 1 piece was packed into single carton box|
|Delivery Time:||3-5 working days for sample order, 7-15 working days for mass order|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||100K pieces per year|
|Thickness:||18.5mm||Hollow Shaft Diameter:||25mm, 28mm, 30mm|
|Output Phase:||Phase A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-||Resolution:||1024/8, 2048/8, 2500/8, 4096/8, 5000/8, 8192/8, 10000/8|
|Supply Voltage:||DC5V;DC8-30V||Consumption Current:||120mA Max|
|Slew Speed:||≤5000 Rpm||Net Weight:||About 180g|
automation through hole encoder,
66mm through hole encoder,
3 Phase through hole rotary encoder

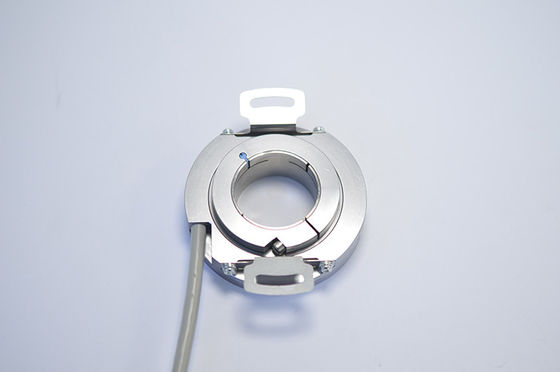

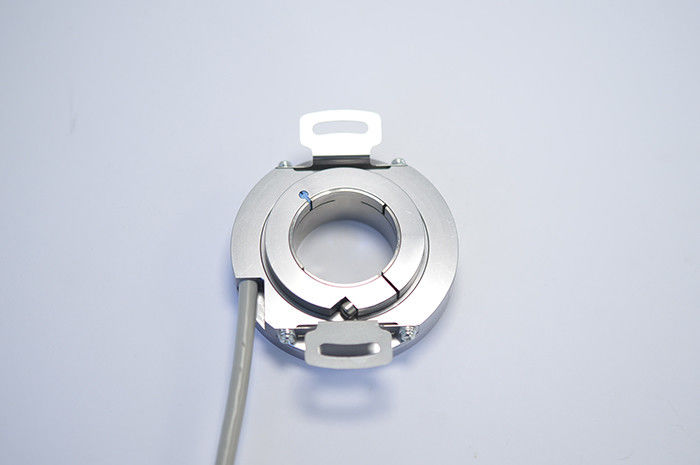

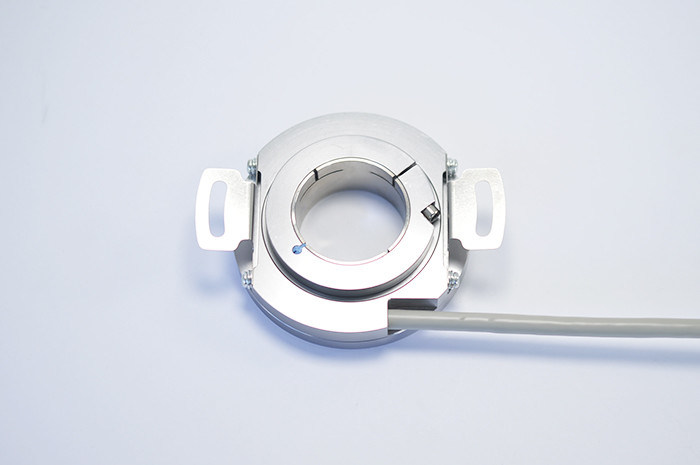

K66 ABZ 3Phase Through Hollow Encoder Incremental Encoder for Office for Automation
Quick introduction of K66 encoder
Hollow shaft diameter: 25mm;28mm,30mm
Hollow shaft type: Through shaft
Resolution : 1024/8, 2048/8, 2500/8, 4096/8, 5000/8, 8192/8, 10000/8
Encoder type: Incremental encoder
Protection grade: IP50
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Please advise the motor speed (RPM) that you actually use
3. If you have any other requirements, please provide detail parameters
K66 incremental encoder Product Information
|Encoder type||Incremental Type|
|Hollow shaft type||Through shaft|
|Hollow shaft diameter||25mm, 28mm, 30mm|
|Resolution||1024/8, 2048/8, 2500/8, 4096/8, 5000/8, 8192/8, 10000/8|
|Output phase||Phase A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-|
|S=TTL(DC5V)Less wiring type|
|Consumption current||120mA Max|
|Top response frenquency||100KHz, 500KHz, 800KHz|
|GND||not connect to encoder, must be effectively connected to GND|
|Slew speed||≤5000 rpm|
|Starting torque||Less than 50×10-3N.m|
|Intertia moment||Less than 70×10-6 kg.m2|
|Shaft load||Radial 40N; Axial 30N|
|Environmental temperature||Operating: -20~+95℃; Storage: -25~+100℃|
|Enviromental humidity||Operating and storage: 35~85%RH(noncondensing)|
|Rise. Fall Time||Less than 1us|
|Shell Material||Aluminium alloy|
|Cable length||1m (standard)|
|Net weight||About 180g|
3-5 working days for sample after full paid
7-15 days for mass production after full paid
Signal Circuit of encoder
1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.
An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.
2. PNP output
The PNP output is an interface based on an output circuit with a PNP transistor.
3. Push-Pull output(HTL)
High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.
“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.
4. TTL RS-422 output
In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.
The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.
At the same time, you could also visit our YOUTUBY page easily.
Most of the encoder series have videos for reference.
