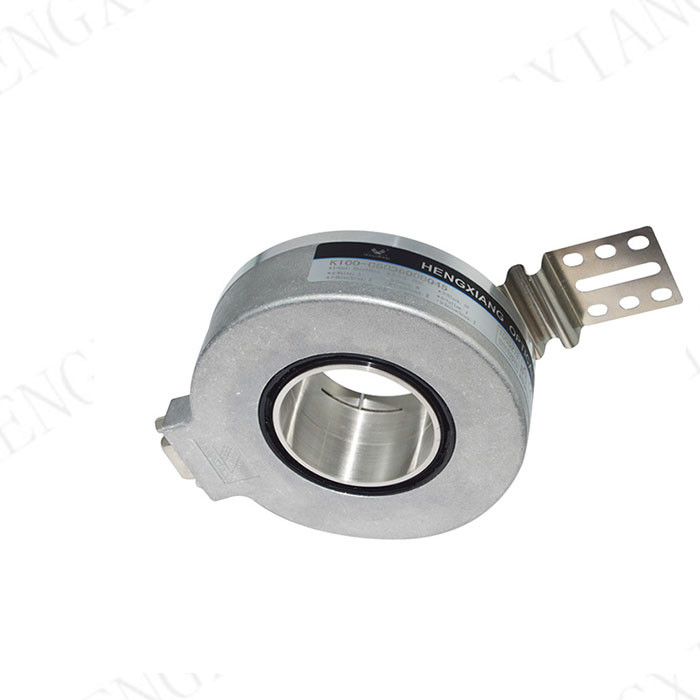

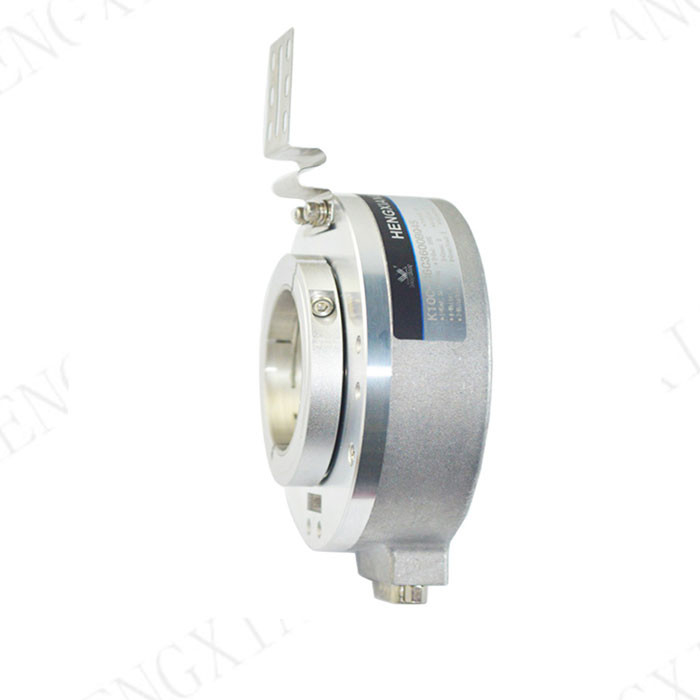

100mm Elevator Photoeletric Hollow Shaft Incremental Encoders

100mm Elevator Photoeletric Hollow Shaft Incremental Encoders

  • 100mm Elevator Photoeletric Hollow Shaft Incremental Encoders
  • 100mm Elevator Photoeletric Hollow Shaft Incremental Encoders
100mm Elevator Photoeletric Hollow Shaft Incremental Encoders
Product Details:
Place of Origin: Shanghai, China
Certification: CE,ISO9001
Model Number: K100
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: Through Hole Rotary Encoder Shaft Diameter: 30mm/35mm/38mm/40mm/42mm/45mm
External diameter: 100mm Resolution: 100ppr- 48000ppr
Intertia Moment: Less Than 100x 10-6kg.m2 Optional Supply Voltage: DC5V & DC8-30V
Load Voltage: ≤DC30V Shaft Load: Radial 90N; Axial 60N
Protection grade: IP50 Shell Material: Die Cast Aluminum
High Light:

IP50 Hollow Shaft Incremental Encoders


100mm Hollow Shaft Incremental Encoders


IP50 incremental shaft encoder

Incremental photoeletric rotary encoder K100 Elevator encoder 100mm outer diameter Through hollow shaft encoder

Selling points of K100 Series Encoder

Installation dimension: R50mm(spring plate 100T90)

Encoder type: Incremental encoder

Thickness: 38mm

Supply voltage: DC5V ; DC8-30V

Outlet type: Socket out from side

Top response frequency: 300KHZ

Hollow shaft type: through hole (clamping ring at prior and clamping ring at rear)

Mark to Space ratio: 45% to 55%

GND: not connect to encoder


K100 rotary encoder Description

Items Basic parameters
Encoder type Incremental encoder
External diameter 100mm
Thickness 38mm
Installation dimension R50mm(spring plate 100T90)
Hollow shaft type through hole (clamping ring at prior and clamping ring at rear)
Hollow shaft diameter 30mm,35mm,38mm;40mm;42mm;45mm;
Resolution 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000;11520;12000;20000;24000;40000;48000;
2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Socket out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V


Related model number of K100 series












Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.


100mm Elevator Photoeletric Hollow Shaft Incremental Encoders 0



Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.


Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
