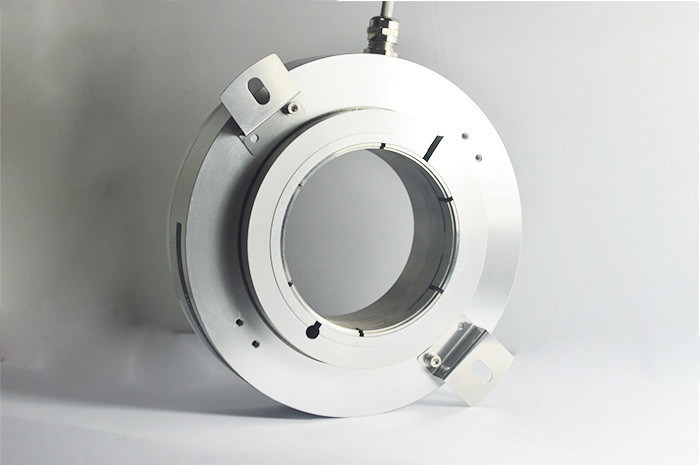

Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder

Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder

  • Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder
  • Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder
  • Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder
Heavy Duty 75mm Hollow Shaft Incremental optical rotary encoder
Product Details:
Place of Origin: Shanghai,China
Certification: CE,ISO9001
Model Number: K158 hollow shaft incremental enc oder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: K158 Hollow Shaft Incremental Encoder External diameter: 158mm
GND: Not Connect To Encoder Installation Dimension: R85mm(spring Plate 158T170)
Resolution : 1024;2048;20000;40000;80000 Supply voltage: DC5V ; DC8-30V
Top Response Frequency: 300KHZ Consumption Current: 100mA MAX
High Light:

Shaft Collar Hollow Shaft Incremental Encoder


75mm Hollow Shaft Incremental Encoders


300KHZ incremental optical rotary encoder

K158 large size photoelectric encoder hollow shaft 82mm incremental encoder HTL output


Model Number of K158 encoder for reference


K158-T6C2048 BQ75

K158-T4E20000 BQ78

K158-T6C40000 BQ80

K158-T4E80000 BQ82

K158-T6C1024 BQ70

K158-T4E2048 BQ75

K158-T6C20000 BQ78

K158-T4E40000 BQ80

K158-T6C80000 BQ82


Product Description for K158 rotary encoder


Items Basic parameters
Encoder type Incremental encoder
External diameter 158mm
Thickness 43mm
Installation dimension R85mm(spring plate 158T170)
Hollow shaft type through hole (clamping ring at prior)
Hollow shaft diameter 70mm,75mm,78mm;80mm;82mm
Resolution 1024;2048;20000;40000;80000
Output phase Phase A+,B+,Z+,A-,B-,Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Output mode Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Insulation resistance 10MΩ
GND not connect to encoder
starting torque less than 400 x 10-3 N.m
Intertia moment less than 350x 10-6kg.m2
Shaft load Radial 90N; Axial 60N
Top REV 3000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1960m/s2 (200g),11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
