Ultra Thin Bearingless Hollow Shaft Encoder Z58 Incremental Hole Max 24mm

Ultra Thin Bearingless Hollow Shaft Encoder Z58 Incremental Hole Max 24mm

  • High Light

    Ultra Thin Optical Shaft Encoder

    ,

    Bearingless Incremental Shaft Encoder

    ,

    Incremental Hole Rotary Shaft Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Bearingless Encoder
  • External diameter
    58mm
  • Thickness
    15mm
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14mm;15mm;19mm;20mm;24mm
  • Resolution
    1000-10000/8/10/16
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Outlet Type
    Cable Out From Side
  • Output Mode
    Line Drive (26LS31) TTL;line Drive(DC8-30V) HTL
  • Certification
    CE
  • Net weight
    About 85g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Z58
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Ultra Thin Bearingless Hollow Shaft Encoder Z58 Incremental Hole Max 24mm

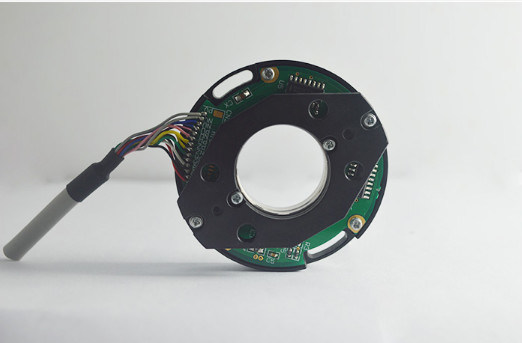

Z58 Incremental hole max 24mm shaft thickness 15mm monolithic structure bearingless ultra thin


※ I. Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

※ II. Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.



※ III. Company History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.


※ IV. FAQ

Q1: What are our strengths?

A1:

★Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing institutions.  ★Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

★Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

★Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.


※ V. Delivery date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time

* Product Basis information

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
5000/16;10000/8;10000/10;10000/16
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 85g (with package)
