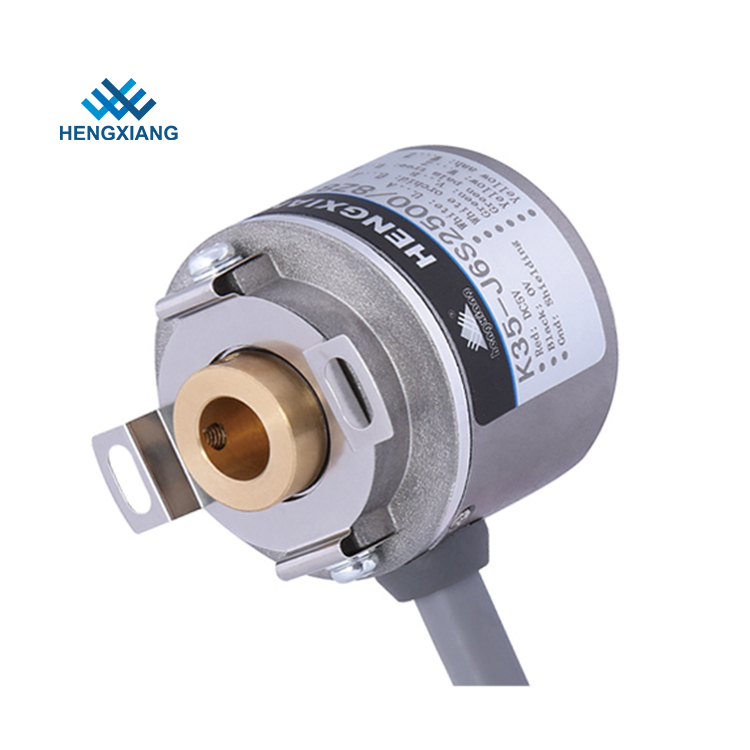

5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50

5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50

Products - Hollow Shaft Incremental Encoders
  • High Light

    Push Pull IP50 Optical Rotary Encoder

    ,

    5000ppr Optical Incremental Rotary Encoder

    ,

    Optical Hollow Shaft Incremental Encoders

  • External Diameter
    35mm
  • Installation Dimension
    29mm/40mm
  • Shaft Type
    Through/blind Hole 6mm/8mm/10mm
  • Resolution
    50-5000 Ppr; 1000-5000/4/6/8
  • Output phase
    A/AB/ABZ/±AB/±ABZ/±ABZUVW
  • Outlet Type
    Radial Cable
  • Otput Type
    OC(NPN/PNP)Voltage/Push-pull/TTL/HTL
  • Protection Grade
    IP50
  • Supply Voltage
    DC5V; DC8-30V
  • Application
    Servo Motor/textile Industry/packing Machinery/etc.,
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Some K35 encoder part number
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50

  • 5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50
  • 5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50
  • 5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50
  • 5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50
Get Price Contact Now

5000ppr 8mm hollow shaft HTL TTL optical incremental rotary encoder push pull IP50



1. Feature: Incremental encoder, hollow shaft rotary encoder,



2. Application: Servo motor, textile industry and other industrial automations.



3. Important parameters: Through/blind hole, IP50, UVW signal



Application:

Incremental encoder is mainly used in CNC machine tools and machinery accessories, robots, automatic assembly machines, automatic production lines, elevators, textile machinery, sewing machinery, packaging machinery (fixed length), printing machinery (synchronization), woodworking machinery, plastic machinery (fixed number), rubber and plastic machinery, mapping instruments, goniometers, healer radar, etc.





Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
35mm
Thickness
35mm
Installation dimension
40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type
blind hole
Hollow shaft diameter
6mm,8mm;10mm
Resolution
30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;
2048;2500; 4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；
2048/4；2048/6;2048/8；2500/4；2500/6；
2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage
DC5V & DC8--30V
Outlettype
Cable out from side
Output mode
NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade
IP50
Cable length
500mm
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 5.9x 10-3 N.m
Intertia moment
less than 1x 10-6kg.m2
Shaft load
Radial 30N; Axial 20N
Top REV
5000RPM
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material
Dia cast aluminium
Certification
CE
package
Carton box
Net weight
About 100g (with package)



Products Description
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 0



Model Selection Guide
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 1

SRelated K35 encoder part number

K35-J12C1000/4

K35-J3V1024

K35-J2F2048

K35-J6C2500

K35-J12C2500/8

K35-J12E2500/6

K35-J4E1200

K35-J3V720

K35-J12C1024/8 DC5V

K35-J3NH1000



Manufacturing Dimensions
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 2
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 3

Product Usage
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 4
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 5
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 6
5000ppr 8mm Hollow Shaft HTL TTL Optical Incremental Rotary Encoder Push Pull IP50 7
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
