Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial

Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial

Products - Hollow Shaft Incremental Encoders
  • High Light

    Metal Hollow Shaft Rotary Encoder

    ,

    Industrial Hollow Shaft Rotary Encoder

    ,

    PN58 Hollow Incremental Shaft Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Incremental Type
  • External diameter
    58mm
  • Hollow Shaft Diameter
    Through Shaft 14mm;15mm;19mm;24mm
  • Resolution
    1024/8;/10;/16; 2048/8;/10;/16; 2500/8;/10;/16; 4096/8;/10;/16; 5000/8;/10;/16; 8192;/8;/10;/16; 10000/8;/10;/16
  • Output phase
    3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less Wiring Type A+B+Z Delay U+V+W; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
  • Outlet Type
    Radial Connector; Radial Cable
  • Output Mode
    N=OC(DC5V&8-30V); C=TTL(DC5V);E=HTL(DC8-30V); S=TTL(DC5V)(Less Wiring Type)
  • Protection
    IP50
  • Net weight
    About 90g
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PN58
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial

  • Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial
  • Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial
  • Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial
Get Price Contact Now

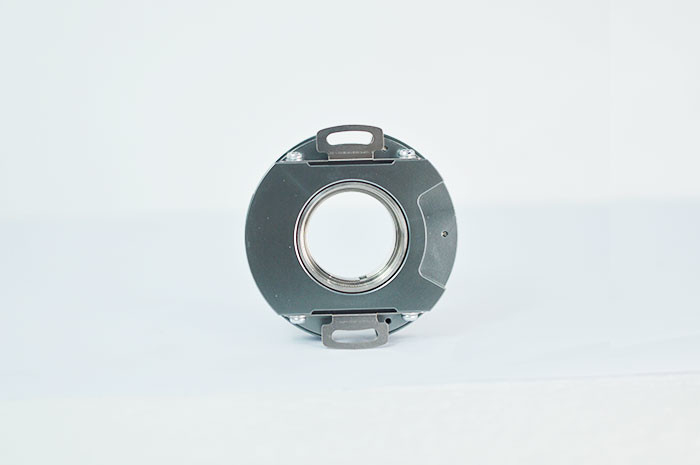

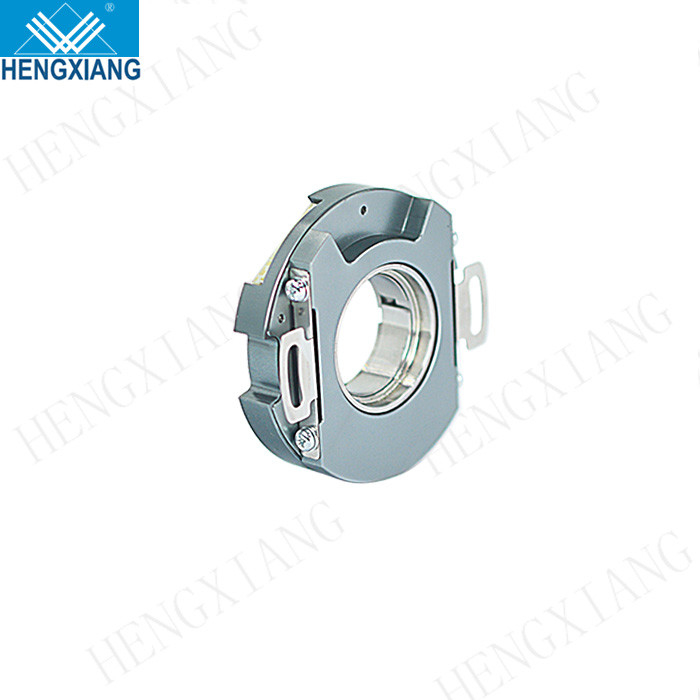

PN58 incremental hollow shaft rotary encoder with up to 10000 ppr. in 24mm metal shaft suitable for industrial use



Overview
Quick Details
Model Number:
PN58-series
Type:
Mechanical Encoder
Place of Origin:
SHG
Brand Name:
HENGXIANG
Usage:
OTHER
Theory:
OTHER
Output:
OTHER
Description:
PN58 Incremental rotary encoder
Brand:
HENGXIANG
Encoder type:
Incremental Type
External diameter:
58mm
Thickness:
14mm
Hollow shaft diameter:
14mm;15mm;19mm;24mm
Supply voltage:
DC5V; DC8-30V
Outlet type:
Radial connector; Radial cable
Consumption current:
120mA Max
Top response frenquency:
100kHZ; 500kHZ; 800kHZ
Net weight:
About 90g
Supply Ability
Supply Ability
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box for PN58 rotary encoder
Port
Shanghai, China
Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial 0

  •

  • Why choose us?

--HENGXIANG brand--The trustworthy partner
--CE approved--advantaged product quality;
--Fast delivery--strong stock product ability;
--Factory directly provide a competitive price;
--One-stop service--for your efficient purchasing experience;
--OEM design accepted--customized design, your own brand accepted
Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial 1
Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial 2



PN58 Series Rotary encoder Parameters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
58mm
Thickness
14mm
Hollow shaft type
Through shaft
Hollow shaft diameter
14mm;15mm;19mm;24mm
Resolution
1024/8;/10;/16; 2048/8;/10;/16; 2500/8;/10;/16; 4096/8;/10;/16; 5000/8;/10;/16; 8192;/8;/10;/16; 10000/8;/10;/16
Output phase
3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less wiring type A+B+Z Delay U+V+W; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage
DC5V; DC8-30V
Outlet type
Radial connector; Radial cable
Output mode
N=OC(DC5V&8-30V); C=TTL(DC5V)
E=HTL(DC8-30V); S=TTL(DC5V)(Less wiring type)
Consumption current
120mA Max
Top response frenquency
100kHZ; 500kHZ; 800kHZ
GND
not connected to the encoder, must be effectively connected to GND
Starting torque
Less than 20×10-3 N.m
Inertia moment
Less than 30×10-6 kg.m2
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Enviromental humidity
Operating and storage: 35~85%RH(noncondensing)
Protection
IP50
Material
Aluminium alloy
Certification
CE
package
Carton box
Net weight
About 90g
Product Usage
Metal PN58 Incremental Hollow Shaft Rotary Encoder 10000 Ppr. shaft max 24mm For Industrial 3

  •

    • Product usage introduction



-Intelligent Fertilizer
--Lifting and metallurgical --three-phase asynchronous motors
-Solar air -conditioner
-Armature rotor test system
-High-speed cutting machine
Automatic rut -tester
-Intelligent equipment
Petroleum -machinery and equipment
-Electrical Equipment
-Invertery
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
