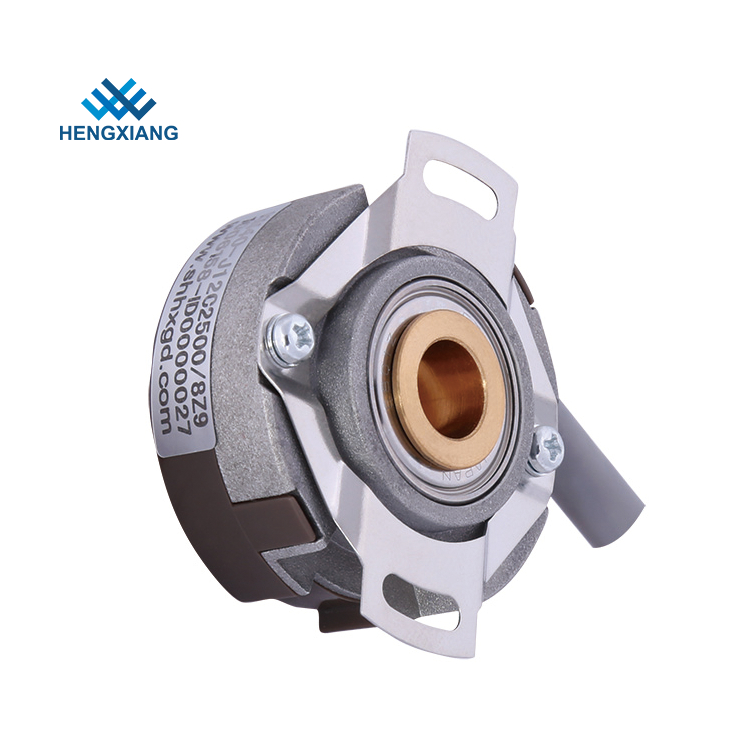

KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number KN40
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Encoder Type Incremental Encoder External diameter 40mm
Installation Dimension R17mm, R20mm;R23mm Hollow Shaft Diameter Taper Hole,solid Taper Shaft 6mm;8mm;9mm;9.52mm;10mm
Resolution  1000-20000 Ppr; 1000-5000/4/6/8 Ppr Output phase Phase ABZUVW
Supply voltage DC5V & 8-30V Outlet Type Cable Out From Side
Output mode Open Collector Circuit/Voltage/Push-pull/Line Driver Protection grade IP40
High Light

UVW Signal Taper Shaft Encoder

,

Taper Dc Motor Encoder

,

15 Cord Wires Dc Motor Encoder

Leave a Message
Product Description

KN40 taper shaft 8mm DC5V UVW signal 1000ppr TTL 15 cord wires dc motor encoder QR145-05/05-10



Feature:

Small size, slim type, multiple circuit outputs



Application:

Servo motor, textile industry, packing machinery, robot, industrial automation control such as small instruments.



Important paremeters:

Thickness 24mm,

Resolution up to 20000ppr



Basic parameters:

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 40mm
Thickness 20mm
Installation dimension R17mm, R20mm;R23mm
Hollow shaft type blind hole; through hole, taper hole,solid taper shaft
Solid shaft diameter 10mm (taper shape)
Hollow shaft diameter 6mm;8mm;9mm;9.52mm;10mm
Resolution 1000;1024;2048;2500;4096;5000;8192;10000;16384;20000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frenquency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+100°C;storage:-25 ~+100°C
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material Dia cast aluminium
Certification CE
package Carton box
Net weight About 90g (with package)



KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 0
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 1



Model Selection Guide
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 2



Manufacturing Dimensions
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 3
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 4
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 5

Product packaging
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 6
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 7
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 8
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 9
Product Usage
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 10
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 11
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 12
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 13
KN40 Taper Shaft 8mm DC5V UVW Signal 1000ppr TTL 15 Cord Wires Dc Motor Encoder QR145-05/05-10 14
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
