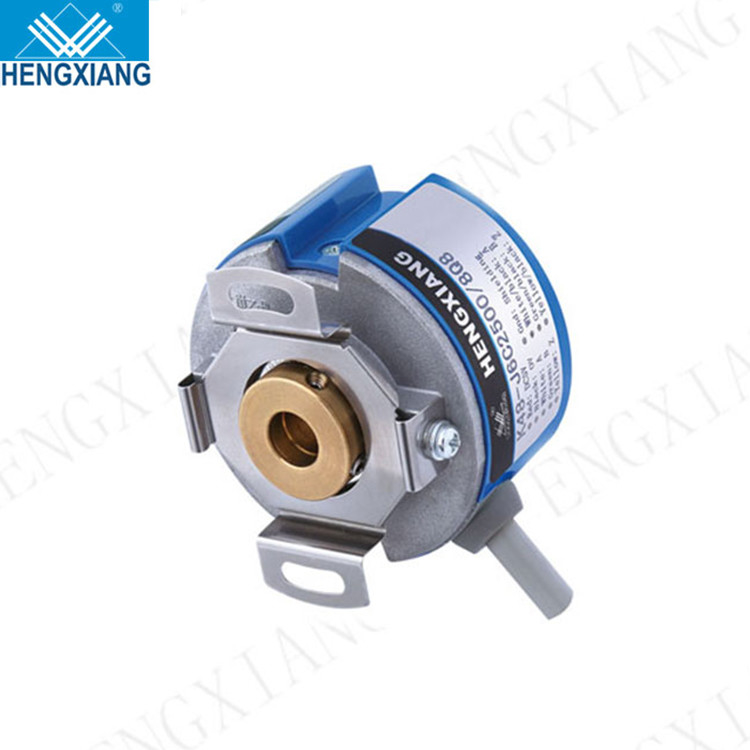

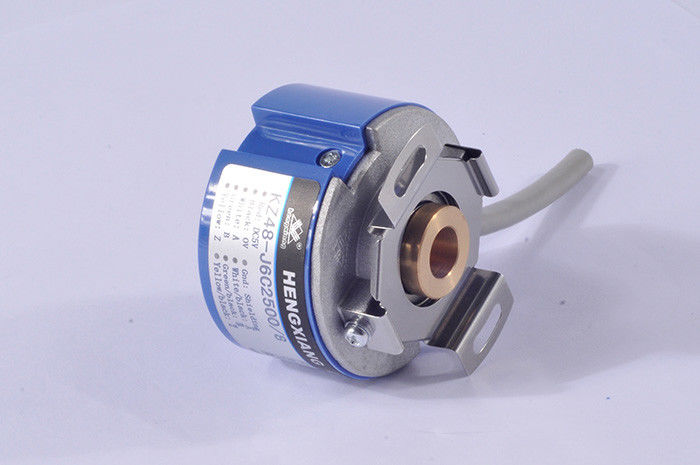

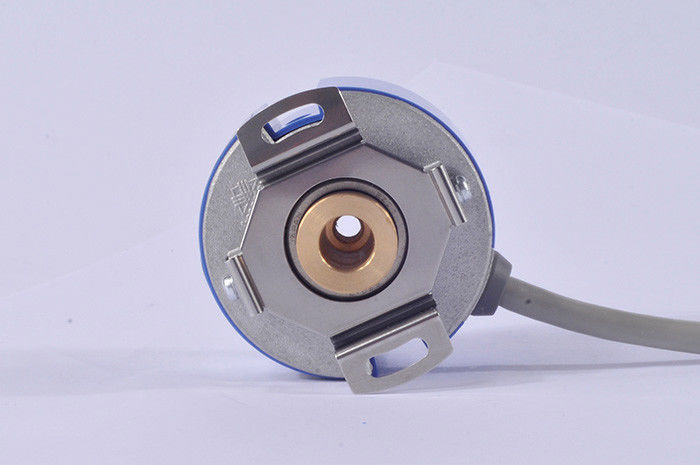

2500 Pulse 4 Poles KZ48 Rotary Encoder Tapered Shaft A-ZKD-12-250BM/2P-G05L-C DC Servo Motor Inverter Motors
-
High Light
Inverter Motor Hollow Shaft Rotary Encoder
,Tapered Hollow Shaft Rotary Encoder
,Incremental Rotary Encoder 4 Poles
-
Encoder TypeIncremental Encoder
-
External diameter48mm
-
Installation Dimension40mm(spring Plate 48T40)
-
Hollow Shaft DiameterHollow Conical Shaft 9mm( Taper 1:10)
-
Resolution50-10000 Ppr; 1000-10000/4/6/8
-
Output phasePhase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
-
Outlet TypeCable Out From Side
-
Output modeOpen Collector Circuit/Voltage/Push-pull/Line Driver
-
Protection gradeIP40
-
CertificationCE
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberKZ48
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
2500 Pulse 4 Poles KZ48 Rotary Encoder Tapered Shaft A-ZKD-12-250BM/2P-G05L-C DC Servo Motor Inverter Motors
2500 pulse 4 poles KZ48 rotary encoder tapered shaft A-ZKD-12-250BM/2P-G05L-C DC servo motor inverter motors
same equivalent product of A-ZKD-12-250BM/2P-G05L-C.
with the same dimension and parameters.
--hollow shaft, cone type 9mm, 1:10
--external diameter 48mm
--2500 ppr ,ABZUVW,15 wires in total
--line driver circuit (TTL, HTL, or RS422 )
--4 poles
-DC 5 V
Basic Parameters
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 48mm |
| Thickness | 34mm |
| Installation dimension | 40mm(spring plate 48T40) |
| Hollow shaft type | hollow conical shaft |
| Hollow shaft diameter | 9mm( taper 1:10) |
| Resolution | 50;60;100;200;256;300;360;500;512;600;720;1000; 1024;1200;2000;2048;2500;3600;4096;5000;8192;10000 |
| 1000-10000/4/6/8 | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Outlet type | Cable out from side |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| TTL(DC5V) phase ABZ are back of phase UVW | |
| Protection grade | IP40 |
| Cable length | 500mm |
| Consumption current | 100mA MAX |
| Top response frenquency | 100KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 9.8x 10-3 N.m |
| Intertia moment | less than 6.5x 10-6kg.m2 |
| Shaft load | Radial 50N; Axial 30N |
| Top REV | 5000RPM |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Environmental temperature | Operating:-20 ～+85°；storage:-25 ～+90° |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Material | Dia cast aluminium |
| Certification | CE |
