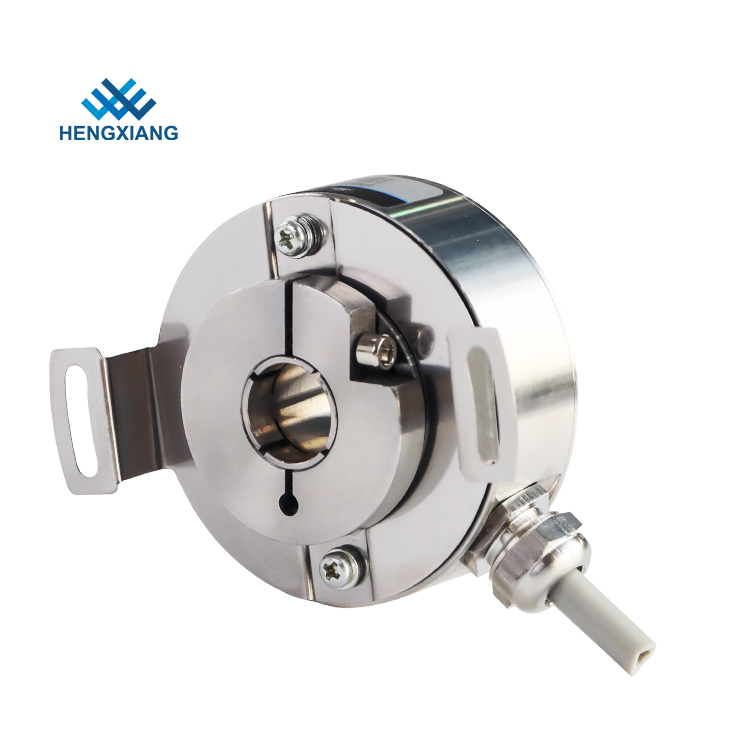

IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection

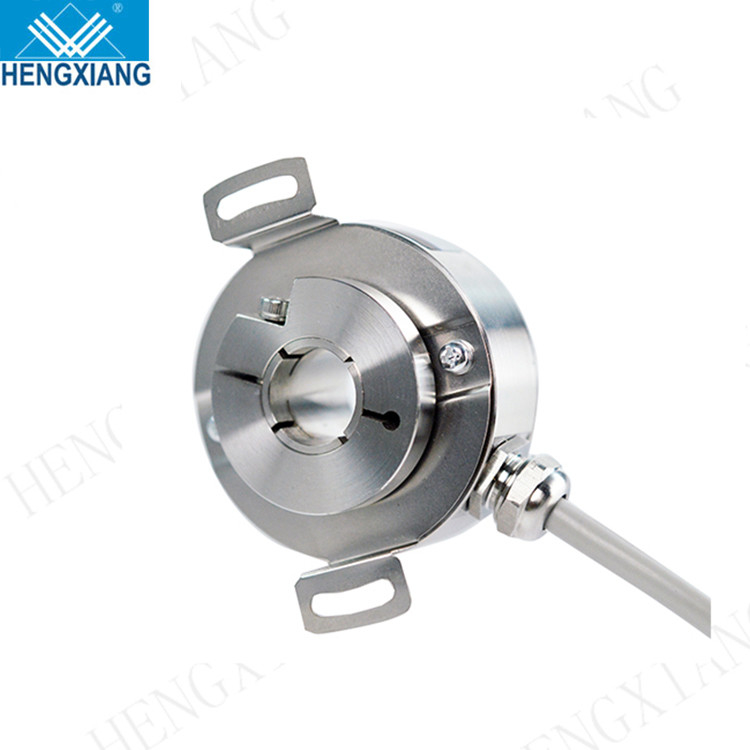

IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection

  • High Light

    Hollow Shaft Incremental Rotary Encoder IP65

    ,

    Stainless Steel Hollow Shaft Incremental Encoders

    ,

    High Protection Hollow Shaft Rotary Encoder

  • Encoder Type
    Incremental Type
  • External diameter
    50mm
  • Hollow Shaft Type
    Through Shaft
  • Hollow Shaft Diameter
    10mm;12mm;14mm;15mm(optional)
  • Resolution
    1000-10000ppr; 1000-5000/6/8ppr
  • Output phase
    ±ABZUVW
  • Outlet Type
    Radial Cable
  • Output Mode
    Push-pull; TTL; HTL
  • Protection
    IP67
  • Certification
    CE
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PGK50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection

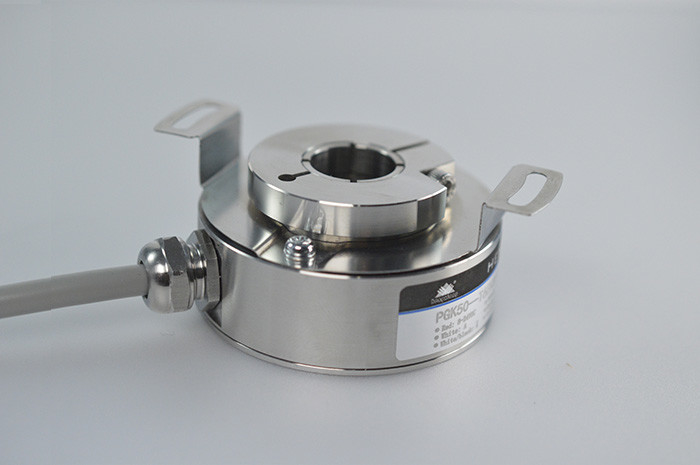

Staninless steel high protection IP65 hollow shaft incremental rotary encoder

Feature: Incremental encoder 50mm external diamter, through hole/ blind hole avaliable, UVW signal.

Application: Motor, CNC, automation industry, assembly line, etc.

Important parameters: max 10000ppr& 5000/8ppr, IP65 high protection(water proof, dust proof), Stainless steel, differential signal( TTL/HTL).

Product Paramenters:

Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
50mm
Thickness
27mm
Hollow shaft type
Through shaft
Hollow shaft diameter
10mm;12mm;14mm;15mm(optional)
Resolution
1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase
1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage
DC5V; DC8-30V
Outlet type
Radial cable
Output mode
F=Push-pull; C=TTL(DC5V)
E=HTL(DC8-30V)
Consumption current
100mA Max; 120mA Max
Top response frenquency
100kHZ; 500kHZ; 600kHZ
GND
not connected to the encoder
Starting torque
Less than 9.8×10-3 N.m
Inertia moment
Less than 6.5×10-6 kg.m2
Environmental temperature
Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity
Operating and storage: 50~85%RH(noncondensing)
Protection
IP67
Shell
Stainless steel
Certification
CE
package
Carton box
Net weight
About 150g


IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 0
Model Selection Guide:
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 1



Manufacturing Dimensions:IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 2

Product packaging:
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 3
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 4
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 5
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 6
Product Usage
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 7
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 8
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 9
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 10
IP65 Hollow Shaft Incremental Rotary Encoder Stainless Steel High Protection 11
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
