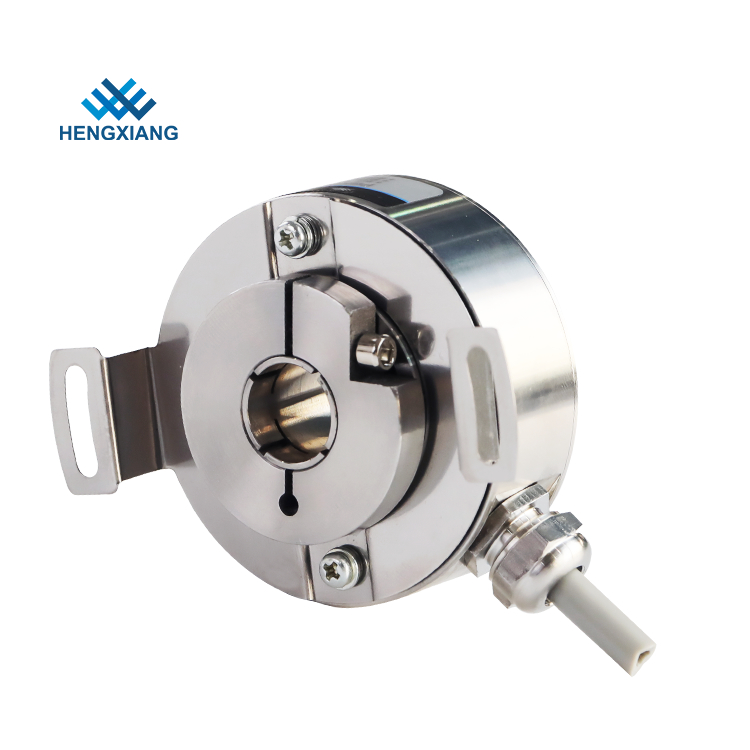

IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor

IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor

Products - Hollow Shaft Incremental Encoders
  • High Light

    UVW Hollow Shaft Rotary Encoder

    ,

    IP67 Hollow Shaft Rotary Encoder

    ,

    Motor Hollow Shaft Incremental Encoders

  • External diameter
    50mm
  • Encoder Type
    Through Shaft Incremental Encoder
  • Hollow Shaft Diameter
    10mm;12mm;14mm;15mm
  • Resolution
    1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
  • Output phase
    4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
  • Outlet Type
    Radial Cable
  • Output Mode
    F=Push-pull; C=TTL(DC5V)；E=HTL(DC8-30V)
  • Protection
    IP67
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PGK50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor

  • IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor
  • IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor
  • IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor
  • IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor
Get Price Contact Now
IP67 2048 ppr UVW signal high precision hollow shaft rotary encoder for motor


1. Feature: Through shaft incremental encoder.



2. Application: Motor, CNC and other industrial automations.



3. Important parameters: IP67 stainless steel water-proof& dust-proof, UVW signal encoder, Ultra-thin, pole encoder.




Basic Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
50mm
Thickness
27mm
Hollow shaft type
Through shaft
Hollow shaft diameter
10mm;12mm;14mm;15mm(optional)
Resolution
1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase
1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage
DC5V; DC8-30V
Outlet type
Radial cable
Output mode
F=Push-pull; C=TTL(DC5V)
E=HTL(DC8-30V)
Consumption current
100mA Max; 120mA Max
Top response frenquency
100kHZ; 500kHZ; 600kHZ
GND
not connected to the encoder
Starting torque
Less than 9.8×10-3 N.m
Inertia moment
Less than 6.5×10-6 kg.m2
Environmental temperature
Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity
Operating and storage: 50~85%RH(noncondensing)
Protection
IP67
Shell
Stainless steel
Certification
CE
package
Carton box
Net weight
About 150g



Model Selection Guide
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 0



Manufacturing Dimensions
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 1

Product packaging
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 2
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 3
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 4
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 5
Product Usage
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 6
About Factory
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 7
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 8
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 9
IP67 2048 Ppr UVW Signal High Precision Hollow Shaft Rotary Encoder For Motor 10
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
