KN40 Thickness 20mm Custom Encoder , Through Hole Encoder Shaft 9.52 Mm

  • KN40 Thickness 20mm Custom Encoder , Through Hole Encoder Shaft 9.52 Mm
  • KN40 Thickness 20mm Custom Encoder , Through Hole Encoder Shaft 9.52 Mm
Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number KN40 servo motor encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Product Name Through Hole Encoder Thickness 20mm
Protection grade IP40 External diameter 40mm
Optional Supply Voltage DC5V & DC8-30V Slew Speed 5000RPM
Installation Dimension R17mm, R20mm;R23mm Weight About 90g (with Package)
High Light

optical motor shaft encoders

,

dc motor shaft encoder
Leave a Message
Product Description

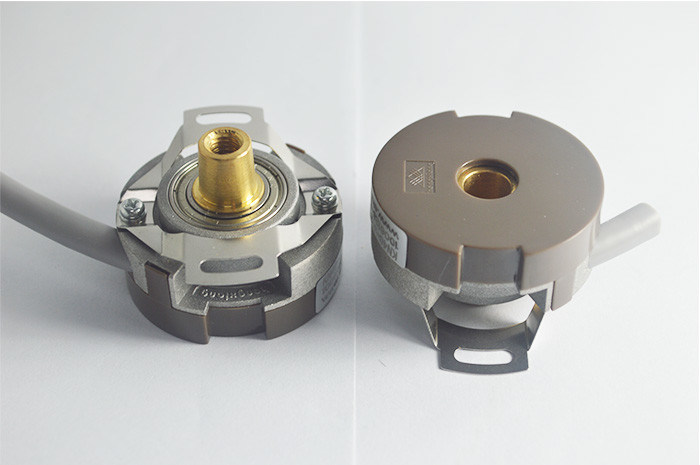

Through hole rotary encoder KN40 thickness 20mm shaft 9.52 mm customizable encoder



Part number of KN40 Encoder Reference

KN40-J6C1024B6

KN40-J6E2048B8

KN40-J6C4096B9.52

KN40-J6E5000Q6

KN40-J6C8192Q8

KN40-J12C1000/6Q10

KN40-J12E5000/8Z9

KN40-J12C4096/6S10

KN40-J12E2500/4B6

KN40-J12C2048/8B8

KN40-J12E1024/6B9.52

KN40-J12C1000/4B10



KN40 Series encoder Characteristics

Brand HENGXIANG
Encoder type Incremental encoder
External diameter 40mm
Thickness 20mm
Installation dimension R17mm, R20mm;R23mm
Hollow shaft type blind hole; through hole, taper hole,solid taper shaft
Solid shaft diameter 10mm (taper shape)
Hollow shaft diameter 6mm;8mm;9mm;9.52mm;10mm
Resolution 1024;2048;2500;3600;5000;7200;10000;14400
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed 5000RPM



KN40 Thickness 20mm Custom Encoder , Through Hole Encoder Shaft 9.52 Mm 0



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Questions you may like to know before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.
