Hollow Shaft Servo Rotary Encoder , Cnc Rotary Encoder Thickness 39mm

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K52 quadrature shaft encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Installation Dimension R27.5mm(spring Plate 50T55) Product Name Hollow Shaft Encoder
External diameter 52mm Allowable Ripple ≤3%rms
Mark To Space Ratio 45% To 55% Resolution 1000PPR-23040PPR
Supply voltage DC5V ; DC8-30V Certification CE,ISO9001
High Light

optical motor shaft encoders

,

dc motor shaft encoder

Leave a Message
Product Description

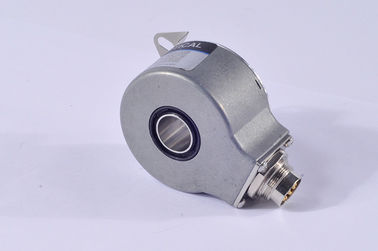

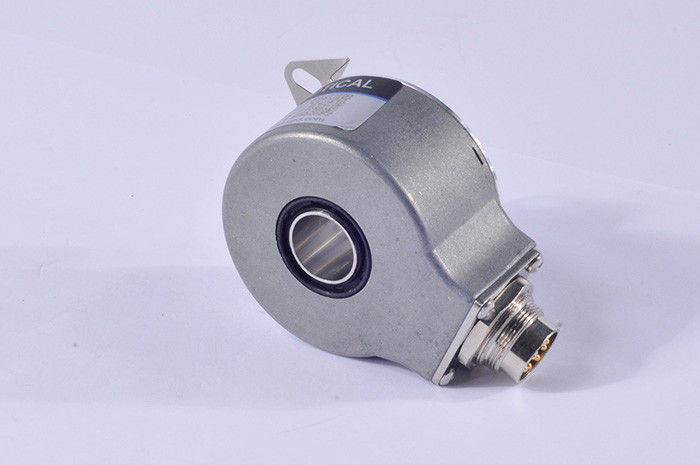

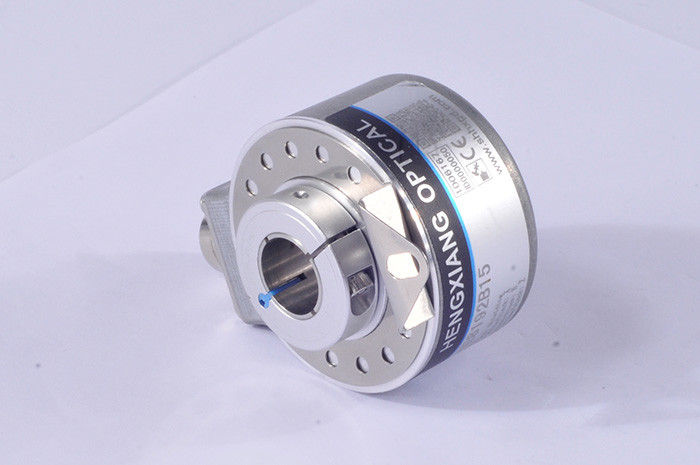

Hollow shaft rotary encoder K52 industrial encoder shaft 14mm thickness 39mm for motor



Our Service

  • Quick response once received customer’s quotation query
  • Professional engineer team, to solve your problems at any time
  • Strictly inspection before shipment
  • Various encoder models to be selected
  • Short lead time
  • High quality standard



Product Information of K52 Series

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 39mm
Installation dimension R27.5mm(spring plate 50T55)
Hollow shaft type through hole or blind hole
Hollow shaft diameter 8mm,10mm,12mm;14mm;15mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000;11520;16384;20000;23040
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
Socket out from back
Cable out from back with socket
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 9.8 x 10-3 N.m
Intertia moment less than 6.5x 10-6kg.m2
Shaft load Radial 50N; Axial 30N



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Hollow Shaft Servo Rotary Encoder , Cnc Rotary Encoder Thickness 39mm 0



K52 Series Encoder Part Number

K52-TE12S1000/4 B15

K52-Q12C1024/4B14

K52-TE12S1000/6B12

K52-T12L1000/8B10

K52-Q12E1024/4B8

K52-TE12C1024/6Q14

K52-T12L2048/8Q10

K52-TE12E4096/4Q8

K52-Q12C4096/8B15



More information

If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
